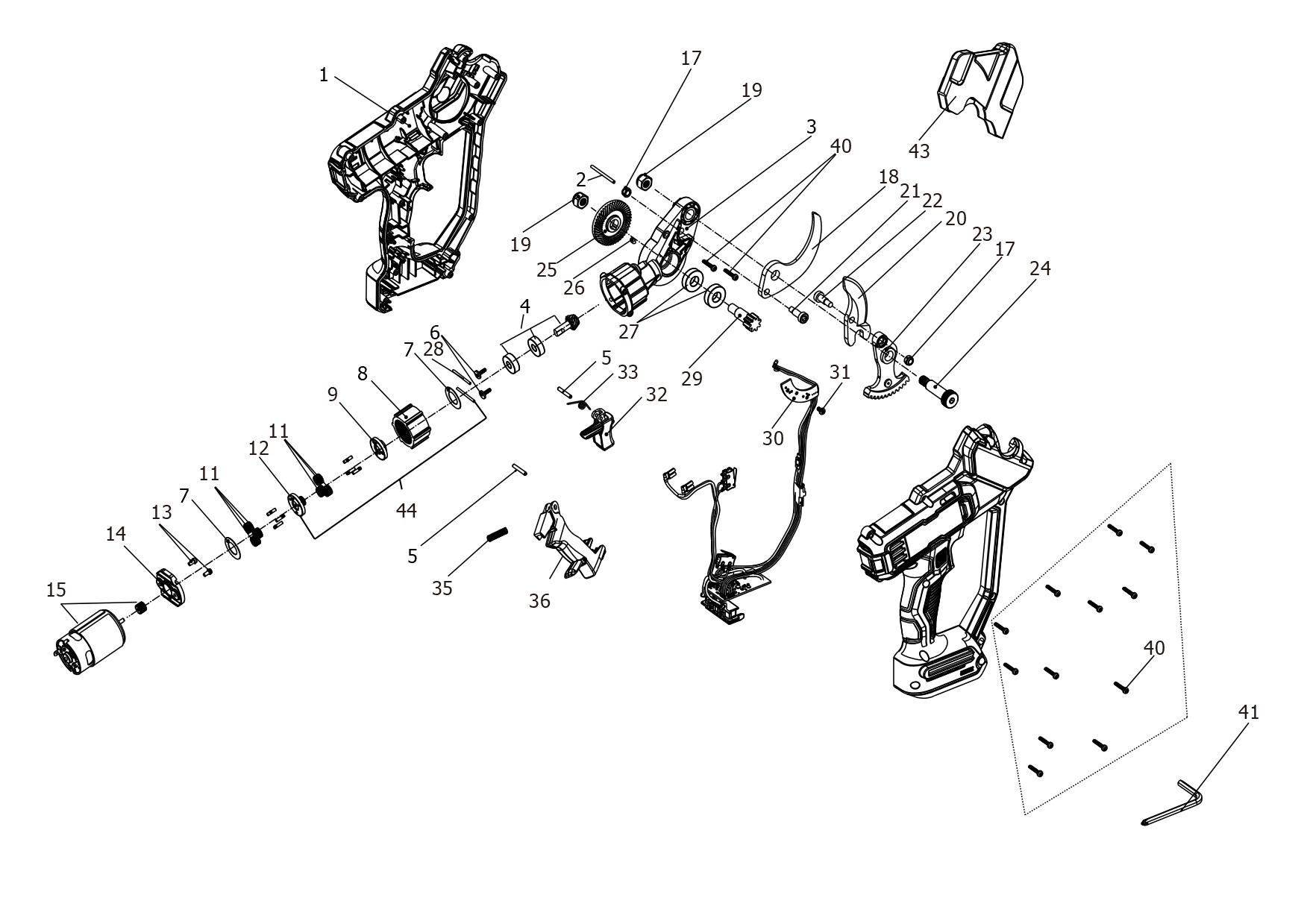

DEWALT PRUNER (Type 1)
SKU Produs: DCMPP568N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | NA070509 | 1 | PIN | 4,57 Lei | |
| 3 | N922837 | 1 | GEARCASE | 70,39 Lei | |
| 4 | NA152853 | 1 | BEARING SA | 57,81 Lei | |
| 5 | NA023381 | 2 | PIVOT SHAFT | 4,57 Lei | |
| 6 | N118088 | 2 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 7 | N930006 | 2 | PLATE | 4,57 Lei | |
| 8 | N928174 | 1 | Gear | 13,85 Lei | |
| 9 | N936784 | 1 | CARRIER SA | 7,37 Lei | |
| 11 | N928176 | 6 | Gear | 4,57 Lei | |
| 12 | N928161 | 1 | CARRIER SA | 7,37 Lei | |
| 13 | 90566914 | 2 | SCREW | 4,57 Lei | |
| 14 | N928971 | 1 | ADAPTOR | 4,57 Lei | |
| 15 | NA147845 | 1 | MOTOR & PINION | 130,35 Lei | |
| 18 | NA044629 | 1 | BLADE | 120,82 Lei | |
| 19 | 330021-02 | 2 | Stop Nut M8 | 4,57 Lei | |
| 20 | N920015 | 1 | BLADE | 106,98 Lei | |
| 21 | NA045114 | 1 | BOLT | 7,37 Lei | |
| 22 | NA021542 | 1 | BOLT | 10,29 Lei | |
| 23 | NA044109 | 1 | Gear | 120,82 Lei | |
| 24 | NA010647 | 1 | BOLT | 15,12 Lei | |
| 25 | N927501 | 1 | BEVEL GEAR | 37,73 Lei | |
| 26 | NA018769 | 1 | KEY | 4,57 Lei | |
| 27 | 330003-38 | 2 | BEARING | 52,22 Lei | |
| 28 | N030622 | 2 | PIN | 4,57 Lei | |
| 29 | N927926 | 1 | PINION | 30,87 Lei | |
| 30 | NA003631 | 1 | MODULE | 289,04 Lei | |
| 31 | N756541 | 1 | SCREW | 4,57 Lei | |
| 32 | N920024 | 1 | TRIGGER | 4,57 Lei | |
| 33 | NA026311 | 1 | SPRING | 4,57 Lei | |
| 35 | N829448 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 36 | NA025659 | 1 | TRIGGER LOCK-ON | 10,29 Lei | |
| 40 | 330019-00 | 14 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 43 | NA035507 | 1 | SHEATH | 7,37 Lei |
