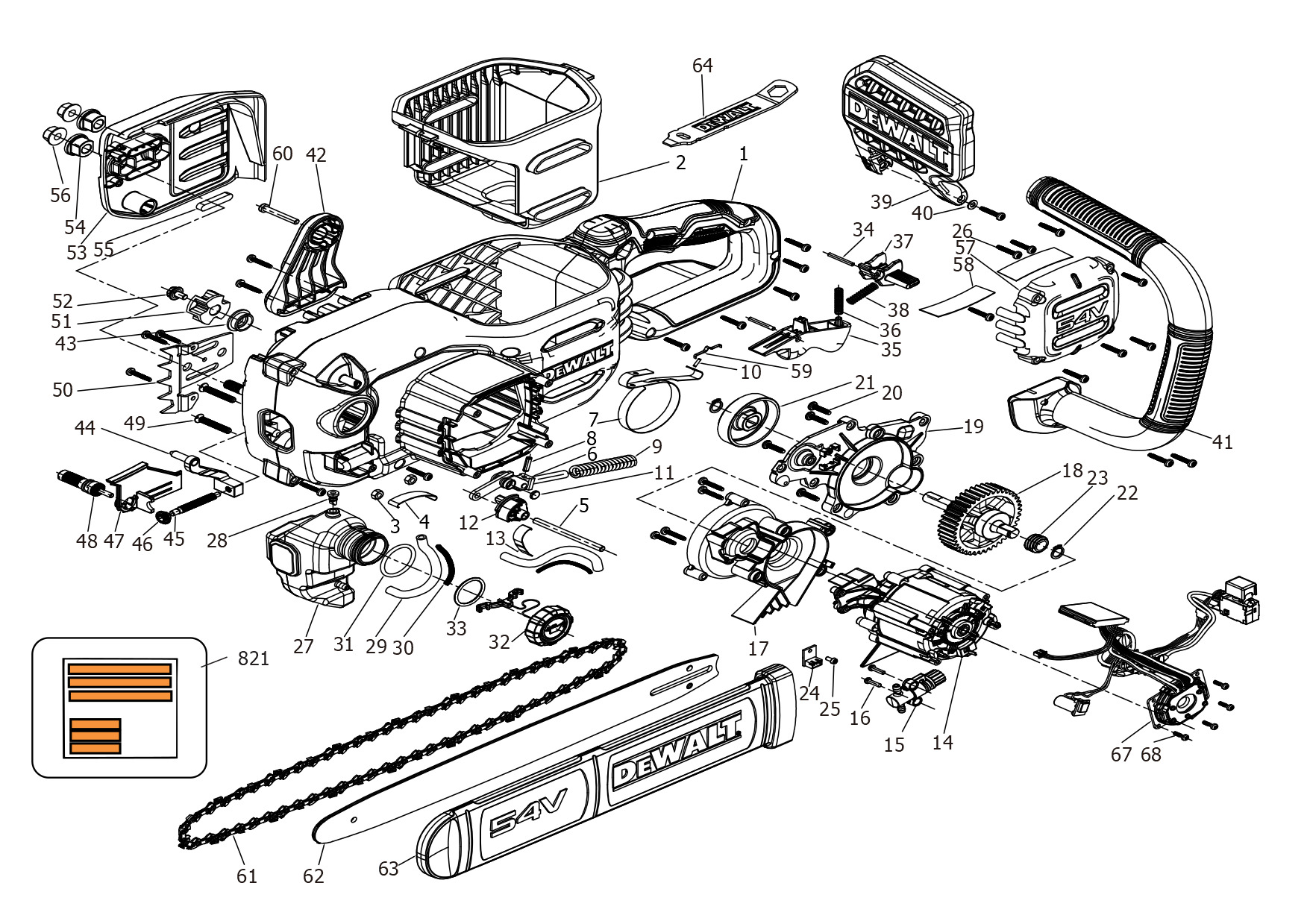

DEWALT CHAINSAW (Type 1)
SKU Produs: DCMCS574N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA005772 | 1 | HOUSING SA | 314,3 Lei | |
| 2 | NA007335 | 1 | CAGE | 19,95 Lei | |
| 3 | N506901 | 2 | NUT | 4,57 Lei | |
| 4 | 90621730 | 1 | LEAF SPRING | 4,57 Lei | |
| 5 | N837653 | 1 | PIN | 6,23 Lei | |
| 6 | N561356 | 1 | BRAKE SA | 41,93 Lei | |
| 7 | 90638025 | 1 | STRAP | 7,37 Lei | |
| 8 | 90627301 | 1 | SPIROL PIN | 4,57 Lei | |
| 10 | 90594864 | 1 | PIN | 4,57 Lei | |
| 11 | N572224 | 1 | MAGNET | 6,4 Lei | |
| 12 | N835336 | 1 | BRAKE | 52,22 Lei | |
| 13 | 90622670 | 1 | LEAF SPRING | 4,7 Lei | |
| 13 | 90622693 | 1 | RATING LABEL | 4,57 Lei | |
| 14 | NA075899 | 1 | ROTOR SA | 530,69 Lei | |
| 15 | N824644 | 1 | PUMP SA | 30,87 Lei | |
| 16 | 330019-28 | 2 | SCREW | 4,57 Lei | |
| 17 | N838844 | 1 | GEARCASE SA | 70,39 Lei | |
| 18 | N848267 | 1 | OUTPUT SHAFT SA | 120,82 Lei | |
| 19 | N838846 | 1 | GEARCASE COVER | 70,39 Lei | |
| 20 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 21 | N834893 | 1 | BRAKE | 21,85 Lei | |
| 22 | 624521-00 | 2 | LOCKING RING | 4,57 Lei | |
| 23 | N847224 | 1 | Gear | 4,57 Lei | |
| 24 | N576084 | 1 | SENSOR | 37,73 Lei | |
| 25 | 90566914 | 1 | SCREW | 4,57 Lei | |
| 26 | 330019-04 | 25 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 27 | NA119950 | 1 | TANK | 22,4 Lei | |
| 28 | 90618295 | 1 | VALVE | 4,57 Lei | |
| 29 | N847773 | 1 | TUBE OIL | 4,57 Lei | |
| 30 | N847775 | 1 | SPRING | 4,57 Lei | |
| 31 | N564358 | 1 | GASKET | 4,57 Lei | |
| 32 | N615366 | 1 | CAP SA | 19,95 Lei | |
| 33 | N654901 | 1 | O RING | 4,57 Lei | |
| 34 | 590312-00 | 2 | PIN | 4,57 Lei | |
| 35 | N915410 | 1 | TRIGGER | 7,37 Lei | |
| 36 | 90623323 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 37 | 90613569 | 1 | LEVER LOCK | 6,23 Lei | |
| 38 | 90620179 | 1 | SPRING | 4,57 Lei | |
| 39 | NA005776 | 1 | GUARD FRONT | 19,95 Lei | |
| 40 | 330016-01 | 1 | WASHER | 4,57 Lei | |
| 41 | N832633 | 1 | HANDLE | 25,54 Lei | |
| 42 | N914325 | 1 | HANDLE | 12,71 Lei | |
| 43 | N859252 | 1 | SEAL | 4,57 Lei | |
| 44 | N855253 | 1 | TENSION BLOCK | 19,95 Lei | |
| 45 | N855275 | 1 | SCREW | 10,29 Lei | |
| 47 | NA126784 | 1 | PLATE | 5,21 Lei | |
| 49 | N858609 | 2 | SCREW | 4,57 Lei | |
| 50 | N687148 | 1 | MOUNTING BRACKET | 17,02 Lei | |
| 51 | 90585879 | 1 | SPROCKET | 15,12 Lei | |
| 52 | 90639221 | 1 | BOLT | 4,57 Lei | |
| 53 | N832636 | 1 | COVER | 19,95 Lei | |
| 53 | N833120 | 1 | MODULE | 165,3 Lei | |
| 54 | N692439 | 2 | BUSHING | 5,21 Lei | |
| 55 | 90622086 | 1 | SEAL | 4,57 Lei | |
| 57 | NA007214 | 1 | CAP | 15,12 Lei | |
| 58 | N876026 | 2 | FILTER | 5,21 Lei | |
| 59 | N014681 | 1 | LEAF SPRING | 4,57 Lei | |
| 60 | 330019-05 | 5 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 61 | N500152 | 1 | CHAIN | 70,39 Lei | |
| 62 | NA044386 | 1 | BAR CHAIN | 169,36 Lei | |
| 63 | NA007519 | 1 | SHEATH | 37,73 Lei | |
| 64 | N856669 | 1 | WRENCH | 13,85 Lei | |
| 67 | N876074 | 1 | PCB SA | 696,6 Lei | |
| 67 | NA205269 | 1 | CONTROL MODULE SA | 1087,42 Lei | |
| 68 | N034545 | 4 | SCREW | 4,57 Lei |
