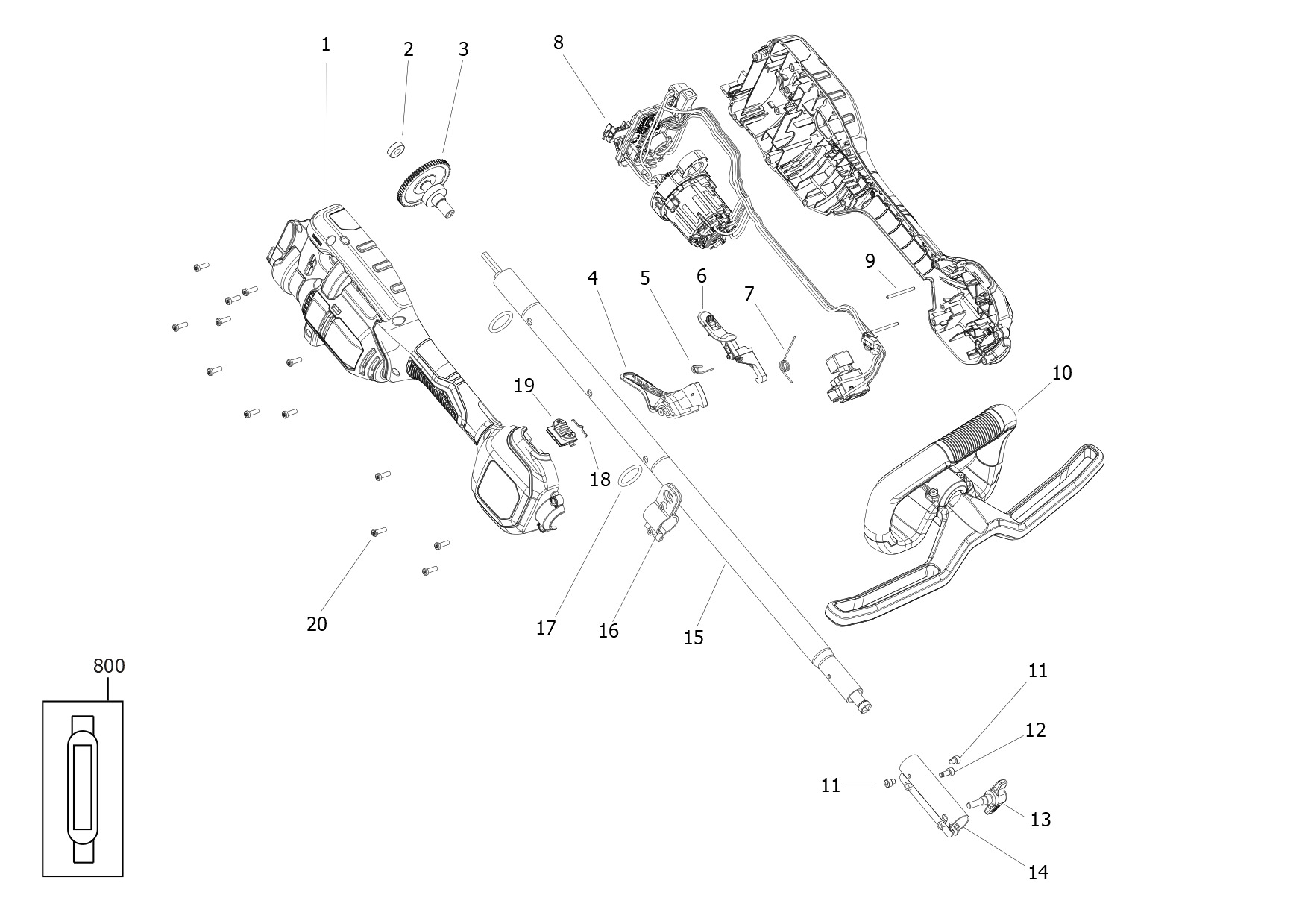

DEWALT GARDEN WORKER (Type 1)
SKU Produs: DCMAS5713N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N888907 | 1 | CLAMSHELL SET | 273,95 Lei | |
| 2 | 606290-01 | 1 | BEARING | 8,64 Lei | |
| 3 | N865394 | 1 | Gear | 47,78 Lei | |
| 4 | N876245 | 1 | TRIGGER | 12,71 Lei | |
| 5 | 90602633 | 1 | SPRING | 4,57 Lei | |
| 6 | 90623756 | 1 | ACTUATOR | 8,64 Lei | |
| 7 | N769089 | 1 | SPRING | 3,78 Lei | |
| 8 | NA048506 | 1 | xs12 | 1565,13 Lei | |
| 9 | 90608942 | 2 | PIN | 4,57 Lei | |
| 10 | N851573 | 1 | HANDLE SA | 106,98 Lei | |
| 11 | N769035 | 2 | SCREW | 3,78 Lei | |
| 12 | N454259 | 1 | SCREW | 4,57 Lei | |
| 13 | N889867 | 1 | KNOB | 18,06 Lei | |
| 14 | N785058 | 1 | CONNECTOR | 34,05 Lei | |
| 15 | N788014 | 1 | POLE PIECE | 240,38 Lei | |
| 16 | NA000216 | 1 | MOUNT | 12,5 Lei | |
| 17 | 90602632 | 2 | RUBBER | 4,57 Lei | |
| 18 | N014681 | 1 | LEAF SPRING | 4,57 Lei | |
| 19 | 90602320 | 1 | ACTUATOR | 4,57 Lei | |
| 20 | 330019-12 | 13 | SCREW | 4,57 Lei | |
| 800 | N921863 | 1 | STRAP | 130,35 Lei |
