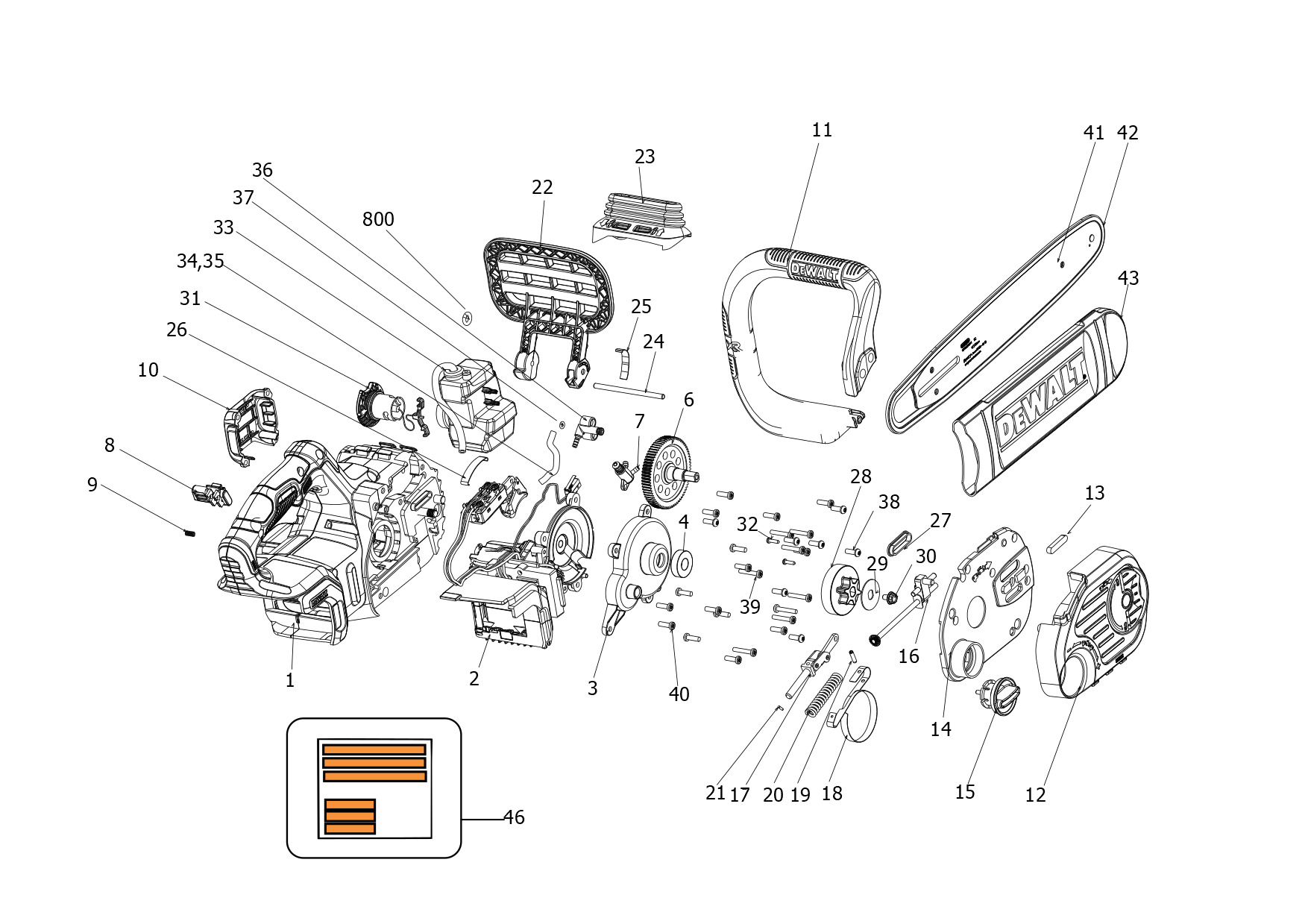

DEWALT CHAINSAW (Type 3)
SKU Produs: DCM565N /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N871950 | 1 | HOUSING SA | 157,92 Lei | |
| 3 | N604398 | 1 | COVER SA | 25,54 Lei | |
| 4 | N150961 | 1 | BEARING | 15,12 Lei | |
| 6 | N539694 | 1 | OUTPUT SHAFT SA | 81,9 Lei | |
| 7 | 90624557 | 1 | PUMP SA | 30,87 Lei | |
| 8 | N503277 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 9 | N433343 | 1 | SPRING | 4,57 Lei | |
| 13 | 90622086 | 1 | SEAL | 4,57 Lei | |
| 14 | 90609778 | 1 | COVER | 17,02 Lei | |
| 16 | NA023456 | 1 | ADJUSTER | 34,05 Lei | |
| 18 | 90638025 | 1 | STRAP | 7,37 Lei | |
| 19 | 90627301 | 1 | SPIROL PIN | 4,57 Lei | |
| 21 | 90594864 | 1 | PIN | 4,57 Lei | |
| 22 | 90609587 | 1 | GUARD | 25,54 Lei | |
| 23 | N507145 | 1 | SEAL | 19,95 Lei | |
| 24 | 90618528 | 1 | PIN | 7,37 Lei | |
| 25 | 90621730 | 1 | LEAF SPRING | 4,57 Lei | |
| 27 | 90618051 | 1 | SEAL | 4,57 Lei | |
| 28 | 90618228 | 1 | SPROCKET | 25,54 Lei | |
| 29 | 90618229 | 1 | WASHER | 4,57 Lei | |
| 30 | 90639221 | 1 | BOLT | 4,57 Lei | |
| 31 | 90618141 | 1 | CAP | 19,95 Lei | |
| 32 | 330019-28 | 1 | SCREW | 4,57 Lei | |
| 33 | N539697 | 1 | TANK | 52,22 Lei | |
| 34 | 90609542 | 1 | TUBE | 5,21 Lei | |
| 35 | 90620845 | 1 | SPRING | 4,57 Lei | |
| 36 | 90104269 | 1 | PLUG | 7,37 Lei | |
| 37 | 90104270 | 1 | O RING | 4,57 Lei | |
| 38 | 330019-11 | 1 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 39 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 41 | N594322 | 1 | BAR | 96,56 Lei | |
| 42 | N580237 | 1 | CHAIN 12 INCH | 80,04 Lei | |
| 43 | N693518 | 1 | SHEATH | 17,02 Lei | |
| 800 | 90618339 | 1 | O RING | 4,57 Lei |
