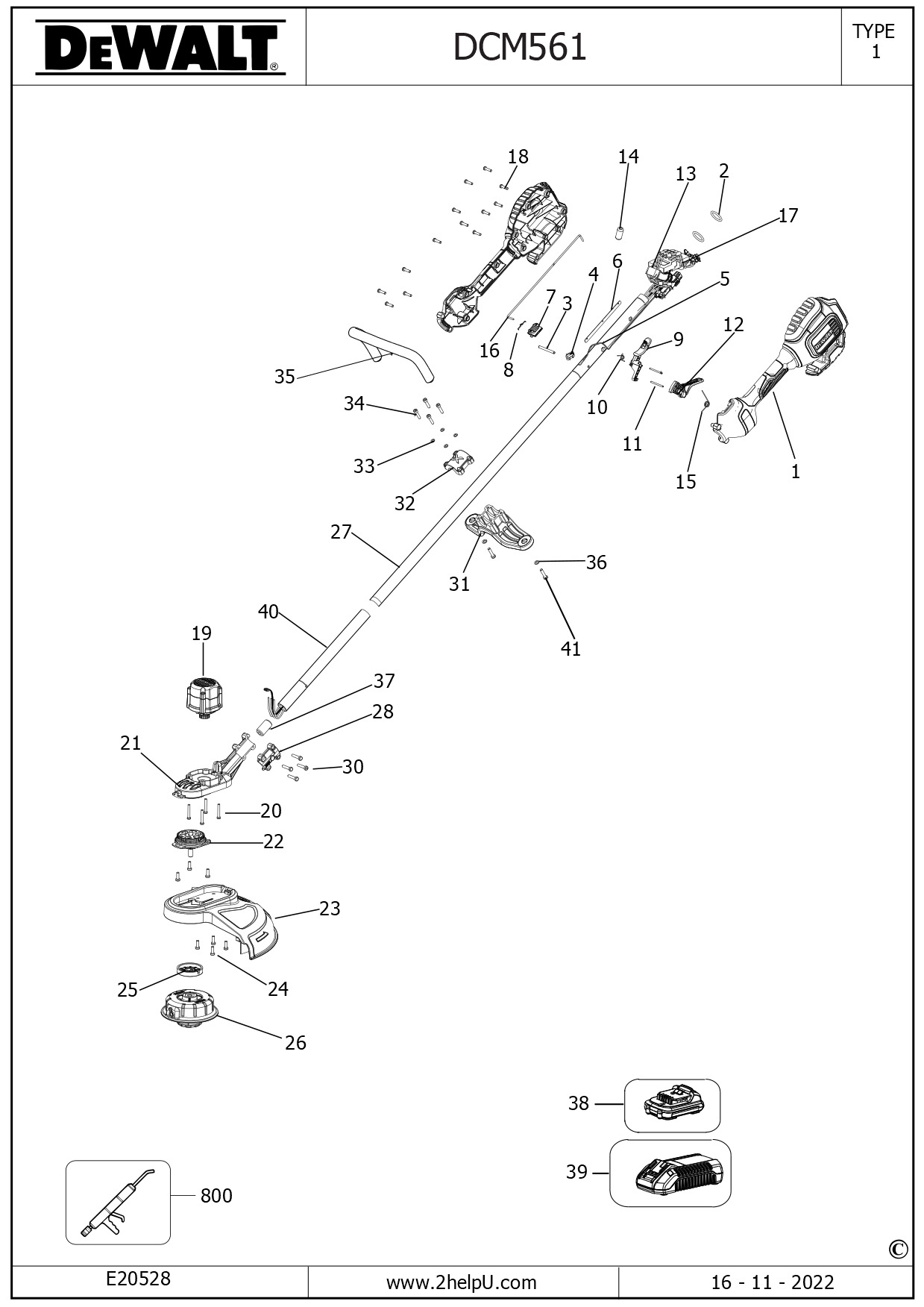

DEWALT STRING TRIMMER (Type 1)
SKU Produs: DCM561L1S /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90613418-01 | 1 | HANDLE SA | 169,36 Lei | |
| 2 | 90602632 | 2 | RUBBER | 4,57 Lei | |
| 3 | 90608944 | 1 | PIN | 4,57 Lei | |
| 4 | 90600458 | 1 | SWITCH | 17,02 Lei | |
| 5 | 90608663-01 | 1 | WIRE HARNESS | 8,64 Lei | |
| 6 | 90609633 | 1 | COVER | 4,57 Lei | |
| 7 | 90602320 | 1 | ACTUATOR | 4,57 Lei | |
| 7 | 90602462 | 1 | RATING LABEL | 13,85 Lei | |
| 8 | N014681 | 1 | LEAF SPRING | 4,57 Lei | |
| 9 | 90623756 | 1 | ACTUATOR | 8,64 Lei | |
| 10 | 90602633 | 1 | SPRING | 4,57 Lei | |
| 11 | 90608942 | 2 | PIN | 4,57 Lei | |
| 12 | 90599030 | 1 | TRIGGER | 7,37 Lei | |
| 13 | 90623025 | 1 | INDUCTOR | 57,81 Lei | |
| 14 | 90623338 | 1 | WASHER | 21,85 Lei | |
| 15 | 90602634 | 1 | SPRING | 4,57 Lei | |
| 16 | 90614754 | 1 | LINKAGE SA | 5,21 Lei | |
| 17 | 90635511 | 1 | MODULE | 318,26 Lei | |
| 18 | 330019-80 | 23 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 19 | 90640981 | 1 | MOTOR AND PINION | 361,33 Lei | |
| 20 | 330019-15 | 4 | SCREW, PLASTIC THREAD FORM M4 X 32 T20 | 4,57 Lei | |
| 21 | 90613424SV | 1 | GEARCASE SA | 34,05 Lei | |
| 22 | 90615764SV | 1 | GEAR CASE SA | 70,39 Lei | |
| 23 | 90624364 | 1 | GUARD 13 | 30,87 Lei | |
| 24 | 90614124-06 | 7 | SCREW | 4,57 Lei | |
| 25 | 90607066 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 26 | 90599025 | 1 | SPOOL SA | 106,98 Lei | |
| 27 | 90617532-01 | 1 | HANDLE TUBE SA | 88,55 Lei | |
| 28 | 90615950 | 1 | CLAMP | 6,23 Lei | |
| 30 | 90614124-04 | 6 | SCREW | 4,57 Lei | |
| 31 | 90603784 | 1 | HANDLE FRAME KIT | 25,54 Lei | |
| 32 | 90608998 | 1 | CLAMP | 7,37 Lei | |
| 33 | 330016-15 | 4 | WASHER | 4,57 Lei | |
| 34 | 90614038 | 4 | SCREW | 4,57 Lei | |
| 35 | 90603783 | 1 | HANDLE | 34,05 Lei | |
| 36 | 90615599 | 2 | WASHER | 4,57 Lei | |
| 37 | 90623337 | 1 | WASHER | 25,54 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 800 | N475660 | 1 | GREASE NYE NYOGEL 760G (150G) | 33,2 Lei |
