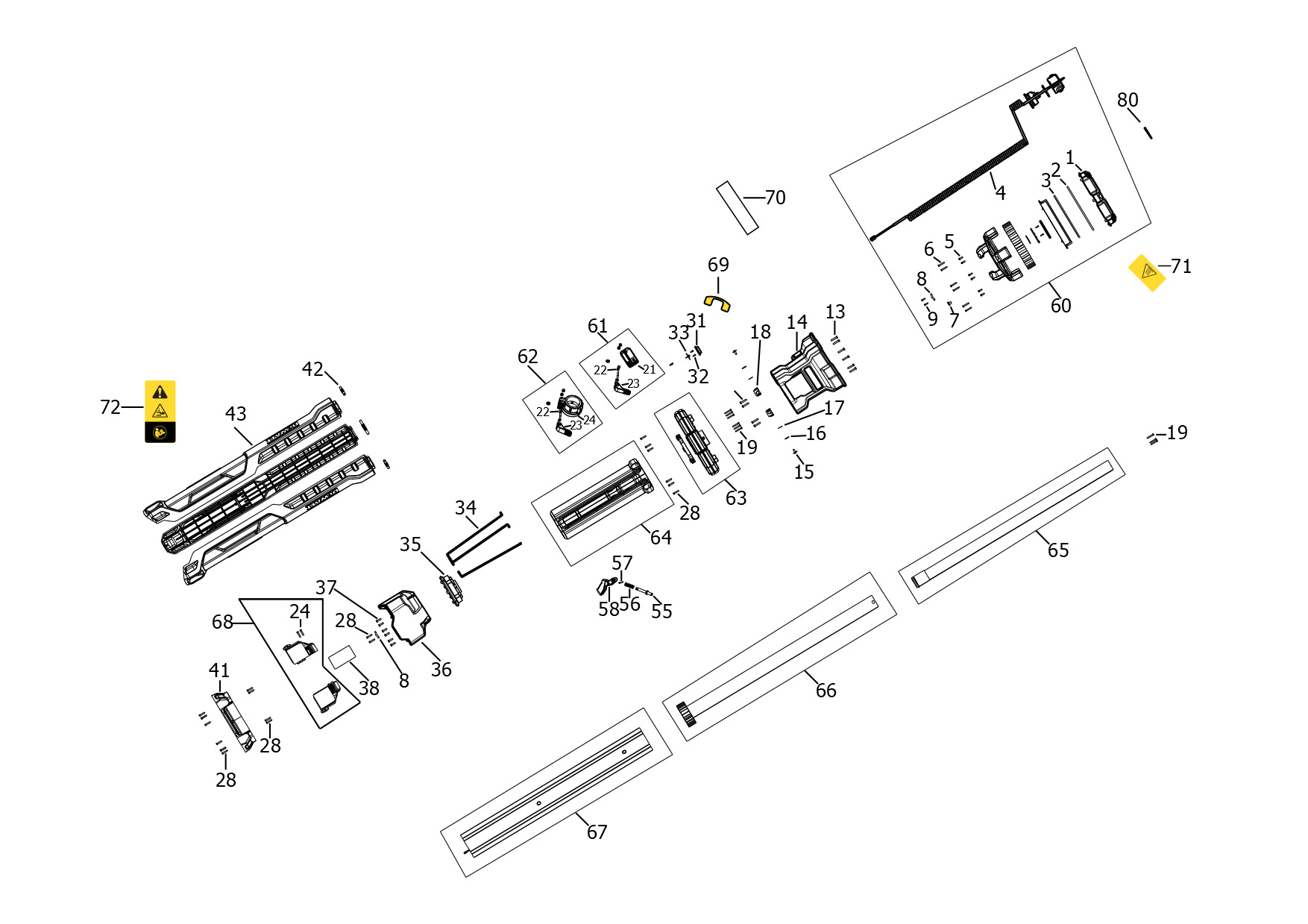

DEWALT LAMP (Type 2)
SKU Produs: DCL079 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N564970 | 1 | COVER | 34,05 Lei | |
| 2 | N504820 | 1 | LENS | 21,85 Lei | |
| 3 | N507253 | 1 | SEAL | 12,71 Lei | |
| 4 | N510286 | 1 | LEAD SA | 96,56 Lei | |
| 6 | 330019-24 | 6 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 7 | N504828 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 8 | N504832 | 1 | CORD CLAMP | 4,57 Lei | |
| 9 | 330019-41 | 2 | VITE PLASTIC | 4,57 Lei | |
| 13 | 330019-04 | 10 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 15 | N507800 | 2 | SCREW | 4,57 Lei | |
| 16 | N504835 | 2 | WASHER | 4,57 Lei | |
| 17 | N504836 | 2 | WASHER | 4,57 Lei | |
| 19 | 330045-53 | 15 | SCREW | 4,57 Lei | |
| 22 | N504851 | 2 | PIN | 8,64 Lei | |
| 23 | N504850 | 2 | LEVER | 6,23 Lei | |
| 24 | N521635 | 1 | CLAMP | 12,71 Lei | |
| 28 | 330019-00 | 20 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 31 | N504843 | 1 | SWITCH COVER | 5,21 Lei | |
| 32 | N510973 | 2 | SCREW | 4,57 Lei | |
| 33 | N509849 | 1 | PCB | 21,85 Lei | |
| 35 | N506414 | 1 | CAP | 21,85 Lei | |
| 37 | 330019-38 | 6 | SCREW | 4,57 Lei | |
| 41 | N504775 | 1 | HOUSING | 80,04 Lei | |
| 42 | N704562 | 1 | PIN | 7,37 Lei | |
| 56 | N504845 | 1 | SPRING | 4,57 Lei | |
| 57 | N506089 | 1 | PIN | 4,57 Lei | |
| 58 | N504846 | 1 | BUTTON RELEASE | 8,64 Lei | |
| 62 | N543984 | 1 | CLAMP SA | 25,54 Lei | |
| 63 | N543981 | 1 | HANDLE SA | 106,98 Lei | |
| 64 | N543985 | 1 | COLLAR SA | 120,82 Lei | |
| 65 | N543973 | 1 | TUBE ELEVATING SA | 96,56 Lei | |
| 66 | N543974 | 1 | TUBE ELEVATING SA | 106,98 Lei | |
| 67 | N543978 | 1 | COLUMN SA | 181,55 Lei | |
| 68 | N582930 | 1 | FOOT SA | 157,92 Lei | |
| 69 | N508875 | 1 | LABEL | 4,57 Lei | |
| 71 | N547992 | 1 | WARNING LABEL | 4,57 Lei | |
| 72 | N547991 | 1 | WARNING LABEL | 4,57 Lei |
