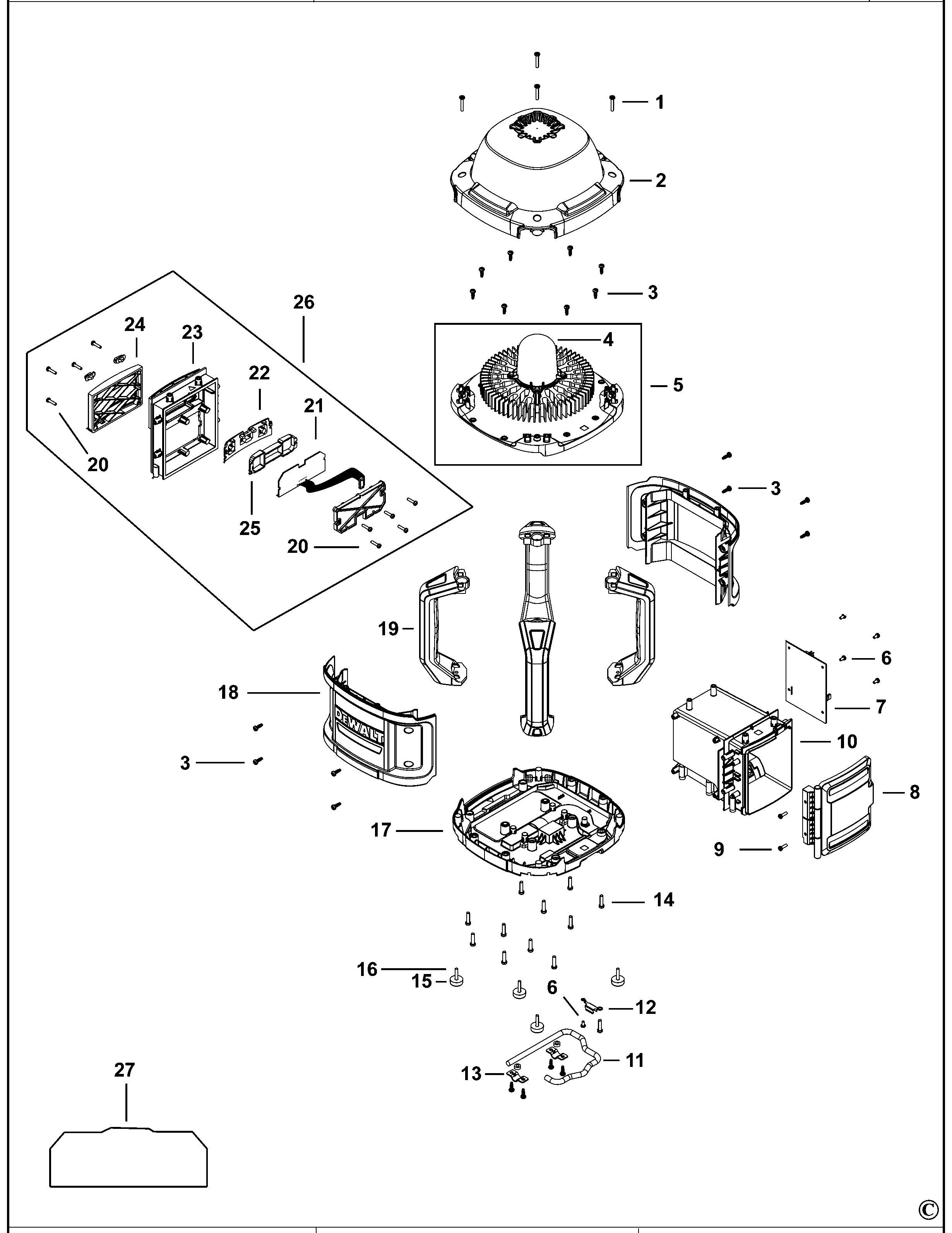

DEWALT WORKLIGHT (Type 1)
SKU Produs: DCL074 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N660552 | 4 | SCREW | 6,23 Lei | |
| 2 | N574151 | 1 | LENS | 213,19 Lei | |
| 3 | N660548 | 20 | SCREW | 5,21 Lei | |
| 4 | N493187 | 1 | LENS | 41,93 Lei | |
| 5 | N536529 | 1 | LED LIGHT | 750,36 Lei | |
| 6 | N660549 | 8 | SCREW | 5,21 Lei | |
| 7 | N664801 | 1 | PCB | 331,47 Lei | |
| 8 | N504044 | 1 | DOOR | 79,8 Lei | |
| 9 | N660547 | 2 | SCREW | 5,21 Lei | |
| 10 | N513394 | 1 | BOX | 181,55 Lei | |
| 11 | N505408 | 1 | HOOK | 66,15 Lei | |
| 12 | N598150 | 1 | SPRING CLIP | 21,11 Lei | |
| 13 | N505409 | 1 | BRACKET | 18,06 Lei | |
| 14 | N660551 | 12 | SCREW | 5,21 Lei | |
| 15 | N563154 | 4 | FEET | 21,11 Lei | |
| 16 | N660552 | 8 | SCREW | 6,23 Lei | |
| 17 | N562463 | 1 | BOTTOM PLATE | 300,47 Lei | |
| 18 | N496650 | 2 | PANEL | 120,82 Lei | |
| 19 | N507369 | 4 | CAGE | 66,15 Lei | |
| 20 | 330019-66 | 9 | SCREW | 4,57 Lei | |
| 21 | N578351 | 1 | PCB CONTROLLER | 80,04 Lei | |
| 22 | N544079 | 1 | KEYBOARD | 34,65 Lei | |
| 23 | N503473 | 1 | FRAME | 58,17 Lei | |
| 24 | N590656 | 1 | COVER | 43,16 Lei | |
| 25 | N548045 | 1 | RUBBER SEAL | 15,12 Lei | |
| 26 | N591645 | 1 | BUTTON SA | 213,19 Lei | |
| 27 | NA104697 | 1 | RATING PLATE | 30,87 Lei |
