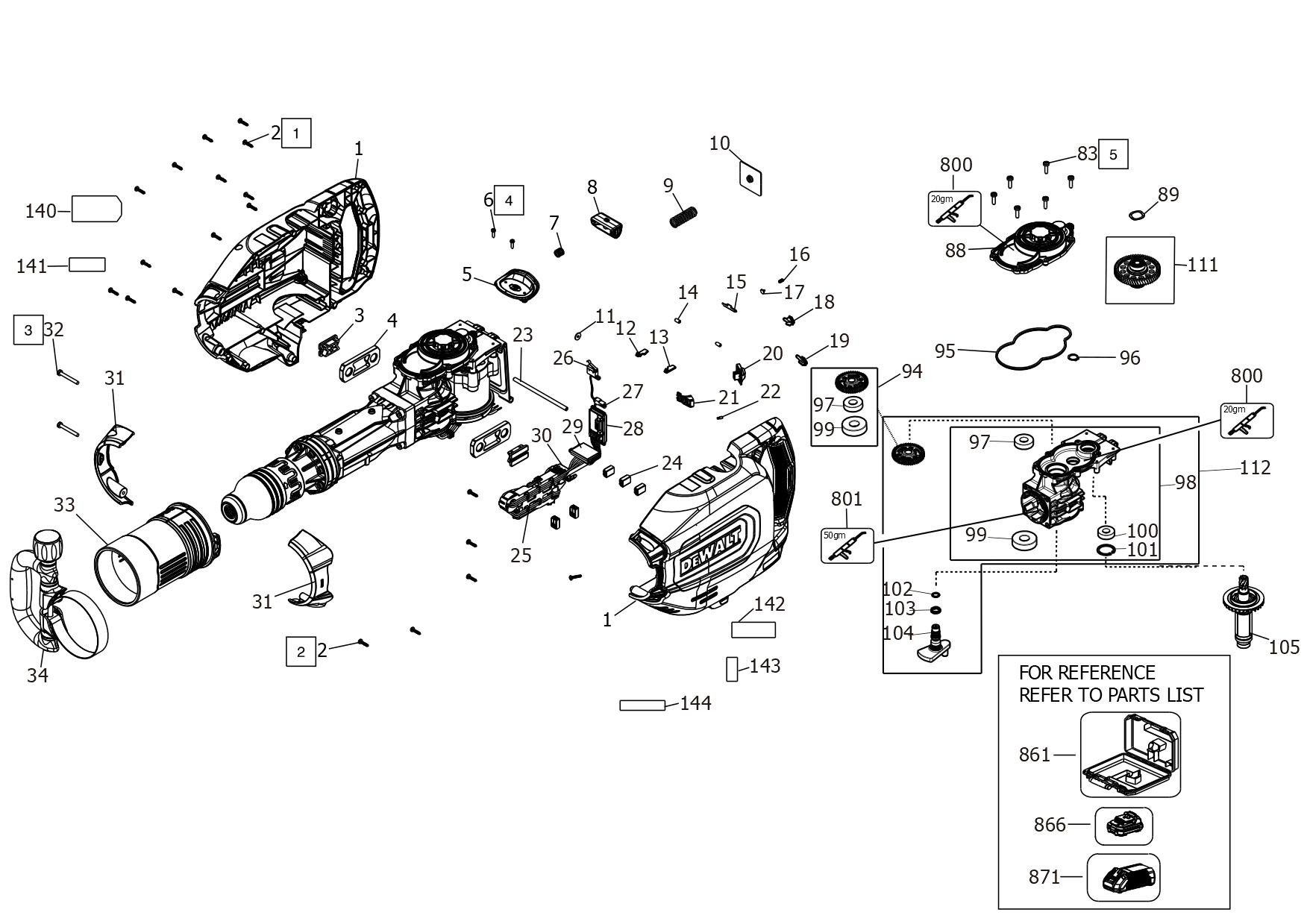

DEWALT DEMOLITION HAMMER (Type 1)
SKU Produs: DCH911NK /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA029602 | 1 | HOUSING SA | 273,95 Lei | |
| 2 | 330065-08 | 26 | SCREW M4X18 | 4,57 Lei | |
| 3 | NA228762 | 2 | GUIDE BLOCK | 6,09 Lei | |
| 4 | N906377 | 2 | DAMPER | 11,45 Lei | |
| 5 | NA049554 | 1 | HANDLE COVER | 6,09 Lei | |
| 6 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 7 | NA083203 | 1 | SPRING | 3,78 Lei | |
| 8 | N849617 | 1 | SLIDE | 4,31 Lei | |
| 9 | N855091 | 1 | SPRING | 8,51 Lei | |
| 10 | N855177 | 1 | PLATE | 6,09 Lei | |
| 11 | NA262558 | 1 | WASHER | 3,78 Lei | |
| 12 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 13 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 14 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 15 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 16 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 17 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 18 | NA000208 | 1 | GUIDE | 16,49 Lei | |
| 19 | NA090620 | 1 | GUIDE | 16,49 Lei | |
| 20 | N936367 | 1 | SWITCH SUPPORT | 16,49 Lei | |
| 21 | N936366 | 1 | LEVER | 21,11 Lei | |
| 22 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 23 | N919485 | 1 | AXIS | 7,14 Lei | |
| 24 | N590957 | 5 | CONNECTOR | 10,29 Lei | |
| 25 | NA334560 | 1 | MODULE | 373,38 Lei | |
| 26 | N935669 | 1 | SWITCH | 28,14 Lei | |
| 27 | N689017 | 1 | WIRE HARNESS | 73,19 Lei | |
| 28 | N889840 | 1 | MODULE | 79,8 Lei | |
| 29 | NA029067 | 1 | CLUTCH MODULE | 99,86 Lei | |
| 30 | N779711 | 1 | TERMINAL BLOCK | 107,73 Lei | |
| 31 | NA131178 | 1 | HOUSING FRONT | 18,06 Lei | |
| 32 | 330019-26 | 2 | SCREW M5.28 X42 | 4,57 Lei | |
| 33 | NA077222 | 1 | SUPPORT. FRONT | 66,15 Lei | |
| 34 | N843733 | 1 | HANDLE SIDE SA | 176,19 Lei | |
| 35 | NA176495 | 1 | SEAL | 41,93 Lei | |
| 36 | N522784 | 1 | RETAINER | 4,57 Lei | |
| 37 | N516487 | 1 | WASHER | 7,37 Lei | |
| 38 | NA176490 | 1 | RUBBER | 21,85 Lei | |
| 39 | N532534 | 1 | SLEEVE | 21,11 Lei | |
| 40 | NA147565 | 1 | DAMPER | 25,52 Lei | |
| 41 | N511834 | 1 | BUSH | 25,54 Lei | |
| 42 | N520782 | 1 | SPRING | 7,37 Lei | |
| 43 | N408040 | 1 | SEAL | 21,85 Lei | |
| 44 | N546022 | 1 | SPRING LOCKING 12KG SDS | 8,64 Lei | |
| 45 | N532488 | 1 | GUIDE SPRING 12KG SDS | 7,37 Lei | |
| 46 | N929397 | 1 | SPRING | 4,31 Lei | |
| 47 | NA365538 | 1 | SLEEVE | 43,16 Lei | |
| 48 | N511836 | 2 | LOCKING DEVICE | 37,73 Lei | |
| 49 | N918192 | 1 | O RING | 11,45 Lei | |
| 50 | NA334572 | 1 | HOLDER TOOL | 551,99 Lei | |
| 51 | N853695 | 2 | O RING | 6,09 Lei | |
| 52 | NA068950 | 1 | DAMPER | 21,11 Lei | |
| 53 | NA334559 | 1 | SPINDLE SA | 471,87 Lei | |
| 54 | N784061 | 1 | SEAL | 18,06 Lei | |
| 55 | NA278416 | 8 | SCREW | 5,15 Lei | |
| 56 | N784052 | 1 | SLEEVE BEARING | 21,11 Lei | |
| 58 | N784058 | 1 | BEAT PIECE | 161,18 Lei | |
| 59 | N770296 | 1 | BUSH | 88,41 Lei | |
| 60 | N770302 | 1 | DAMPER | 66,15 Lei | |
| 61 | N851202 | 1 | WASHER | 25,52 Lei | |
| 62 | N770319 | 1 | SLIDER | 21,11 Lei | |
| 63 | N819437 | 1 | HOUSING FRONT | 208,74 Lei | |
| 64 | N866784 | 4 | SCREW | 6,09 Lei | |
| 65 | N853690 | 1 | O RING | 18,06 Lei | |
| 66 | N835754 | 1 | CYLINDER | 34,65 Lei | |
| 67 | N770286 | 1 | O RING | 16,49 Lei | |
| 68 | NA640511 | 1 | CYLINDER | 25,52 Lei | |
| 69 | N537380 | 1 | SLEEVE TURNING 12KG SDS | 41,93 Lei | |
| 71 | NA640547 | 1 | CYLINDER | 18,06 Lei | |
| 73 | NA025059 | 2 | CONTACT PLATE | 3,78 Lei | |
| 74 | NA025057 | 1 | CLIP | 3,78 Lei | |
| 75 | N919476 | 1 | AXIS | 6,09 Lei | |
| 76 | N911183 | 1 | CONTACT PLATE | 28,14 Lei | |
| 77 | N772436 | 1 | RAM | 130,52 Lei | |
| 78 | N809161 | 2 | O RING | 18,06 Lei | |
| 79 | N784889 | 1 | PISTON KIT | 73,19 Lei | |
| 80 | N854055 | 1 | RING | 4,31 Lei | |
| 81 | N855767 | 1 | PIN | 10,5 Lei | |
| 82 | N849636 | 1 | CONNECTING ROD | 21,11 Lei | |
| 83 | N548557 | 14 | SCREW | 4,57 Lei | |
| 84 | 487229-00 | 1 | FELT | 5,21 Lei | |
| 85 | NA187983 | 1 | CRANK KIT | 28,14 Lei | |
| 86 | N455140 | 1 | O RING | 8,64 Lei | |
| 87 | NA334575 | 1 | STATOR SA | 341,25 Lei | |
| 88 | N810039 | 1 | HOUSING GEAR | 31,19 Lei | |
| 89 | N927841 | 1 | SPRING | 3,78 Lei | |
| 94 | NA408088 | 1 | GEAR SA | 130,52 Lei | |
| 95 | N913721 | 1 | SEAL | 11,45 Lei | |
| 96 | N526266 | 1 | D | 4,57 Lei | |
| 97 | 330003-69 | 1 | BEARING, BALL 17x40x12-6203T1XDDW1C3E | 34,05 Lei | |
| 98 | NA409838 | 1 | GEARCASE SA | 358,05 Lei | |
| 99 | 330003-68 | 1 | BEARING, BALL | 57,81 Lei | |
| 100 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 101 | 949729-03 | 1 | RETAINING RING D.35 | 4,57 Lei | |
| 102 | 650249-00 | 1 | O RING | 4,57 Lei | |
| 103 | NA076391 | 1 | RING | 3,78 Lei | |
| 104 | N868365 | 1 | CRANKSHAFT | 218,19 Lei | |
| 105 | NA334581 | 1 | ROTOR SA | 317,1 Lei | |
| 111 | NA334573 | 1 | GEAR SA | 166,11 Lei | |
| 112 | NA334558 | 1 | GEARCASE SA | 677,67 Lei | |
| 120 | NA410062 | 1 | O RING | 6,09 Lei | |
| 121 | NA410078 | 1 | BEAT PIECE | 150,05 Lei | |
| 140 | NA149485 | 1 | RATING LABEL | 7,14 Lei | |
| 141 | NA165857 | 1 | LABEL | 3,78 Lei | |
| 142 | N208653 | 1 | LABEL PERFORM PROTECT 61X22MM | 4,57 Lei | |
| 143 | NA165853 | 1 | LABEL | 3,78 Lei | |
| 144 | N929414 | 2 | LABEL | 4,57 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 801 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | 208,11 Lei | |
| 838 | 559651-99 | 1 | SERVICE TOOL | 1579,36 Lei | |
| 847 | NA334574 | 1 | SERVICE KIT | 150,05 Lei | |
| 850 | NA514097 | 1 | WIRE HARNESS | 11,45 Lei | |
| 861 | NA111460 | 1 | KITBOX | 471,87 Lei |
