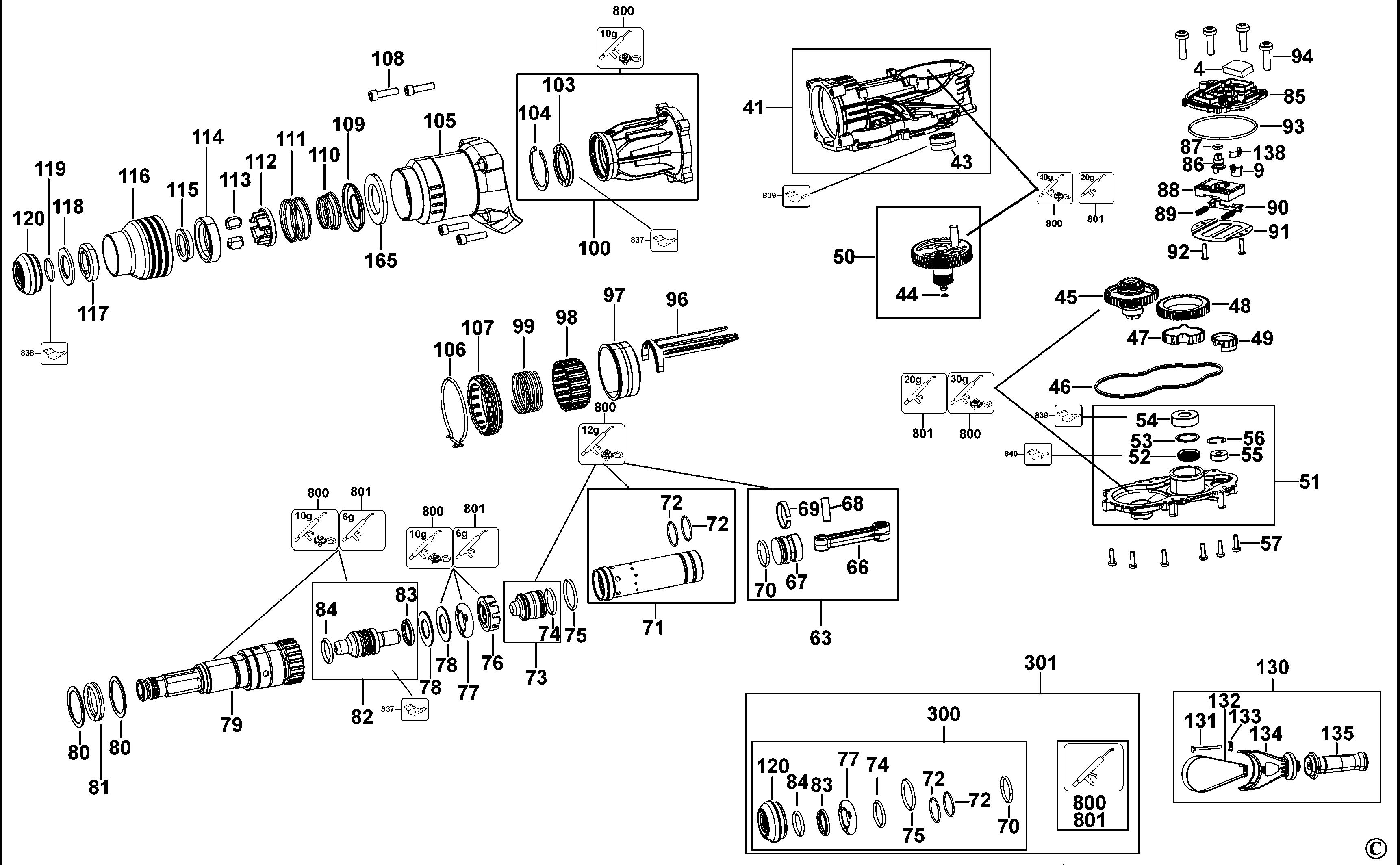

DEWALT CORDLESS HAMMER (Type 1)
SKU Produs: DCH735N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N454966 | 1 | END CAP | 34,05 Lei | |
| 2 | N426918 | 1 | HOUSING MOTOR | 41,93 Lei | |
| 3 | N548557 | 8 | SCREW | 4,57 Lei | |
| 4 | N481045 | 1 | FELT | 5,21 Lei | |
| 5 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 8 | N402321 | 1 | SIDE LH | 17,02 Lei | |
| 9 | N607940 | 1 | CAP | 4,57 Lei | |
| 10 | N402322 | 1 | SIDE RH | 17,02 Lei | |
| 11 | N410170 | 1 | COVER-TOP | 25,54 Lei | |
| 12 | N548557 | 4 | SCREW | 4,57 Lei | |
| 13 | N463694 | 1 | SELECTOR | 7,37 Lei | |
| 14 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 15 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 16 | N548557 | 4 | SCREW | 4,57 Lei | |
| 17 | N496302 | 1 | COVER REAR | 38,6 Lei | |
| 18 | N497944 | 1 | BELLOWS | 13,85 Lei | |
| 19 | N513311 | 1 | LENS | 5,21 Lei | |
| 20 | NA002907 | 1 | MOTOR AND SWITCH SA | 1378,75 Lei | |
| 21 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 22 | N565828 | 1 | RETAINER | 5,21 Lei | |
| 23 | 330065-06 | 1 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 24 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 25 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 26 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 27 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 28 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 29 | N518220 | 1 | SPRING | 4,57 Lei | |
| 30 | N518219 | 1 | BUTTON | 5,21 Lei | |
| 31 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 32 | N501559 | 1 | SPRING | 4,57 Lei | |
| 33 | N497943 | 1 | BELLOWS | 8,64 Lei | |
| 34 | N453525 | 1 | PIN | 8,64 Lei | |
| 36 | NA002836 | 1 | CLAMSHELL SET | 157,92 Lei | |
| 37 | 330065-08 | 8 | SCREW M4X18 | 4,57 Lei | |
| 41 | N850601 | 1 | HOUSING SA | 980,83 Lei | |
| 43 | N408073 | 1 | BEARING,NEEDLE | 80,04 Lei | |
| 44 | N537973 | 1 | O RING | 4,57 Lei | |
| 45 | N580503 | 1 | CLUTCH SA | 276,84 Lei | |
| 46 | N447147 | 1 | SEAL | 6,23 Lei | |
| 47 | N781072 | 1 | BEARING SINTER | 25,54 Lei | |
| 48 | N580506 | 1 | Gear | 41,93 Lei | |
| 49 | N537281 | 1 | SPACER | 6,23 Lei | |
| 50 | N580547 | 1 | CRANKSHAFT | 240,38 Lei | |
| 51 | N851025 | 1 | GEARCASE COVER SA | 225,26 Lei | |
| 52 | N422626 | 1 | SEAL | 30,87 Lei | |
| 53 | 488147-01 | 1 | CIRCLIP, INTERNAL 28MM | 4,57 Lei | |
| 54 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 55 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 56 | N362699 | 1 | CIRCLIP | 4,57 Lei | |
| 57 | N548557 | 6 | SCREW | 4,57 Lei | |
| 58 | N592375 | 1 | ROTOR SA | 331,47 Lei | |
| 59 | N417208 | 1 | BAFFLE | 12,71 Lei | |
| 60 | N680282 | 2 | RUBBER | 4,57 Lei | |
| 61 | 330019-05 | 4 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 63 | N580550 | 1 | PISTON SA | 130,35 Lei | |
| 66 | N662674 | 1 | CON ROD | 41,93 Lei | |
| 67 | N430664 | 1 | PISTON | 52,22 Lei | |
| 68 | N026609 | 1 | PIN PISTON 7KG | 6,23 Lei | |
| 69 | N439990 | 1 | PISTON RING | 5,21 Lei | |
| 70 | N612854 | 1 | O RING | 12,71 Lei | |
| 71 | N580553 | 1 | CYLINDER | 240,38 Lei | |
| 72 | N481377 | 2 | O RING | 4,57 Lei | |
| 73 | N580554 | 1 | RAM SA | 120,82 Lei | |
| 74 | N612854 | 1 | O RING | 12,71 Lei | |
| 75 | N493644 | 1 | D0-3 | 8,64 Lei | |
| 76 | N413144 | 1 | BUSH | 5,21 Lei | |
| 77 | N400500 | 1 | DAMPER | 34,05 Lei | |
| 78 | N389366 | 2 | WASHER | 6,23 Lei | |
| 79 | N580555 | 1 | SPINDLE | 776,53 Lei | |
| 80 | N392234 | 2 | WASHER | 7,37 Lei | |
| 81 | 589223-00 | 1 | DAMPER, SPINDLE | 7,37 Lei | |
| 82 | N580556 | 1 | BEAT PIECE | 195,02 Lei | |
| 83 | N594490 | 1 | SEAL | 15,12 Lei | |
| 84 | N432561 | 1 | O RING | 8,64 Lei | |
| 85 | N409943 | 1 | COVER | 15,12 Lei | |
| 86 | N504016 | 1 | ECCENTRIC | 4,57 Lei | |
| 87 | N515556 | 1 | O RING | 7,37 Lei | |
| 88 | N410143 | 1 | SLIDER | 5,21 Lei | |
| 89 | N520791 | 2 | SPRING | 4,57 Lei | |
| 90 | N410898 | 1 | CONNECTOR | 4,57 Lei | |
| 91 | N427022 | 1 | PLATE | 7,37 Lei | |
| 92 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 93 | N455140 | 1 | O RING | 8,64 Lei | |
| 94 | N548557 | 1 | SCREW | 4,57 Lei | |
| 96 | N409698 | 1 | SLIDER | 7,37 Lei | |
| 97 | N580526 | 1 | BEVEL GEAR | 375,31 Lei | |
| 98 | N580533 | 1 | SLEEVE | 88,55 Lei | |
| 99 | N497938 | 1 | SPRING | 7,37 Lei | |
| 100 | N580559 | 1 | HOUSING FRONT | 307,21 Lei | |
| 103 | N392582 | 1 | SEAL | 30,87 Lei | |
| 104 | N181847 | 1 | SAFETY RING 55 | 6,23 Lei | |
| 105 | N416526 | 1 | COVER HOUSING | 41,93 Lei | |
| 106 | N431324 | 1 | GASKET | 8,64 Lei | |
| 107 | N420195 | 1 | BUSH | 21,85 Lei | |
| 108 | 949886-32 | 4 | SCREW, M8X30 | 5,21 Lei | |
| 109 | N516486 | 1 | GUIDE | 17,02 Lei | |
| 110 | N520784 | 1 | SPRING | 4,57 Lei | |
| 111 | N520782 | 1 | SPRING | 7,37 Lei | |
| 112 | N408040 | 1 | SEAL | 21,85 Lei | |
| 113 | N511836 | 2 | LOCKING DEVICE | 37,73 Lei | |
| 114 | N511834 | 1 | BUSH | 25,54 Lei | |
| 115 | N511805 | 1 | DAMPER | 41,93 Lei | |
| 116 | N468816 | 1 | SLEEVE | 21,85 Lei | |
| 117 | NA176490 | 1 | RUBBER | 21,85 Lei | |
| 118 | N516487 | 1 | WASHER | 7,37 Lei | |
| 119 | N522784 | 1 | RETAINER | 4,57 Lei | |
| 120 | NA176495 | 1 | SEAL | 41,93 Lei | |
| 130 | N412213 | 1 | HANDLE SIDE SA | 106,98 Lei | |
| 131 | N552104 | 1 | BOLT | 7,37 Lei | |
| 132 | N412984 | 1 | CLAMP | 37,73 Lei | |
| 133 | N413396 | 1 | WASHER | 4,57 Lei | |
| 134 | N411953 | 1 | CLAMP | 41,93 Lei | |
| 135 | N499183 | 1 | HANDLE SA | 57,81 Lei | |
| 138 | N520790 | 1 | DETENT | 4,57 Lei | |
| 140 | N551539 | 1 | LABEL | 4,57 Lei | |
| 141 | N551538 | 1 | LABEL | 4,57 Lei | |
| 142 | N929414 | 1 | LABEL | 4,57 Lei | |
| 143 | N929414 | 1 | LABEL | 4,57 Lei | |
| 144 | N551374 | 1 | LABEL | 4,57 Lei | |
| 145 | N551537 | 1 | LABEL | 4,57 Lei | |
| 150 | 330065-35 | 2 | SCREW PLSTC THD FORM M3X12 T10 | 4,57 Lei | |
| 165 | N578605 | 1 | FELT | 21,85 Lei | |
| 165 | N578641 | 1 | SA CONTROL MODULE COMPLETE- FENCING STAP | 800,3 Lei | |
| 170 | N747545 | 1 | MODULE | 200,99 Lei | |
| 195 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 837 | 1003972-99 | 1 | S.T.SEAL FITTING TOOL | 111,8 Lei | |
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | 172,53 Lei | |
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | 185,87 Lei | |
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | 69,75 Lei | |
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | 208,11 Lei | |
| 838 | 559651-99 | 1 | SERVICE TOOL | 1579,36 Lei | |
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | 70,89 Lei | |
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | 46,12 Lei | |
| 850 | N544162 | 1 | SERVICE TOOL | 19,95 Lei | |
| 861 | N895775 | 1 | KITBOX | 389,28 Lei |
