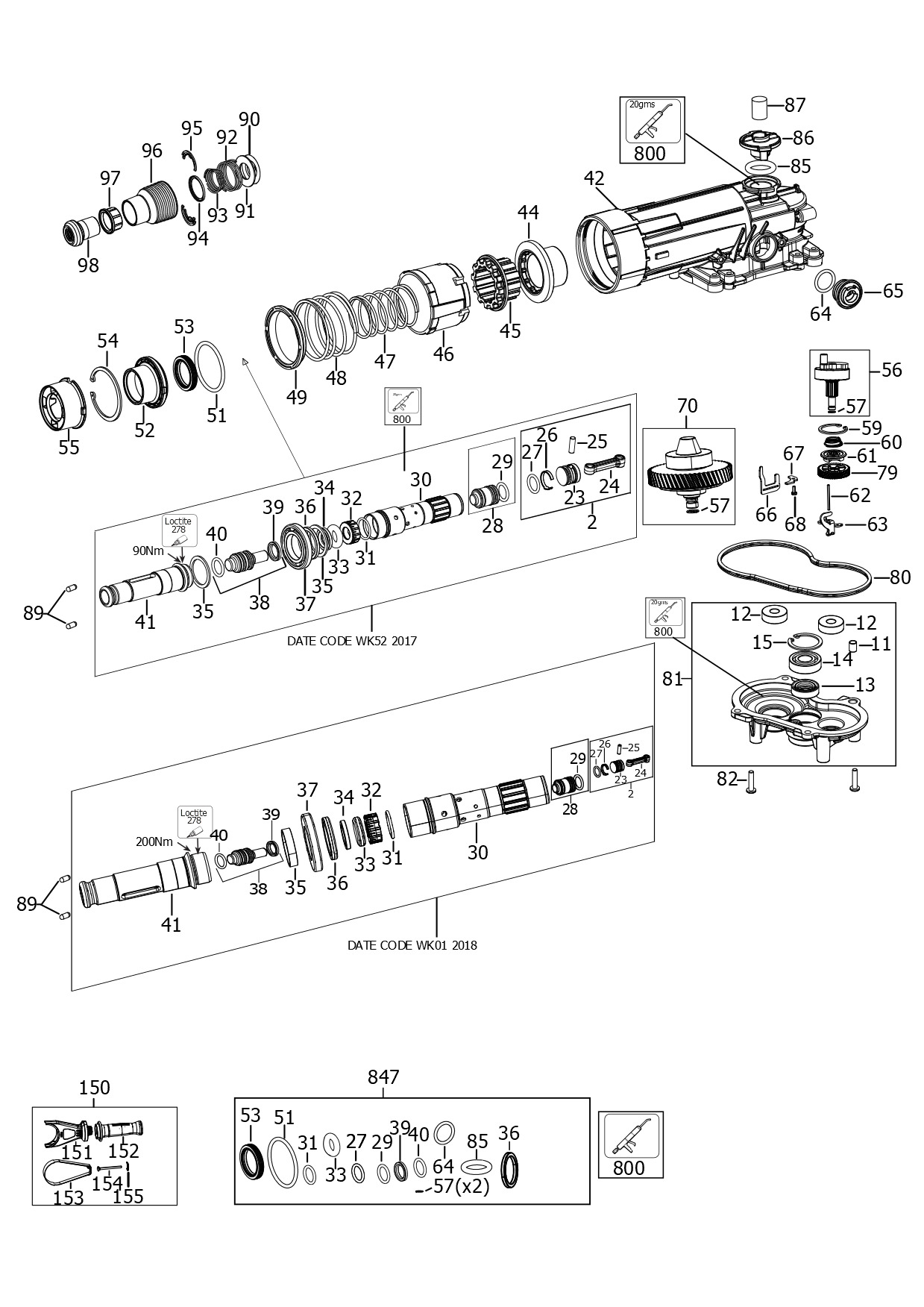

DEWALT CORDLESS HAMMER (Type 1)
SKU Produs: DCH481N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N491979 | 1 | PISTON SA | 80,04 Lei | |
| 11 | 327575-00 | 1 | SLEEVE | 5,21 Lei | |
| 12 | N110358 | 2 | BEARING | 17,02 Lei | |
| 13 | N495599 | 1 | SEAL | 17,02 Lei | |
| 14 | 577745-01 | 1 | BEARING, BALL 6001 | 30,87 Lei | |
| 15 | 488147-01 | 1 | CIRCLIP, INTERNAL 28MM | 4,57 Lei | |
| 16 | N495401 | 1 | ROTOR SA | 225,26 Lei | |
| 23 | N406776 | 1 | PISTON | 37,73 Lei | |
| 24 | N922659 | 1 | CON ROD | 8,64 Lei | |
| 25 | N446699 | 1 | PIN | 6,23 Lei | |
| 26 | N922676 | 1 | PISTON RING | 4,57 Lei | |
| 27 | N487314 | 1 | O RING | 13,85 Lei | |
| 28 | N491986 | 1 | RAM SA | 57,81 Lei | |
| 29 | N487314 | 1 | O RING | 13,85 Lei | |
| 30 | N571895 | 1 | SPINDLE SA | 433,24 Lei | |
| 31 | N410350 | 1 | O RING | 7,37 Lei | |
| 32 | N922650 | 1 | BUSH | 7,37 Lei | |
| 33 | N410349 | 1 | REBOUND DAMPER 5KG | 17,02 Lei | |
| 34 | N431708 | 1 | WASHER | 17,02 Lei | |
| 35 | N545367 | 1 | SPACER | 10,29 Lei | |
| 36 | N504457 | 1 | DAMPER | 21,85 Lei | |
| 37 | N536109 | 1 | BEARING | 57,81 Lei | |
| 38 | N492498 | 1 | BEAT PIECE | 106,98 Lei | |
| 39 | N244259 | 1 | BEATPIECE NMSH SEALING | 30,87 Lei | |
| 40 | N487314 | 1 | O RING | 13,85 Lei | |
| 41 | N571895 | 1 | SPINDLE SA | 433,24 Lei | |
| 42 | N506088 | 1 | HOUSING SA | 240,38 Lei | |
| 44 | N410187 | 1 | BEVEL GEAR | 240,38 Lei | |
| 45 | N410188 | 1 | SLEEVE | 34,05 Lei | |
| 46 | N433094 | 1 | SLEEVE | 15,12 Lei | |
| 47 | N437808 | 1 | SPRING | 5,21 Lei | |
| 48 | N437814 | 1 | SPRING | 7,37 Lei | |
| 49 | N460603 | 1 | SUPPORT | 5,21 Lei | |
| 51 | N432556 | 1 | O RING | 17,02 Lei | |
| 52 | N526257 | 1 | SLEEVE | 7,37 Lei | |
| 53 | 327141-00 | 1 | RING, SEALING 42 7 30 | 12,71 Lei | |
| 54 | N532870 | 1 | CIRCLIP | 5,21 Lei | |
| 55 | N439579 | 1 | CAP | 7,37 Lei | |
| 56 | N492496 | 1 | SA CRANK SHAFT 5KG HAMMER COMBI SERVICE | 130,35 Lei | |
| 57 | 323711-26 | 2 | O RING, 5X1.2 | 4,57 Lei | |
| 59 | N432869 | 1 | CIRCLIP | 5,21 Lei | |
| 60 | N571701 | 1 | CONICAL SPRING 5KG | 4,57 Lei | |
| 61 | N406228 | 1 | SLEEVE | 120,82 Lei | |
| 62 | N450900 | 1 | PIN | 4,57 Lei | |
| 63 | N422799 | 1 | SELECTOR FORK | 19,95 Lei | |
| 64 | N553858 | 1 | O RING | 4,57 Lei | |
| 65 | N435997 | 1 | ECCENTRIC | 7,37 Lei | |
| 66 | N422798 | 1 | PLATE | 7,37 Lei | |
| 67 | N422797 | 1 | PLATE | 5,21 Lei | |
| 68 | N445171 | 1 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 70 | N492837 | 1 | SA CLUTCH 5KG HAMMER SERVICE ONLY | 225,26 Lei | |
| 79 | N492874 | 1 | Gear | 106,98 Lei | |
| 80 | N422796 | 1 | GASKET | 7,37 Lei | |
| 81 | N491766 | 1 | HOUSING GEAR SA | 145,09 Lei | |
| 82 | 324007-11 | 8 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 83 | N491561 | 1 | MOTOR AND SWITCH SA | 713,77 Lei | |
| 85 | N504436 | 1 | O RING | 4,57 Lei | |
| 86 | N452721 | 1 | CAP | 7,37 Lei | |
| 87 | N395554 | 1 | FELT 4KG | 6,23 Lei | |
| 89 | 325878-00 | 2 | ROLLER, 8 X 20 | 8,64 Lei | |
| 90 | N038151 | 1 | FELT 31X52 | 7,37 Lei | |
| 91 | N465749 | 1 | WASHER | 7,37 Lei | |
| 92 | 323395-06 | 1 | SPRING.CPRSN 2.2/47 | 4,57 Lei | |
| 93 | 487118-00 | 1 | SPRING, CONICAL | 7,37 Lei | |
| 94 | N464690 | 1 | GUIDE | 4,57 Lei | |
| 95 | N468172 | 2 | LOCKING PIN | 6,23 Lei | |
| 96 | N464913 | 1 | SLEEVE | 41,93 Lei | |
| 97 | 326575-01 | 1 | SLEEVE, SDS, YELLOW (SUBC) | 21,85 Lei | |
| 98 | N465586 | 1 | LIP SEAL | 52,22 Lei | |
| 99 | N429783 | 1 | COVER | 30,87 Lei | |
| 100 | N447275 | 1 | HOUSING MOTOR | 41,93 Lei | |
| 101 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 104 | N463363 | 1 | SIDE RH | 7,37 Lei | |
| 106 | N445171 | 3 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 107 | N464282 | 1 | SA MODE CHANGE KNOB 5KG | 13,85 Lei | |
| 108 | 330065-08 | 21 | SCREW M4X18 | 4,57 Lei | |
| 109 | N508059 | 1 | CLAMSHELL SET | 70,39 Lei | |
| 110 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 111 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 112 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 113 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 114 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 118 | N106188 | 1 | SPRING, AV 4KG HANDLE | 6,23 Lei | |
| 119 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 120 | N452042 | 1 | BELLOWS | 10,29 Lei | |
| 121 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 123 | N463143 | 1 | CLAMSHELL SET | 37,73 Lei | |
| 124 | 656183-00 | 1 | GUIDE, LIGHT ALC DRILL | 6,23 Lei | |
| 125 | N467008 | 1 | INDICATOR | 19,95 Lei | |
| 132 | N467729 | 1 | LED LIGHT | 25,54 Lei | |
| 133 | N431413 | 1 | END CAP | 41,93 Lei | |
| 140 | N481101 | 1 | LABEL | 4,57 Lei | |
| 141 | N479463 | 1 | LABEL | 4,57 Lei | |
| 142 | N479473 | 1 | LABEL | 4,57 Lei | |
| 143 | N481100 | 1 | LABEL | 4,57 Lei | |
| 144 | N479462 | 1 | LABEL | 4,57 Lei | |
| 151 | N466673 | 1 | CLAMP | 25,54 Lei | |
| 152 | N533870 | 1 | HANDLE SA | 57,81 Lei | |
| 153 | N466679 | 1 | CLAMP | 34,05 Lei | |
| 154 | N466678 | 1 | MUSHROOM HEAD BOLT M6x75 ISO 8677 | 6,23 Lei | |
| 155 | N466677 | 1 | CLAMP WASHER 15mm | 4,57 Lei | |
| 160 | N196274 | 1 | LABEL | 4,57 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 821 | NA132539 | 1 | RATING LABEL | 4,57 Lei |
