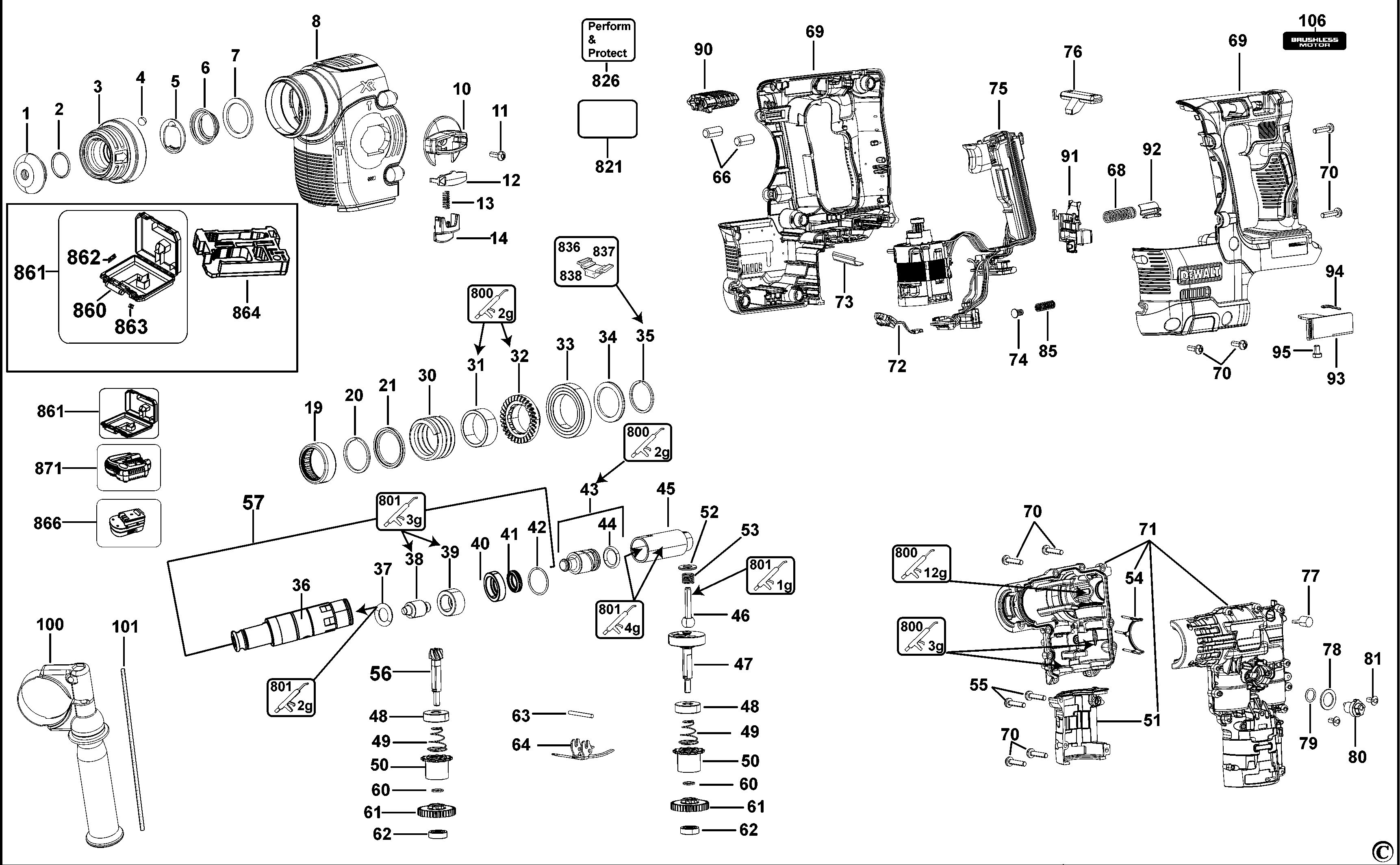

DEWALT ROTARY HAMMER (Type 2)
SKU Produs: DCH273 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 2 | 579212-00 | 1 | RING SNAP 21 | 5,21 Lei | |
| 3 | N774198 | 1 | TUBE SA | 41,93 Lei | |
| 4 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 5 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 6 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 7 | 590306-00 | 1 | FELT, SPINDLE | 5,21 Lei | |
| 8 | N339199 | 1 | GEARBOX COVER BRUSHLESS (subc) | 70,39 Lei | |
| 10 | N190510 | 1 | GEAR SWITCH | 10,29 Lei | |
| 11 | 324006-16 | 1 | SCREW, TAPTITE M4 | 15,12 Lei | |
| 12 | N034134 | 1 | CAP-1 | 7,37 Lei | |
| 13 | N074923 | 1 | MODE SELECTOR SPRING | 4,57 Lei | |
| 14 | N190511 | 1 | RELEASE BUTTON | 5,21 Lei | |
| 19 | N149956 | 1 | BEARING NEEDLE | 25,54 Lei | |
| 20 | 488105-00 | 1 | CIRCLIP SW28 | 4,57 Lei | |
| 30 | 589346-00 | 1 | SPRING, CLUTCH | 19,95 Lei | |
| 31 | N410822 | 1 | TUBE, DISTANCE | 19,95 Lei | |
| 32 | N383250 | 1 | SA BEVEL GEAR/SHAFT PINION - GROOVE MARK | 225,26 Lei | |
| 33 | 479478-00 | 1 | BEARING, BALL 6906 | 34,05 Lei | |
| 33 | 479516-00 | 1 | HAMMER PIN | 13,85 Lei | |
| 34 | N043424 | 1 | RETAINER, SPINDLE | 15,5 Lei | |
| 35 | 488390-00 | 1 | CIRCLIP SW26 1.5MM | 4,57 Lei | |
| 36 | N477771 | 1 | SPINDLE SDS NQCC | 195,02 Lei | |
| 37 | N394276 | 1 | O-RING 13X4 | 6,23 Lei | |
| 38 | 492808-00 | 1 | PIECE BEAT, DCH (SERVICE) | 25,54 Lei | |
| 39 | N470388 | 1 | GUIDE BEAT PIECE | 13,85 Lei | |
| 40 | N531681 | 1 | RAM CATCHER OPP/MPP | 15,12 Lei | |
| 41 | 580990-00 | 1 | RING RAMCATCHER | 8,64 Lei | |
| 42 | N294259 | 1 | RING SNAP 22.5 | 4,57 Lei | |
| 43 | N178363 | 1 | SERVICE KIT RAM (SERVICE) | 41,93 Lei | |
| 44 | N114827 | 1 | RING, O DYNAMIC 13X3 | 5,21 Lei | |
| 45 | 492822-00 | 1 | HOLLOW PISTON, DCH (SERVICE) | 96,56 Lei | |
| 46 | 492823-00 | 1 | PIN-BALL, DCH (SERVICE) | 37,73 Lei | |
| 47 | N288223 | 1 | SA CRANK SHAFT (SERVICE) | 130,35 Lei | |
| 48 | N168103 | 2 | BALL BEARING 608 | 12,71 Lei | |
| 49 | N466046 | 1 | SPRING, TRANSMISSION | 4,57 Lei | |
| 50 | N150085 | 2 | COLLAR, TRANSMISSION D-SHAPE | 13,85 Lei | |
| 51 | N382169 | 1 | MOTORCOVER BL | 30,87 Lei | |
| 52 | N108992 | 1 | WASHER | 4,57 Lei | |
| 53 | 490286-00 | 1 | SPRING | 4,57 Lei | |
| 54 | N323159 | 1 | SEAL GB COVER PM50FL 36V | 7,37 Lei | |
| 55 | 330019-81 | 2 | SCREW PLSTC THD FORM M4.06X30 | 4,57 Lei | |
| 56 | N383250 | 1 | SA BEVEL GEAR/SHAFT PINION - GROOVE MARK | 225,26 Lei | |
| 57 | N719465 | 1 | SERVICE KIT SA SPINDLE,SDS BL NQCC | 264,01 Lei | |
| 60 | 323763-10 | 2 | RING. SNAP 8 | 4,57 Lei | |
| 61 | N450704 | 2 | SA GEAR 3M WIDTH BEARING (SERVICE) | 96,56 Lei | |
| 62 | N621023 | 2 | BEARING, BALL 625 | 13,85 Lei | |
| 63 | 590312-00 | 1 | PIN | 4,57 Lei | |
| 64 | 575022-00 | 1 | PLATE, TRANSMISSION | 13,85 Lei | |
| 66 | 575032-00 | 2 | PIN, CYLINDER 8*18, AVS | 6,23 Lei | |
| 68 | N416466 | 1 | SPRING, BOTTOM DCH BRUSHLESS | 6,23 Lei | |
| 69 | NA221150 | 1 | HANDLE SA | 130,35 Lei | |
| 70 | 330019-80 | 24 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 71 | N421951 | 1 | SA GEARBOX DCH-B-LESS (SERVICE) | 240,38 Lei | |
| 71 | N422048 | 1 | UPPER LEFT BUMPER | 4,7 Lei | |
| 71 | N422049 | 1 | UPPER RIGHT BUMPER | 4,7 Lei | |
| 72 | N051450 | 1 | SA LED DCH ZODIAC | 30,87 Lei | |
| 73 | N094649 | 1 | STEEL-LATCH DCH ZODIAC | 7,37 Lei | |
| 74 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 75 | N463936 | 1 | SBS DCH SA CONTROL MOD AND MOTOR DCH EU | 613,14 Lei | |
| 76 | N072124 | 1 | F-R BAR DCH ZODIAC | 5,21 Lei | |
| 77 | 582865-00 | 1 | FELT | 5,21 Lei | |
| 78 | 1006725-00 | 1 | WASHER, 12X18X1.2 | 4,57 Lei | |
| 79 | 323711-34 | 1 | "O RING, 9 X 1.5" | 4,57 Lei | |
| 80 | 575025-00 | 1 | MODE SELECTOR, LEVER | 25,54 Lei | |
| 81 | 330065-04 | 2 | SCREW, PLASTIC 4 * 8 | 4,57 Lei | |
| 85 | N119679 | 1 | SPRING | 4,57 Lei | |
| 90 | N376306 | 1 | SA AVS DCH BL | 25,54 Lei | |
| 91 | N389213 | 1 | MOTOR CLIP BL | 8,64 Lei | |
| 92 | N400088 | 1 | SPRING CAP | 6,23 Lei | |
| 93 | N461541 | 1 | BELT HOOK SDS PL HP | 41,93 Lei | |
| 94 | N400082 | 1 | SPRING DETENT | 17,02 Lei | |
| 95 | N400130 | 1 | BAYONET LOCK BELT HOOK | 4,57 Lei | |
| 100 | N112156 | 1 | SIDE HANDLE | 96,56 Lei | |
| 101 | N290613 | 1 | DEPTH STOP | 7,37 Lei | |
| 106 | N415919 | 1 | LABEL - BRUSHLESS MOTOR | 4,57 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 826 | N196274 | 1 | LABEL | 4,57 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 526,5 Lei | |
| 837 | 596006-99 | 1 | SERVICE TOOLING KIT | 229,58 Lei | |
| 838 | 596007-99 | 1 | SERVICE TOOLING KIT | 251,69 Lei | |
| 860 | H1400196008 | 1 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | 576657-05 | 1 | KITBOX DCH ZODIAC (MOULD) | 120,82 Lei | |
| 861 | 576660-05 | 1 | DC232 RATING PLATE, DCH | 16,6 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | N565020 | 1 | DCH TSTAK II TRAY,BATTS AND CHARGER | 57,81 Lei |
