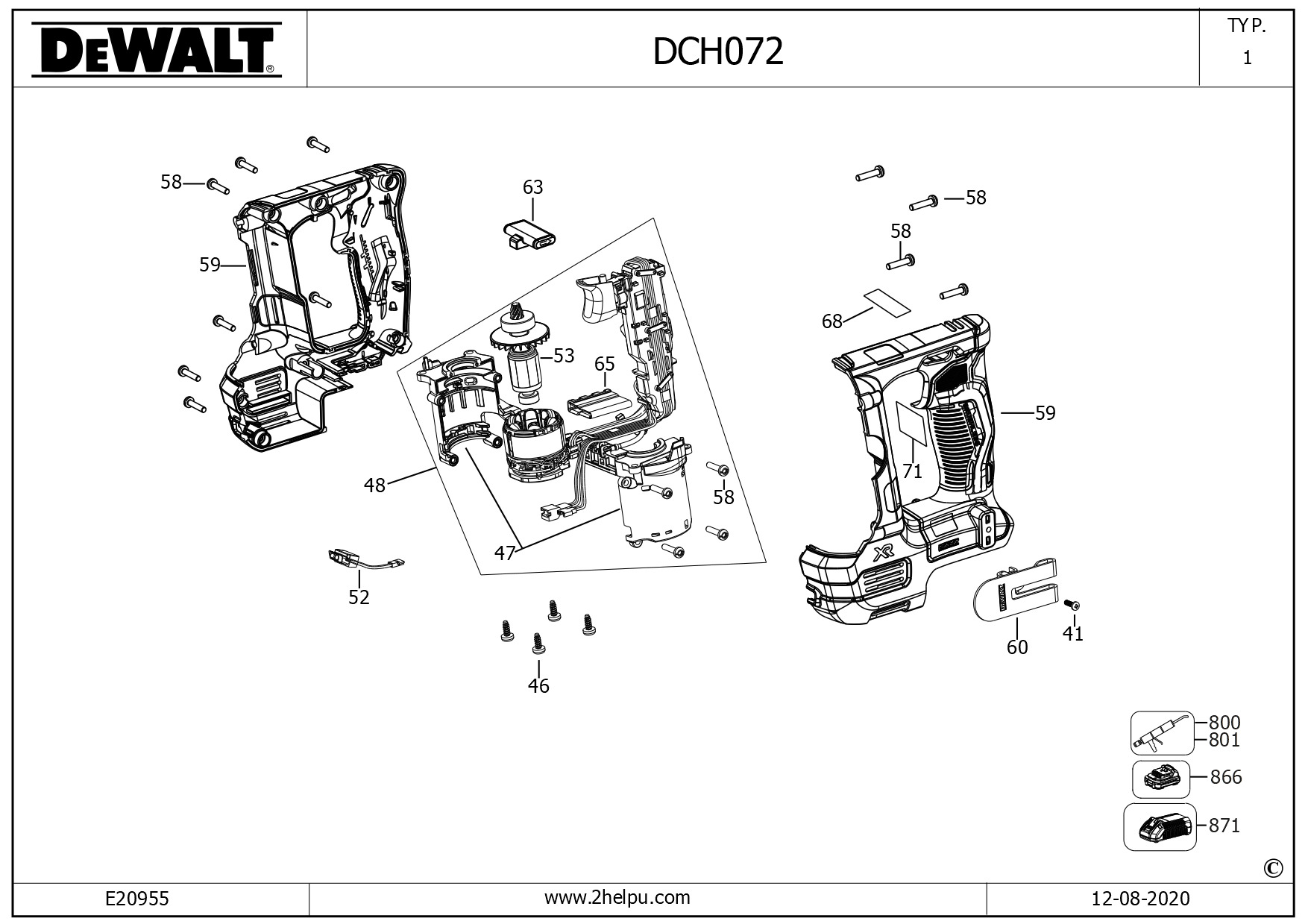

DEWALT CORDLESS HAMMER (Type 1)
SKU Produs: DCH072N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 2 | 579212-00 | 1 | RING SNAP 21 | 5,21 Lei | |
| 3 | N720573 | 1 | SA SLIDING TUBE | 15,12 Lei | |
| 4 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 5 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 6 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 7 | N911375 | 1 | GEARCASE COVER SA | 88,55 Lei | |
| 10 | N911077 | 1 | SPINDLE SA | 169,36 Lei | |
| 11 | N437972 | 1 | O RING | 4,57 Lei | |
| 12 | N911108 | 1 | BEAT PIECE | 52,22 Lei | |
| 13 | N437968 | 1 | GUIDE | 19,95 Lei | |
| 14 | N640510 | 1 | RING | 21,85 Lei | |
| 15 | N640506 | 1 | RING | 4,57 Lei | |
| 16 | N437971 | 1 | LOCKING RING | 4,57 Lei | |
| 17 | N454570 | 1 | WASHER | 4,57 Lei | |
| 20 | N911109 | 1 | Gear | 41,93 Lei | |
| 22 | N911113 | 1 | RAM SA | 70,39 Lei | |
| 23 | N450311 | 1 | O RING | 5,21 Lei | |
| 24 | N911116 | 1 | PISTON | 57,81 Lei | |
| 25 | N437964 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 26 | N437965 | 1 | PIN | 13,85 Lei | |
| 27 | N456160 | 1 | WASHER | 10,29 Lei | |
| 28 | 330004-22 | 1 | BEARING NEEDLE | 19,95 Lei | |
| 29 | N812347 | 2 | SCREW | 4,7 Lei | |
| 29 | N812348 | 2 | SCREW | 4,57 Lei | |
| 30 | N705052 | 1 | BEARING HOUSING | 24,9 Lei | |
| 31 | N717951 | 1 | O RING | 4,57 Lei | |
| 32 | N911120 | 1 | GEARCASE | 72 Lei | |
| 33 | 1005810-00 | 1 | O-RING 22X1.5 | 5,3 Lei | |
| 33 | N264673 | 1 | O RING 22X2 | 4,57 Lei | |
| 34 | N742804 | 1 | FELT | 4,57 Lei | |
| 36 | 326467-00 | 2 | DETENT | 4,57 Lei | |
| 37 | 590306-00 | 1 | FELT, SPINDLE | 5,21 Lei | |
| 38 | N812350 | 2 | SCREW | 4,57 Lei | |
| 39 | N911132 | 1 | INTERSHAFT SA | 195,02 Lei | |
| 40 | N444144 | 1 | PLATE | 7,2 Lei | |
| 41 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 42 | N764724 | 1 | SELECTOR | 6,23 Lei | |
| 44 | N290613 | 1 | DEPTH STOP | 7,37 Lei | |
| 45 | N911714 | 1 | SIDE HANDLE | 57,81 Lei | |
| 46 | N812348 | 4 | SCREW | 4,57 Lei | |
| 47 | N719642 | 1 | CLAMSHELL SET | 12,71 Lei | |
| 48 | N911383 | 1 | MOTOR AND SWITCH SA | 361,33 Lei | |
| 49 | N458754 | 1 | SPRING | 4,57 Lei | |
| 50 | N888958 | 1 | PIN | 12,71 Lei | |
| 51 | N773741 | 1 | SPRING | 4,57 Lei | |
| 52 | N737327 | 1 | LED | 25,54 Lei | |
| 53 | N911214 | 1 | ROTOR SA | 120,82 Lei | |
| 58 | 330019-03 | 17 | Screw M3.5X16 T15 | 4,57 Lei | |
| 59 | N764726 | 1 | CLAMSHELL SET | 80,04 Lei | |
| 60 | N305589 | 1 | CLIP | 12,71 Lei | |
| 63 | N737926 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 65 | N806804 | 1 | CABLE CLAMP | 4,57 Lei | |
| 68 | N838137 | 1 | LABEL | 4,57 Lei | |
| 69 | N915124 | 2 | BRAND LABEL | 4,57 Lei | |
| 71 | NA127049 | 1 | RATING LABEL | 4,57 Lei | |
| 76 | N845324 | 1 | BUMPER | 4,57 Lei | |
| 77 | N845325 | 1 | BUMPER | 4,57 Lei | |
| 80 | NA045653 | 1 | WASHER | 4,57 Lei | |
| 81 | N593131 | 1 | PLUG | 4,57 Lei | |
| 82 | N694877 | 1 | ADAPTOR | 5,21 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 846 | N911220 | 1 | SERVICE KIT | 88,55 Lei |
