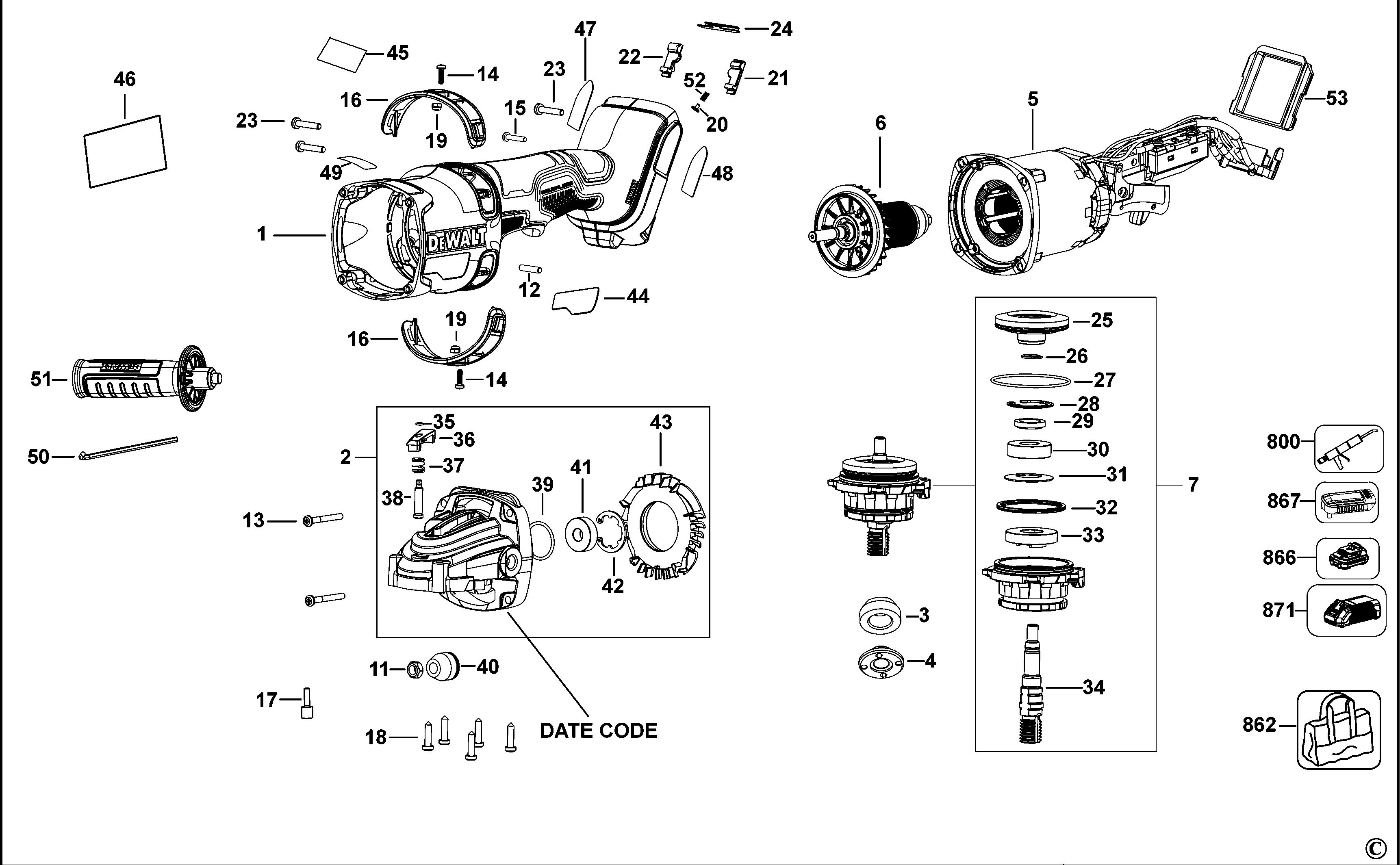

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DCG4610T2 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N575277 | 1 | CLAMSHELL SET | 120,82 Lei | |
| 11 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 12 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 13 | N412210 | 4 | SCREW | 4,57 Lei | |
| 14 | N575500 | 1 | SCREW | 4,57 Lei | |
| 15 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 16 | N436965 | 2 | VENT | 17,02 Lei | |
| 17 | N130031 | 1 | SCREW | 4,57 Lei | |
| 18 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 19 | 330015-00 | 2 | NUT | 4,57 Lei | |
| 20 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 21 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 22 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 23 | 90611830 | 7 | SCREW | 4,57 Lei | |
| 24 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 25 | N449470 | 1 | Gear | 130,35 Lei | |
| 26 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 27 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 28 | N481950 | 1 | RETAINER RING | 4,57 Lei | |
| 29 | N390307 | 1 | SPACER | 10,29 Lei | |
| 30 | 605040-24 | 1 | BEARING | 13,85 Lei | |
| 31 | N390308 | 1 | WASHER SPRING | 6,23 Lei | |
| 32 | N542715 | 1 | WASHER SPRING | 6,23 Lei | |
| 33 | N448927 | 1 | WASHER | 17,02 Lei | |
| 34 | N449565 | 1 | SPINDLE | 34,05 Lei | |
| 35 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 36 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 37 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 38 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 39 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 40 | N461411 | 1 | PINION | 25,54 Lei | |
| 41 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 42 | N453031 | 1 | RET RING w FINGERS | 4,57 Lei | |
| 43 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 44 | N456830 | 1 | BRAND LABEL | 4,57 Lei | |
| 45 | N456232 | 1 | LABEL | 4,57 Lei | |
| 47 | N456831 | 1 | BRAND LABEL | 4,57 Lei | |
| 48 | N456832 | 1 | BRAND LABEL | 4,57 Lei | |
| 49 | N456231 | 1 | LABEL | 4,57 Lei | |
| 50 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 51 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 52 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 53 | N532926 | 1 | POTTING BOX, AK61 | 5,21 Lei | |
| 101 | N645894 | 1 | DUST PORT | 25,54 Lei | |
| 102 | N651615 | 1 | COVER | 10,29 Lei | |
| 103 | N645891 | 1 | CLAMSHELL HALF | 52,22 Lei | |
| 104 | N645890 | 1 | CLAMSHELL HALF | 41,93 Lei | |
| 105 | N646433 | 1 | SPRING | 5,21 Lei | |
| 106 | N645896 | 1 | PIN | 15,12 Lei | |
| 107 | N743974 | 1 | WASHER | 4,57 Lei | |
| 108 | 098197-10 | 1 | WASHER LOCK | 4,57 Lei | |
| 109 | 153778-01 | 1 | Mach screw | 4,57 Lei | |
| 110 | N646437 | 1 | BACKPLATE | 19,95 Lei | |
| 111 | N646443 | 1 | STRAP | 34,05 Lei | |
| 112 | 631609-03 | 1 | SCREW | 4,57 Lei | |
| 113 | 90611830 | 10 | SCREW | 4,57 Lei | |
| 114 | N813648 | 10 | SCREW | 4,7 Lei | |
| 115 | 330019-66 | 3 | SCREW | 4,57 Lei | |
| 116 | N760650 | 8 | PLASTIC SCREW | 4,57 Lei | |
| 117 | N659081 | 1 | CLAMSHELL HALF | 25,54 Lei | |
| 118 | N645892 | 1 | CLAMSHELL HALF | 30,87 Lei | |
| 119 | N116219 | 2 | NUT | 4,57 Lei | |
| 120 | N647700 | 1 | WINDOW | 7,37 Lei | |
| 121 | 478455-00 | 2 | SCREW | 4,57 Lei | |
| 122 | N646434 | 1 | SPRING | 4,57 Lei | |
| 123 | N645899 | 1 | LATCH BUTTON | 5,21 Lei | |
| 124 | N646432 | 1 | PIN | 4,57 Lei | |
| 125 | N770509 | 1 | SPRING | 4,57 Lei | |
| 126 | N645897 | 1 | LOCK HOOK | 34,05 Lei | |
| 127 | N646427 | 1 | STRAP | 30,87 Lei | |
| 128 | N646444 | 1 | LATCH | 41,93 Lei | |
| 129 | N646430 | 1 | BRACKET | 7,37 Lei | |
| 130 | N646428 | 1 | KNOB | 5,21 Lei | |
| 131 | N645902 | 1 | SHOE | 34,05 Lei | |
| 133 | N703486 | 4 | WHEEL | 5,21 Lei | |
| 134 | N774538 | 4 | WASHER | 4,57 Lei | |
| 135 | N703485 | 2 | AXLE | 7,37 Lei | |
| 136 | N654478 | 1 | Inner Flange | 25,54 Lei | |
| 137 | N666474 | 1 | OUTER FLANGE | 30,87 Lei | |
| 138 | N665586 | 1 | Inner Flange | 25,54 Lei | |
| 139 | N665610 | 1 | OUTER FLANGE | 25,54 Lei | |
| 140 | NA177560 | 1 | RATING LABEL | 5,21 Lei | |
| 141 | N456231 | 1 | LABEL | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 862 | 629053-00 | 1 | BAG | 96,56 Lei | |
| 867 | N462141 | 1 | SAFETY CAP | 41,93 Lei |
