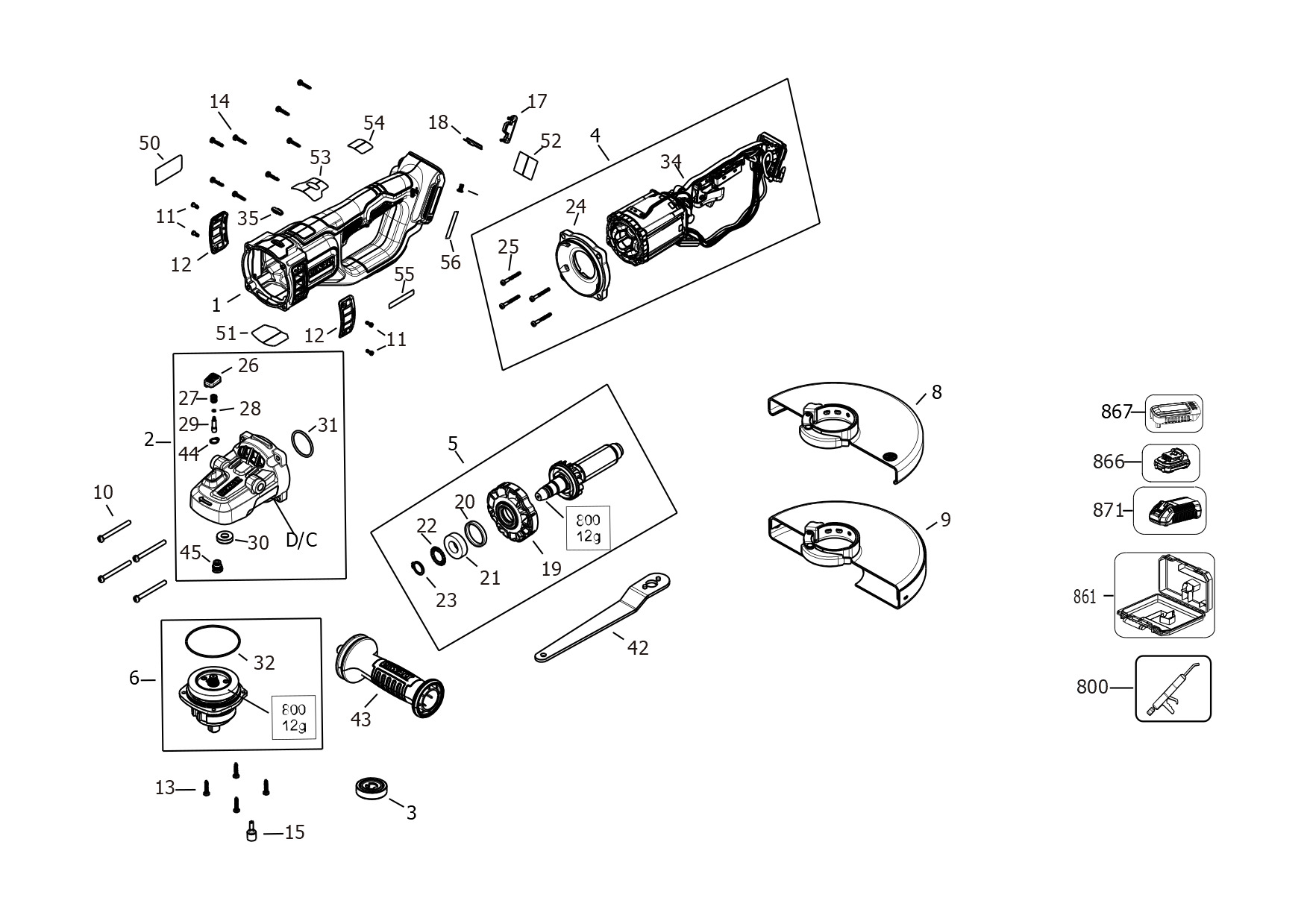

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DCG460NK /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | NA216567 | 1 | GEARCASE SA | 238,88 Lei | |
| 2 | NA381484 | 1 | SERVICE KIT | 620,13 Lei | |
| 3 | NA374656 | 1 | COLLET NUT SA | 58,17 Lei | |
| 4 | NA216568 | 1 | MOTOR SWITCH SA | 1,48 Lei | |
| 5 | NA216569 | 1 | ROTOR SA | 471,87 Lei | |
| 6 | NA216571 | 1 | GEARCASE COVER SA | 373,38 Lei | |
| 6 | NA381484 | 1 | SERVICE KIT | 620,13 Lei | |
| 8 | NA179697 | 1 | GUARD | 88,41 Lei | |
| 9 | NA216780 | 1 | SA GUARD LAG KEYLESS 230MM DIAMOND | 119,91 Lei | |
| 10 | 330019-74 | 4 | SCREW | 3,78 Lei | |
| 11 | N494046 | 4 | SCREW | 4,57 Lei | |
| 12 | NA216572 | 2 | VENT | 25,52 Lei | |
| 13 | 330045-07 | 4 | SCREW | 4,57 Lei | |
| 14 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 15 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 16 | NA105798 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 17 | NA612330 | 1 | COVER | 5,15 Lei | |
| 18 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 19 | NA097380 | 1 | EXHAUST | 12,5 Lei | |
| 20 | NA097375 | 1 | WASHER | 4,31 Lei | |
| 21 | 605040-41 | 1 | BEARING | 25,54 Lei | |
| 22 | N132602 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 23 | NA013710 | 1 | RING | 3,78 Lei | |
| 24 | NA151830 | 1 | PLATE | 58,17 Lei | |
| 25 | N412210 | 4 | SCREW | 4,57 Lei | |
| 26 | NA097373 | 1 | BUTTON | 6,09 Lei | |
| 27 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 28 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 29 | NA013709 | 1 | PIN | 7,14 Lei | |
| 30 | 605040-79 | 1 | BEARING BALL | 12,5 Lei | |
| 31 | N226986 | 1 | O RING | 10,29 Lei | |
| 32 | NA013711 | 1 | O RING | 6,09 Lei | |
| 35 | N394333 | 1 | LENS | 4,57 Lei | |
| 42 | NA252487 | 1 | SA SPANNER WRENCH | 18,06 Lei | |
| 43 | N241543 | 1 | SIDE HANDLE | 106,98 Lei | |
| 44 | NA290949 | 1 | RING | 3,78 Lei | |
| 45 | NA267882 | 1 | SLEEVE | 34,65 Lei | |
| 50 | NA155770 | 1 | RATING LABEL | 3,78 Lei | |
| 51 | NA155775 | 1 | LABEL | 3,78 Lei | |
| 52 | N883093 | 1 | LABEL | 3,78 Lei | |
| 53 | NA246973 | 1 | LABEL | 3,78 Lei | |
| 54 | N456232 | 1 | LABEL | 4,57 Lei | |
| 55 | NA156455 | 1 | LABEL | 3,78 Lei | |
| 56 | N862626 | 1 | LABEL | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 846 | N545570 | 1 | SERVICE PART OF GLUE FOR WOLVERINE | 37,73 Lei | |
| 861 | NA217504 | 1 | KITBOX | 373,38 Lei |
