DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DCG440NLR /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N921148 | 1 | CLAMSHELL SET | 88,55 Lei | |
| 2 | NA015836 | 1 | GEARCASE SA | 181,55 Lei | |
| 3 | N465489 | 1 | COVER | 30,87 Lei | |
| 4 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 5 | NA015839 | 1 | MOTOR AND SWITCH SA | 980,83 Lei | |
| 6 | NA015840 | 1 | ROTOR SA | 375,31 Lei | |
| 7 | NA015843 | 1 | GEARCASE COVER | 389,28 Lei | |
| 9 | N775399 | 1 | GUARD | 88,55 Lei | |
| 11 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 12 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 13 | N412210 | 4 | SCREW | 4,57 Lei | |
| 14 | N575500 | 2 | SCREW | 4,57 Lei | |
| 16 | N436965 | 2 | VENT | 17,02 Lei | |
| 18 | 330045-06 | 6 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 19 | 330015-00 | 2 | NUT | 4,57 Lei | |
| 20 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 21 | N787996 | 1 | INSERT | 4,57 Lei | |
| 22 | N831593 | 2 | SCREW | 4,57 Lei | |
| 23 | 330019-04 | 7 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 24 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 25 | NA015847 | 1 | Gear | 106,98 Lei | |
| 26 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 27 | N453817 | 1 | O RING | 4,57 Lei | |
| 28 | N481950 | 1 | RETAINER RING | 4,57 Lei | |
| 29 | N775050 | 1 | RING | 4,57 Lei | |
| 30 | N472554 | 1 | BEARING | 15,12 Lei | |
| 31 | N774755 | 3 | WASHER SPRING | 7,37 Lei | |
| 33 | N835583 | 1 | FLANGE | 106,98 Lei | |
| 34 | N776988 | 1 | SPINDLE | 96,56 Lei | |
| 35 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 36 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 37 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 38 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 39 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 40 | NA074142 | 1 | PINION | 34,05 Lei | |
| 41 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 42 | N453031 | 1 | RET RING w FINGERS | 4,57 Lei | |
| 43 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 44 | N870782 | 1 | BRAND LABEL | 4,57 Lei | |
| 46 | N862585 | 1 | RATING PLATE | 4,57 Lei | |
| 47 | N862624 | 1 | LABEL | 4,7 Lei | |
| 48 | N862626 | 1 | LABEL | 4,57 Lei | |
| 50 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 51 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 52 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 53 | N496832 | 1 | ADAPTOR | 21,85 Lei | |
| 54 | N456232 | 1 | LABEL | 4,57 Lei | |
| 55 | NA066293 | 1 | WASHER | 4,57 Lei | |

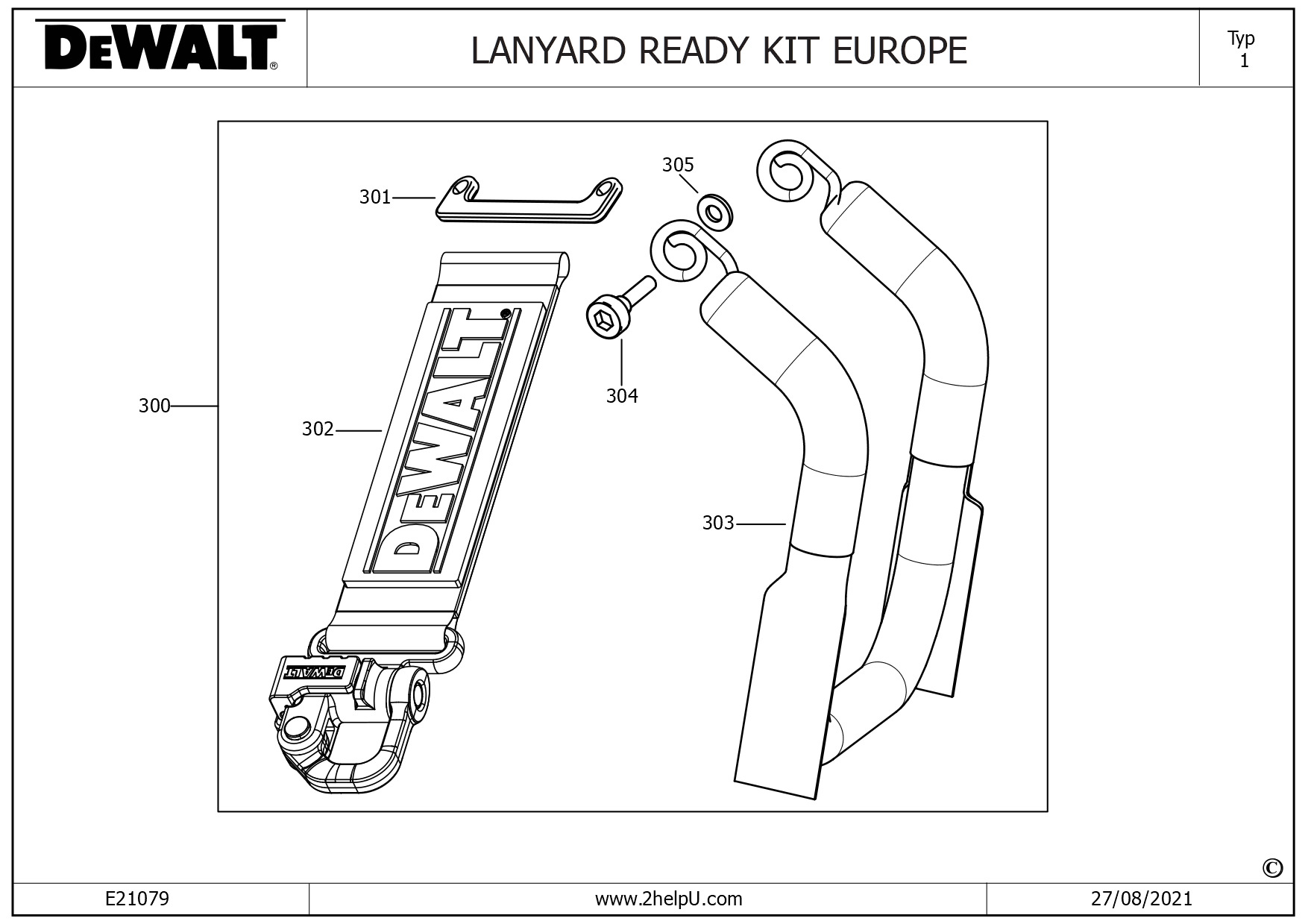

| 300 | NA012362 | 1 | SERVICE KIT | 157,92 Lei | |
| 301 | N537349 | 2 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | N532558 | 1 | 7 INCH GUARD | 145,09 Lei | |
| 836 | N801781 | 1 | SERVICE TOOL | 10,29 Lei | |
| 846 | N545570 | 1 | SERVICE PART OF GLUE FOR WOLVERINE | 37,73 Lei | |
| 862 | 629053-00 | 1 | BAG | 96,56 Lei |
