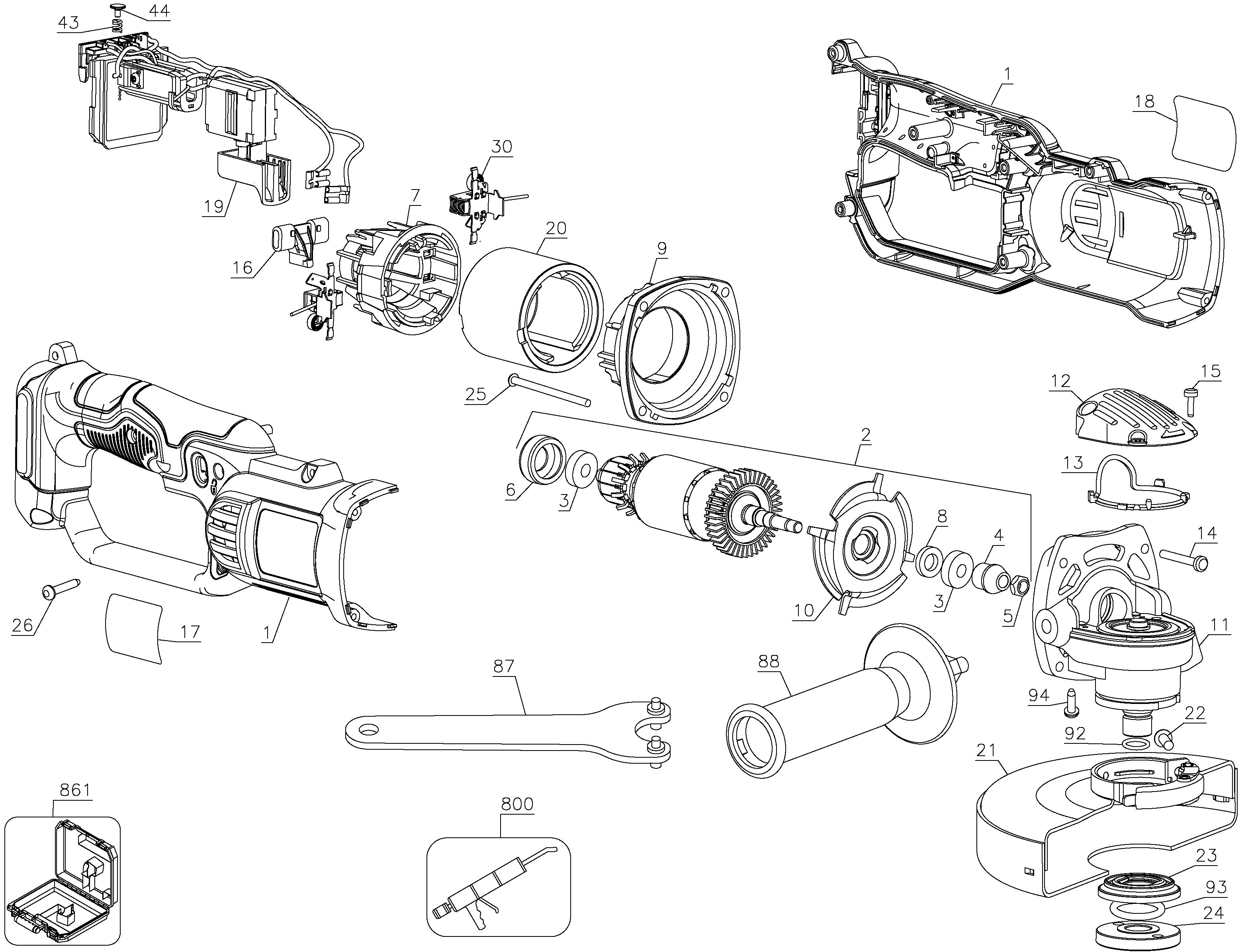

DEWALT KITBOX / DCG422N - KIT CO Type 1
SKU Produs: DCG422KN
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N110359 | 2 | BALL BEARING | 8,64 Lei | |
| 4 | 623564-00 | 1 | PINION | 34,05 Lei | |
| 5 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 6 | 631563-00 | 1 | BOOT | 4,57 Lei | |
| 8 | 623617-00 | 1 | FELT SEAL | 4,57 Lei | |
| 10 | N422242 | 1 | RETAINER | 7,5 Lei | |
| 11 | N042060SV | 1 | GEARCASE SA | 246,5 Lei | |
| 12 | 623562-00 | 1 | GEARCASE COVER | 17,4 Lei | |
| 13 | 623618-00 | 1 | GASKET | 7,37 Lei | |
| 14 | 330065-13 | 4 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 15 | 385676-01 | 4 | SCREW | 4,57 Lei | |
| 16 | N129056 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 21 | N039878 | 1 | GUARD SA | 52,22 Lei | |
| 22 | 631609-03 | 1 | SCREW | 4,57 Lei | |
| 23 | 633257-00SV | 1 | INNER FLANGE SA (SV) | 10,29 Lei | |
| 24 | 622613-02 | 1 | OUTER FLANGE | 15,12 Lei | |
| 25 | 330019-25 | 2 | SCREW, PLASTIC THD FORM, M3.5X65 T15 | 4,7 Lei | |
| 26 | 330019-04 | 6 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 30 | 610126-00 | 2 | BRUSH SA | 19,95 Lei | |
| 43 | N102647 | 1 | COIL TERMINAL BLOCK SPRING | 4,57 Lei | |
| 44 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 87 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 88 | N401305 | 1 | SIDE HANDLE | 19,95 Lei | |
| 92 | 633045-00 | 1 | O RING | 4,57 Lei | |
| 93 | 633043-00 | 1 | O RING | 5,21 Lei | |
| 94 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 861 | N132422 | 1 | KITBOX | 230,5 Lei |
