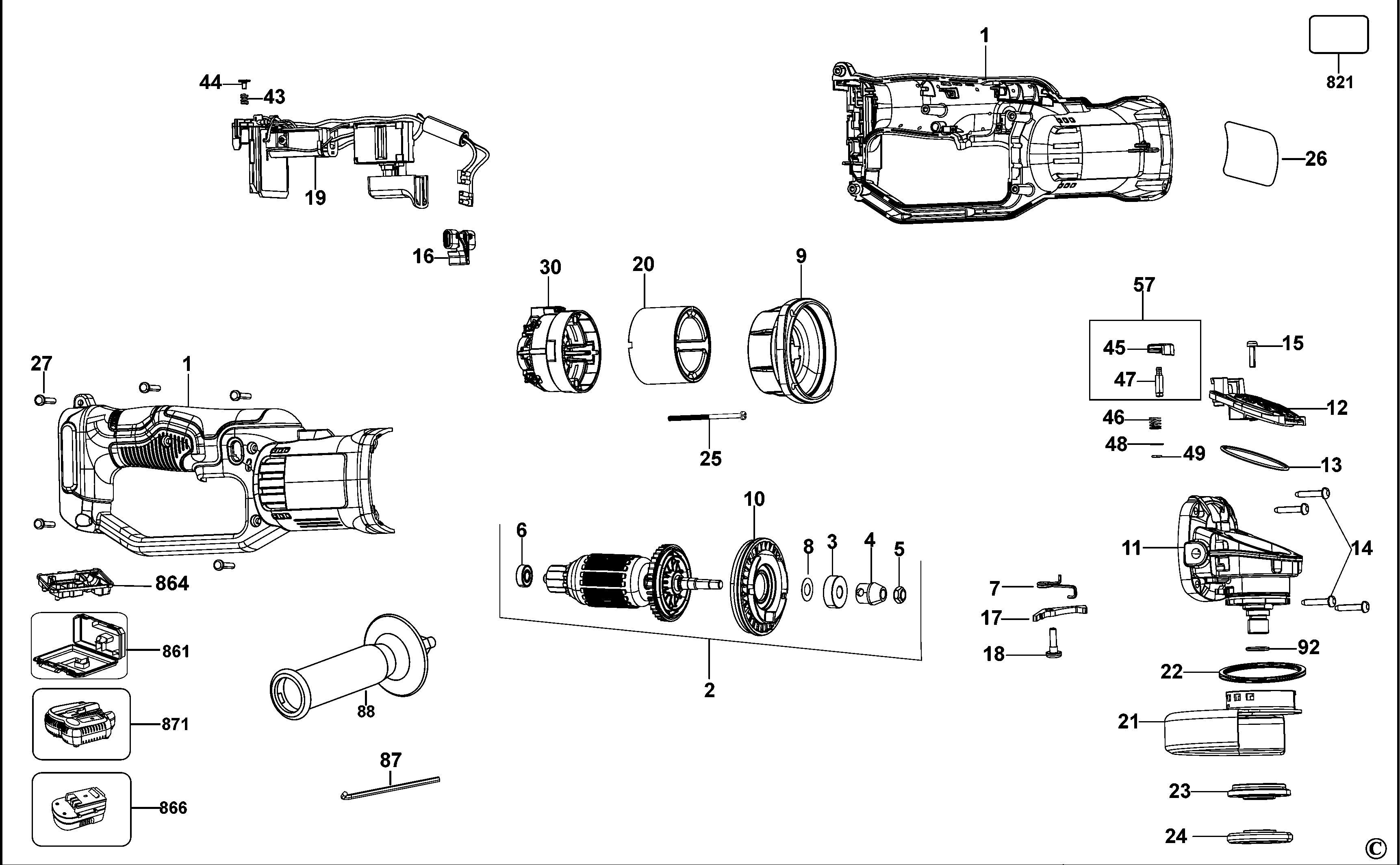

DEWALT ANGLE GRINDER (Type 11)
SKU Produs: DCG412 /Type: 11
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N532927 | 1 | SA CUT OFF TOOL HOUSING 4-POLES | 70,39 Lei | |
| 2 | N793841 | 1 | ARMATURE SA | 200,99 Lei | |
| 3 | N214432 | 1 | BEARING | 7,37 Lei | |
| 4 | N095840 | 1 | PINION | 21,85 Lei | |
| 5 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 6 | N330639 | 1 | BEARING | 17,02 Lei | |
| 7 | N105579 | 1 | SPRING | 4,57 Lei | |
| 8 | N213812 | 1 | WASHER | 4,57 Lei | |
| 9 | N531815 | 1 | BAFFLE | 17,02 Lei | |
| 10 | N478436 | 1 | STATOR | 7,37 Lei | |
| 11 | N748009 | 1 | SERVICE KIT SA GEARCASE WITH COVER M14 | 252,58 Lei | |
| 12 | N116180 | 1 | GEARCASE COVER | 5,21 Lei | |
| 13 | N094024 | 1 | O RING | 4,57 Lei | |
| 14 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 15 | N122904 | 4 | SCREW M3 5X0,6 | 4,57 Lei | |
| 16 | N129056 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 17 | N136731 | 1 | LEVER | 7,37 Lei | |
| 18 | N137733 | 1 | SCREW | 4,57 Lei | |
| 19 | N414107 | 1 | SWITCH SA | 181,55 Lei | |
| 20 | N436044 | 1 | SSA MAGNET RING | 52,22 Lei | |
| 21 | N194230 | 1 | GUARD | 30,87 Lei | |
| 22 | N135116 | 1 | WASHER SPRING | 6,23 Lei | |
| 23 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 24 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 25 | N389143 | 2 | SCREW, PLASTIC THD FORM | 4,57 Lei | |
| 26 | N139498 | 1 | LABEL IDENTIFICATION DCG412 EURO | 6,23 Lei | |
| 27 | 90611830 | 5 | SCREW | 4,57 Lei | |
| 30 | N412223 | 1 | BRUSH HOLDER SA | 52,22 Lei | |
| 43 | N102647 | 1 | COIL TERMINAL BLOCK SPRING | 4,57 Lei | |
| 44 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 45 | N126105 | 1 | BUTTON | 4,57 Lei | |
| 46 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 47 | N114592 | 1 | PIN SPINDLE LOCK | 5,21 Lei | |
| 48 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 49 | N094012 | 1 | O RING | 4,57 Lei | |
| 57 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 87 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 88 | N401305 | 1 | SIDE HANDLE | 19,95 Lei | |
| 92 | N748010 | 1 | SERVICE KIT O-RING | 80,04 Lei | |
| 821 | N662231 | 1 | RATING LABEL DCG412 EURO TY11 | 5,3 Lei | |
| 861 | N615986 | 1 | MP16652-QZ TSTAK II USTI(MOULD) | 195,02 Lei | |
| 864 | N771496 | 1 | TSTAK 2 INSERT | 57,81 Lei |
