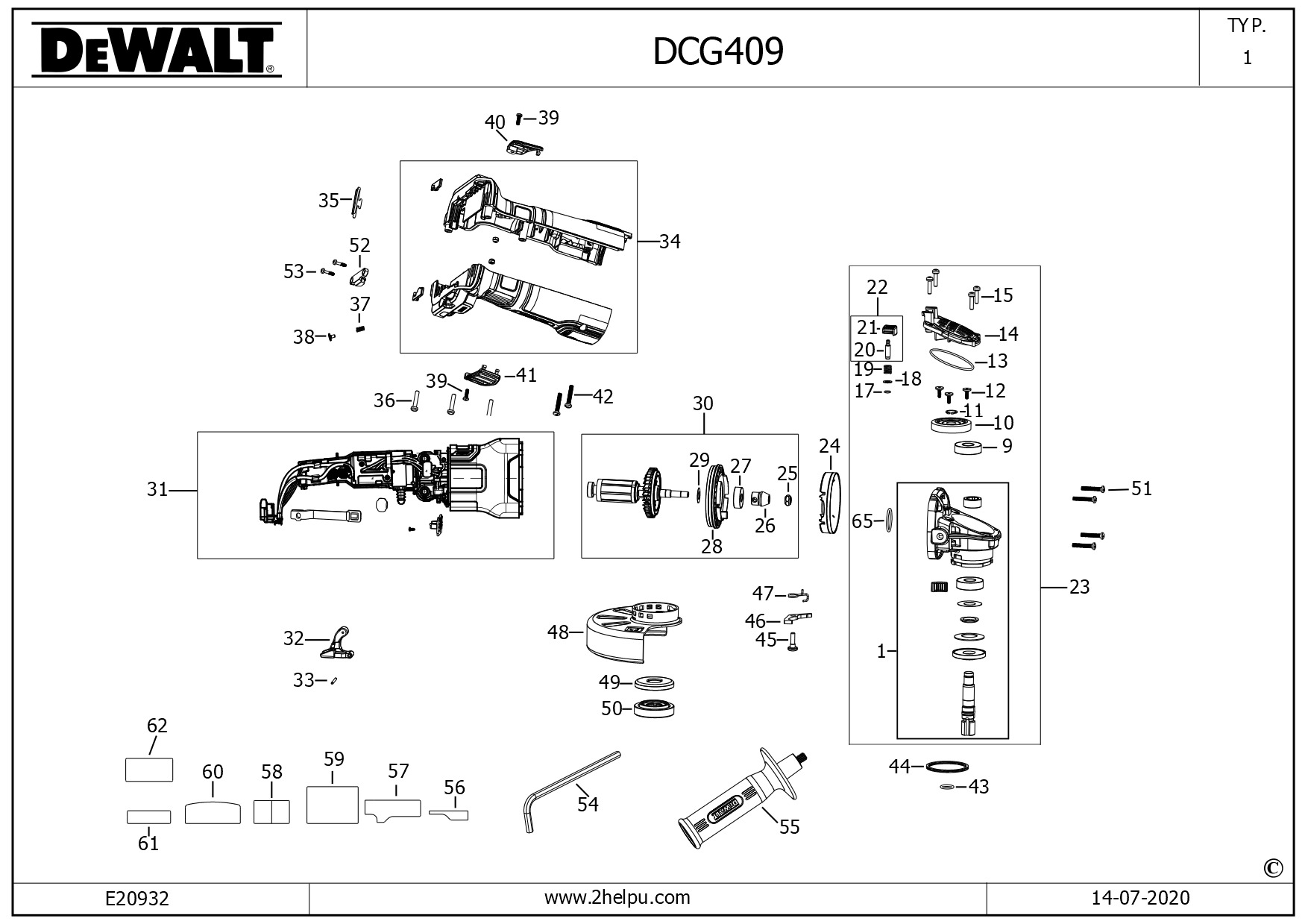

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DCG409NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 9 | N150961 | 1 | BEARING | 15,12 Lei | |
| 10 | N153126 | 1 | Gear | 25,54 Lei | |
| 11 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 12 | N118088 | 3 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 13 | N094024 | 1 | O RING | 4,57 Lei | |
| 14 | N851776 | 1 | GEARCASE COVER | 8,64 Lei | |
| 15 | N122904 | 4 | SCREW M3 5X0,6 | 4,57 Lei | |
| 17 | N094012 | 1 | O RING | 4,57 Lei | |
| 18 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 19 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 20 | N114592 | 1 | PIN SPINDLE LOCK | 5,21 Lei | |
| 21 | N126105 | 1 | BUTTON | 4,57 Lei | |
| 22 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 23 | N887982 | 1 | GEARCASE SA | 276,84 Lei | |
| 24 | N478435 | 1 | BAFFLE ARES | 5,21 Lei | |
| 25 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 26 | N153125 | 1 | PINION | 17,02 Lei | |
| 27 | N214432 | 1 | BEARING | 7,37 Lei | |
| 28 | N478436 | 1 | STATOR | 7,37 Lei | |
| 29 | N213812 | 1 | WASHER | 4,57 Lei | |
| 31 | N889066 | 1 | MOTOR HOUSING SA | 750,36 Lei | |
| 32 | N497112 | 1 | SA SLIDER LEVER | 13,85 Lei | |
| 33 | N489903 | 1 | ARES SLIDER LEVER PIN | 4,57 Lei | |
| 34 | N889065 | 1 | CLAMSHELL SET | 88,55 Lei | |
| 35 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 36 | 90611830 | 3 | SCREW | 4,57 Lei | |
| 37 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 38 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 39 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 40 | N493573 | 1 | SA VENT COVER LEFT | 13,85 Lei | |
| 41 | N493572 | 1 | SA VENT COVER RIGHT | 13,85 Lei | |
| 42 | 330065-33 | 2 | SCREW M4X34 T15 | 4,57 Lei | |
| 43 | 633044-00 | 1 | O RING | 4,57 Lei | |
| 44 | N135116 | 1 | WASHER SPRING | 6,23 Lei | |
| 45 | N137733 | 1 | SCREW | 4,57 Lei | |
| 46 | N136731 | 1 | LEVER | 7,37 Lei | |
| 47 | N105579 | 1 | SPRING | 4,57 Lei | |
| 48 | N501323 | 1 | GUARD | 34,05 Lei | |
| 49 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 50 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 51 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 52 | N787996 | 1 | INSERT | 4,57 Lei | |
| 53 | N831593 | 2 | SCREW | 4,57 Lei | |
| 54 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 55 | N421925 | 1 | SIDE HANDLE | 41,93 Lei | |
| 56 | N860997 | 1 | BRAND LABEL | 4,57 Lei | |
| 57 | N860994 | 1 | RATING PLATE | 4,57 Lei | |
| 58 | N860996 | 1 | WARNING LABEL | 4,57 Lei | |
| 59 | N499037 | 1 | LABEL | 4,57 Lei | |
| 60 | N196273 | 1 | LABEL | 4,57 Lei | |
| 61 | N861001 | 1 | LABEL | 4,57 Lei | |
| 62 | N883657 | 1 | LABEL | 4,57 Lei | |
| 65 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei |
