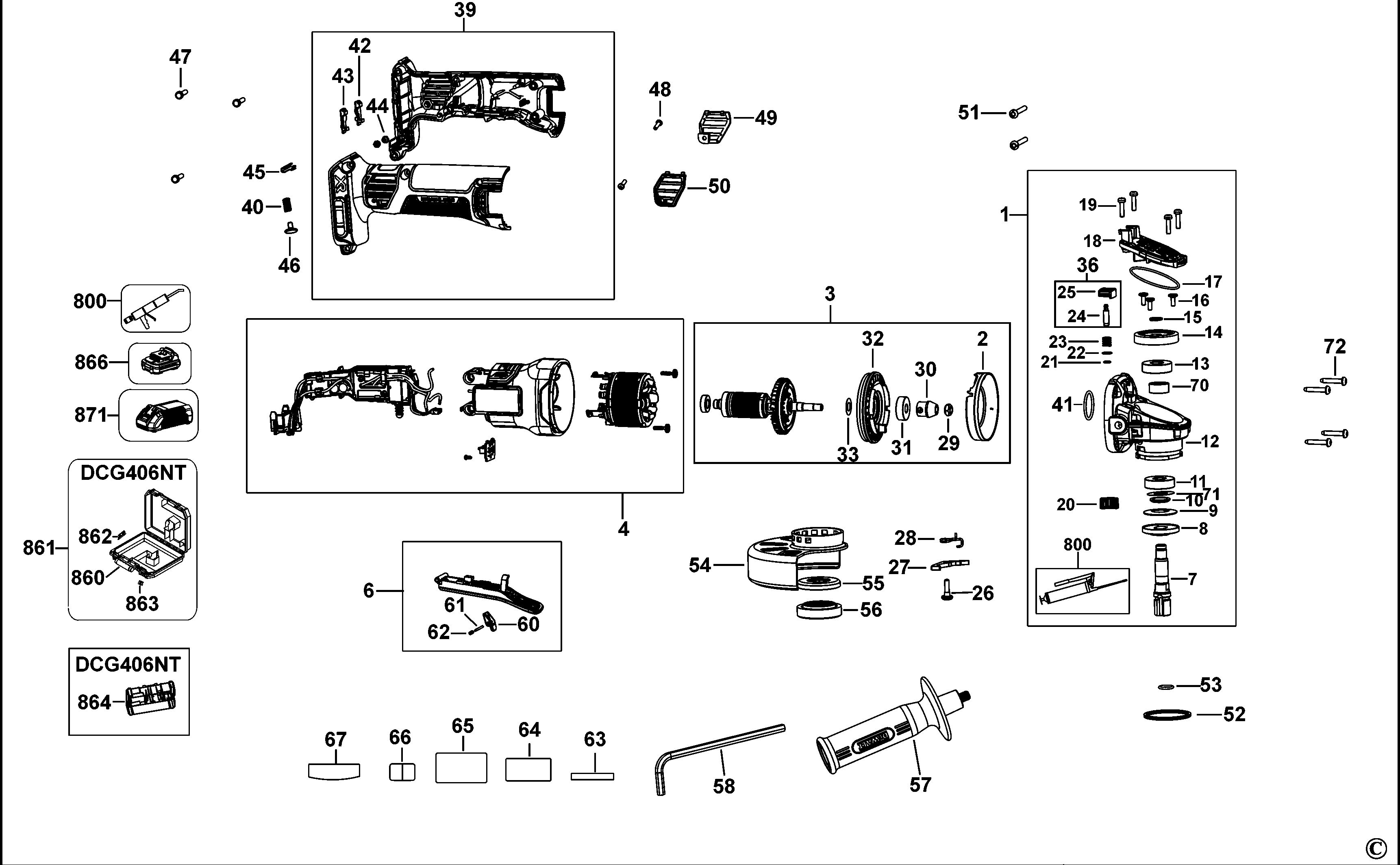

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DCG406P2LRT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N509540 | 1 | GEARCASE SA | 169,36 Lei | |
| 2 | N478435 | 1 | BAFFLE ARES | 5,21 Lei | |
| 3 | N537673 | 1 | ROTOR SA | 195,02 Lei | |
| 4 | N551802 | 1 | MOTOR AND SWITCH SA | 412,91 Lei | |
| 6 | N534716 | 1 | LEVER LOCK-OFF | 34,05 Lei | |
| 7 | N487315 | 1 | M14 WHEEL RETENTION SPINDLE FOR IRONMAN | 34,05 Lei | |
| 8 | N487316 | 1 | WASHER | 15,12 Lei | |
| 9 | N451305 | 1 | WASHER SPRING | 4,57 Lei | |
| 10 | N474213 | 1 | ARES RETENTION SPACER | 12,71 Lei | |
| 11 | N150961 | 1 | BEARING | 15,12 Lei | |
| 12 | N134203 | 1 | GEARCASE | 57,81 Lei | |
| 13 | N150961 | 1 | BEARING | 15,12 Lei | |
| 14 | N097361 | 1 | GEAR 32 TOOTH STEEL IRONMAN | 30,87 Lei | |
| 15 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 16 | N118088 | 1 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 17 | N094024 | 1 | O RING | 4,57 Lei | |
| 18 | N116180 | 1 | GEARCASE COVER | 5,21 Lei | |
| 19 | N122904 | 4 | SCREW M3 5X0,6 | 4,57 Lei | |
| 20 | N489769 | 1 | PLUG | 4,57 Lei | |
| 21 | N094012 | 1 | O RING | 4,57 Lei | |
| 22 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 23 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 24 | N114592 | 1 | PIN SPINDLE LOCK | 5,21 Lei | |
| 25 | N126105 | 1 | BUTTON | 4,57 Lei | |
| 26 | N137733 | 1 | SCREW | 4,57 Lei | |
| 27 | N136731 | 1 | LEVER | 7,37 Lei | |
| 28 | N105579 | 1 | SPRING | 4,57 Lei | |
| 29 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 30 | N095840 | 1 | PINION | 21,85 Lei | |
| 31 | N214432 | 1 | BEARING | 7,37 Lei | |
| 32 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 33 | N213812 | 1 | WASHER | 4,57 Lei | |
| 36 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 39 | N534718 | 1 | CLAMSHELL SET | 70,39 Lei | |
| 40 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 41 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 42 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 43 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 44 | 330021-11 | 2 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 45 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 46 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 47 | 330019-04 | 3 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 48 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 49 | N493573 | 1 | SA VENT COVER LEFT | 13,85 Lei | |
| 50 | N493572 | 1 | SA VENT COVER RIGHT | 13,85 Lei | |
| 51 | 330065-33 | 2 | SCREW M4X34 T15 | 4,57 Lei | |
| 52 | N135116 | 1 | WASHER SPRING | 6,23 Lei | |
| 53 | N420261 | 1 | O RING | 4,57 Lei | |
| 54 | N501323 | 1 | GUARD | 34,05 Lei | |
| 55 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 56 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 57 | N421925 | 1 | SIDE HANDLE | 41,93 Lei | |
| 58 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 60 | 397657-00 | 1 | LEVER LOCK-OFF | 5,21 Lei | |
| 61 | 099204-14 | 1 | ROLL PIN | 4,57 Lei | |
| 62 | 150264-01 | 1 | SPRING | 4,57 Lei | |
| 64 | N499034 | 1 | RATING PLATE | 4,57 Lei | |
| 66 | N499037 | 1 | LABEL | 4,57 Lei | |
| 67 | N602440 | 1 | LABEL | 4,57 Lei | |
| 70 | N095815 | 1 | SLEEVE | 5,21 Lei | |
| 71 | 638229-00 | 1 | SLINGER | 4,57 Lei | |
| 72 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 860 | H1400196008 | 2 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 2 | HANDLE | 17,02 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | N862684 | 1 | INSERT | 88,55 Lei |
