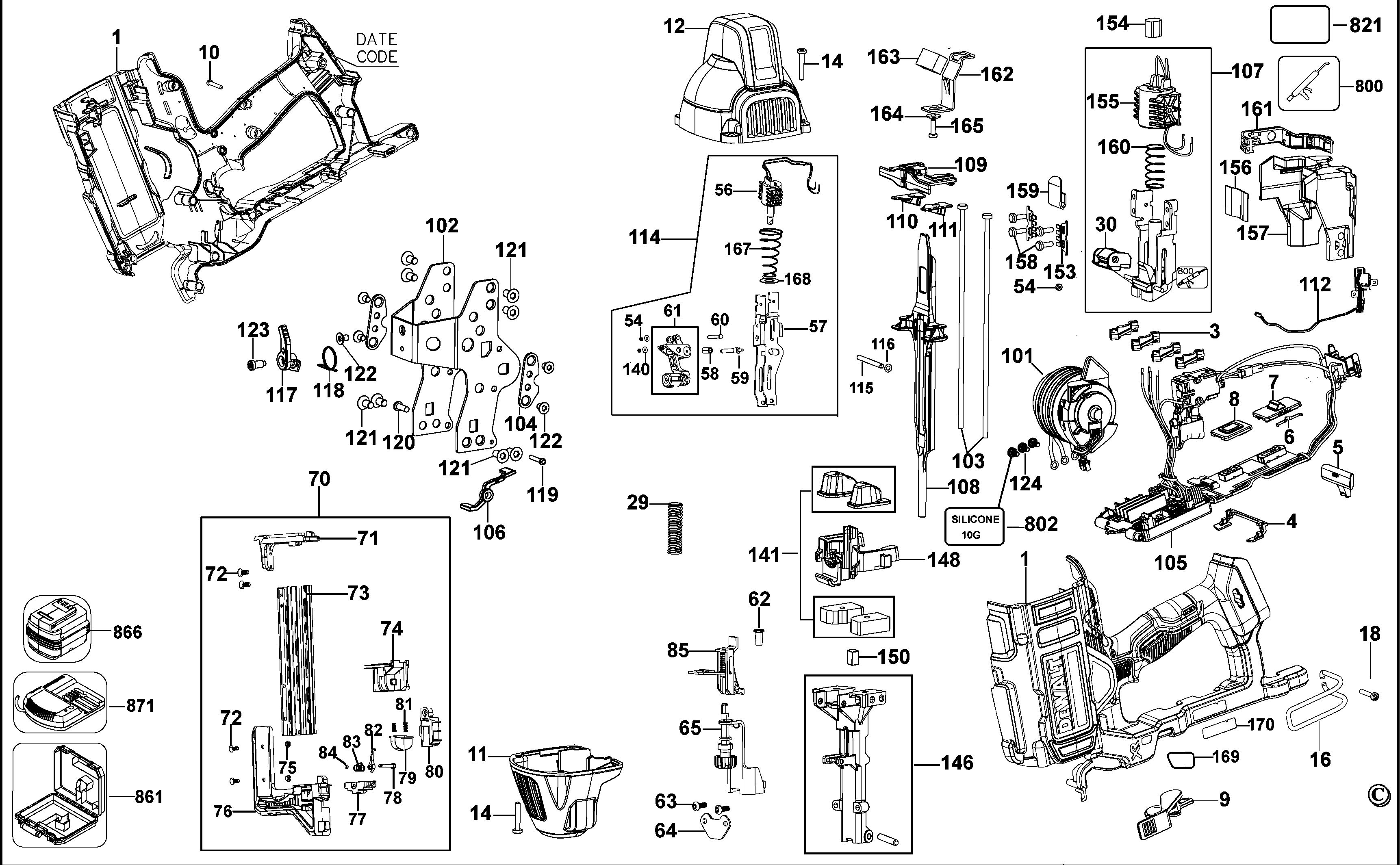

DEWALT STAPLER (Type 1)
SKU Produs: DCFS950 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N682548 | 1 | SERVICE PACKED DCFS HOUSINGS PRINTED | 246 Lei | |
| 3 | N538000 | 4 | SPLICLINE CONNECTOR | 7,5 Lei | |
| 4 | N447434 | 1 | LIGHT PIPE CCN | 7,5 Lei | |
| 5 | N499408 | 1 | LOCKOFF BAR -FS | 5,3 Lei | |
| 6 | N014681 | 2 | LEAF SPRING | 4,7 Lei | |
| 7 | N403393 | 1 | SELECTOR CAP | 6,4 Lei | |
| 8 | N463655 | 1 | MODE SELECT CAP | 7,5 Lei | |
| 9 | N401889 | 1 | MAGAZINE CAM | 5,3 Lei | |
| 10 | 330019-24 | 9 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,7 Lei | |
| 11 | N521775 | 1 | FS NOSE COVER | 15,5 Lei | |
| 12 | N521776 | 1 | FS ENDCAP | 31,6 Lei | |
| 14 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 16 | N410943 | 1 | HOOK | 17,4 Lei | |
| 18 | 330019-52 | 1 | SCREW | 4,7 Lei | |
| 29 | N384840 | 1 | SPRING CONTACT TRIP | 4,7 Lei | |
| 30 | N608536 | 1 | SERVICE PACKED SA KNOCKOVER | 42,9 Lei | |
| 54 | 391814-00 | 3 | GROMMET | 4,7 Lei | |
| 56 | N516575 | 1 | PRIMARY ACTIVATION SOLENOID AND PLUNGER | 148,5 Lei | |
| 58 | N465069 | 1 | SLEEVE | 20,4 Lei | |
| 58 | N465161 | 1 | TERMINAL BLOCK | 15,5 Lei | |
| 60 | N370200 | 1 | PAWL AXLE | 10,5 Lei | |
| 61 | N604230 | 1 | SERVICE PACK. SA SPRING BEAM + PINCH ROL | 543 Lei | |
| 62 | N504686 | 1 | CT SPRING RETAINER | 5,3 Lei | |
| 63 | N527635 | 2 | M5X14 LOW PROFILE BUTTON SCREW | 5,3 Lei | |
| 64 | N485877 | 1 | SA NOSE-FS (PHANT) | 1601,5 Lei | |
| 64 | N485878 | 1 | NOSE-AS MACHINED-FS | 1436,9 Lei | |
| 65 | N689765 | 1 | SERVICE PACKED SA DEPTH ADJUST DCFS | 218,1 Lei | |
| 70 | N689763 | 1 | SERVICE PACKED MAGAZINE SA DCFS | 909,9 Lei | |
| 71 | N537072 | 1 | MAG INTERFACE - AS MACHINED - FS 6150 | 270,1 Lei | |
| 72 | N569458 | 4 | SCREW | 4,7 Lei | |
| 73 | N494975 | 1 | MAGAZINE RAIL SPC-FS | 230,5 Lei | |
| 74 | N689761 | 1 | SERVICE PACKED PUSHER SA DCFS | 109,5 Lei | |
| 75 | N525010 | 2 | PRESS NUT - M4 X 0.7 | 8,8 Lei | |
| 76 | N508740 | 1 | MAGAZINE BRIDGE | 109,5 Lei | |
| 77 | N499409 | 1 | LATCH BRIDGE - FS | 4,7 Lei | |
| 78 | N508376 | 1 | 21PL PUSHER LOCK PIN | 10,5 Lei | |
| 79 | N464508 | 1 | MAGAZINE LATCH PUSHER | 6,4 Lei | |
| 80 | N486611 | 1 | CCN Mag Latch Cover | 4,7 Lei | |
| 81 | N466546 | 2 | LATCH PUSHER SPRING | 4,7 Lei | |
| 82 | N508374 | 1 | 21PL PUSHER LOCK | 34,8 Lei | |
| 83 | N508375 | 1 | 21PL PUSHER SPRING | 4,7 Lei | |
| 84 | N509113 | 1 | 21PL PUSHER LOCK GROMMET | 4,7 Lei | |
| 85 | N689759 | 1 | SERVICE PACKED TRIP SA DCFS | 81,9 Lei | |
| 101 | N682552 | 1 | SERVICE PACKED CDFS SA MOTOR | 1003,6 Lei | |
| 102 | N527636 | 1 | FRAME G2 | 199,6 Lei | |
| 103 | N339981 | 2 | RAIL | 53,4 Lei | |
| 104 | N463410 | 2 | MOTOR LOCATOR LEFT | 8,8 Lei | |
| 105 | N591689 | 1 | SSA MODULE SERV KIT FOR FENCING STAPLER | 839 Lei | |
| 106 | N497081 | 1 | CONTACT TRIP LINKAGE - FS | 4,7 Lei | |
| 107 | N534184 | 1 | SERVICE PACKED SA RETURN | 314,3 Lei | |
| 108 | N682560 | 1 | SERVICE PACKED DCFS PROFILE | 1003,6 Lei | |
| 109 | N339980 | 1 | UPPER BUMPER RETAINER | 10 Lei | |
| 110 | N339985 | 1 | UPPER RIGHT BUMPER | 4,7 Lei | |
| 111 | N339986 | 1 | UPPER LEFT BUMPER | 4,7 Lei | |
| 112 | N806037 | 1 | SSA HOME POSITION SENSOR SERV KIT FS | 123,6 Lei | |
| 114 | N691065 | 1 | SERVICE PACKED SA ACTIVATION DCFS | 1112,7 Lei | |
| 115 | N389357 | 1 | DOWEL PIN PTO | 7,5 Lei | |
| 116 | N468984 | 2 | O-RING ID 4MM | 4,7 Lei | |
| 117 | N465817 | 1 | LEVER, STALL RELEASE | 6,4 Lei | |
| 118 | N086806 | 1 | TORSION SPRING | 6,4 Lei | |
| 119 | 330019-24 | 1 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,7 Lei | |
| 121 | N477247 | 8 | SCREW, FLAT HEAD M6X1 | 4,7 Lei | |
| 122 | N093608 | 5 | SCREW, FLAT HD M5X8 | 4,7 Lei | |
| 123 | N113536 | 1 | SCREW, STALL RELEASE | 4,7 Lei | |
| 124 | N400753 | 2 | SCREW,MACHINE W/ EXTERNAL LOCK WASHER | 4,7 Lei | |
| 140 | 330016-25 | 2 | WASHER, PLAIN 8.25X4.25X0.607 | 4,7 Lei | |
| 141 | N689756 | 1 | SERVICE PACKED LOWER BUMPERS DCFS | 98,8 Lei | |
| 146 | N689757 | 1 | SERVICE PACKED SA NOSE DCFS | 1712,1 Lei | |
| 148 | N504467 | 1 | FS Lower Bumper Retainer | 17,4 Lei | |
| 150 | N446748 | 1 | MAGNET LIFTER CONCRETE NAILER | 15,5 Lei | |
| 153 | N471559 | 2 | SOLENOID LOCKING PLATE CCN | 5,3 Lei | |
| 154 | N494853 | 1 | RETURN SOLENOID PLUNGER DAMPER | 8,8 Lei | |
| 155 | N516576 | 1 | SECONDARY RETURN SOLENOID AND PLUNGER | 161,6 Lei | |
| 156 | N463179 | 1 | GAP PAD | 42,9 Lei | |
| 157 | N589347 | 1 | RAIL LOCATOR MACH, FOR HPS | 199,6 Lei | |
| 158 | 330045-45 | 8 | SCREW TAPTITE M4x12, SLT/T20 | 4,7 Lei | |
| 159 | N494832 | 1 | UPPER SKID PLATE, CCN | 4,7 Lei | |
| 160 | N405418 | 1 | RETURN RESET SPRING | 7,5 Lei | |
| 161 | N461432 | 1 | CCN SOLENOID WIRE TRAP | 13 Lei | |
| 162 | N454679 | 1 | REBOUND PLATE | 6,4 Lei | |
| 163 | N454680 | 1 | REBOUND DAMPER | 8,8 Lei | |
| 164 | 941633-00 | 1 | WASHER | 4,7 Lei | |
| 165 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,7 Lei | |
| 167 | N219872 | 1 | SOLENOID SPRING CDFN | 4,7 Lei | |
| 168 | N114861 | 1 | SOLENOID WASHER | 4,7 Lei | |
| 169 | N575216 | 2 | LABEL STALL INDICATOR COVER | 15,5 Lei | |
| 170 | N575051 | 1 | LABEL SPEED SELECT ASSY | 13 Lei | |
| 800 | N017298 | 1 | GREASE | 384 Lei | |
| 802 | N545570 | 1 | SERVICE PART OF GLUE FOR WOLVERINE | 38,6 Lei | |
| 821 | N662232 | 1 | LABEL NAMEPLATE COVER SIDE DCFS | 17,4 Lei |
