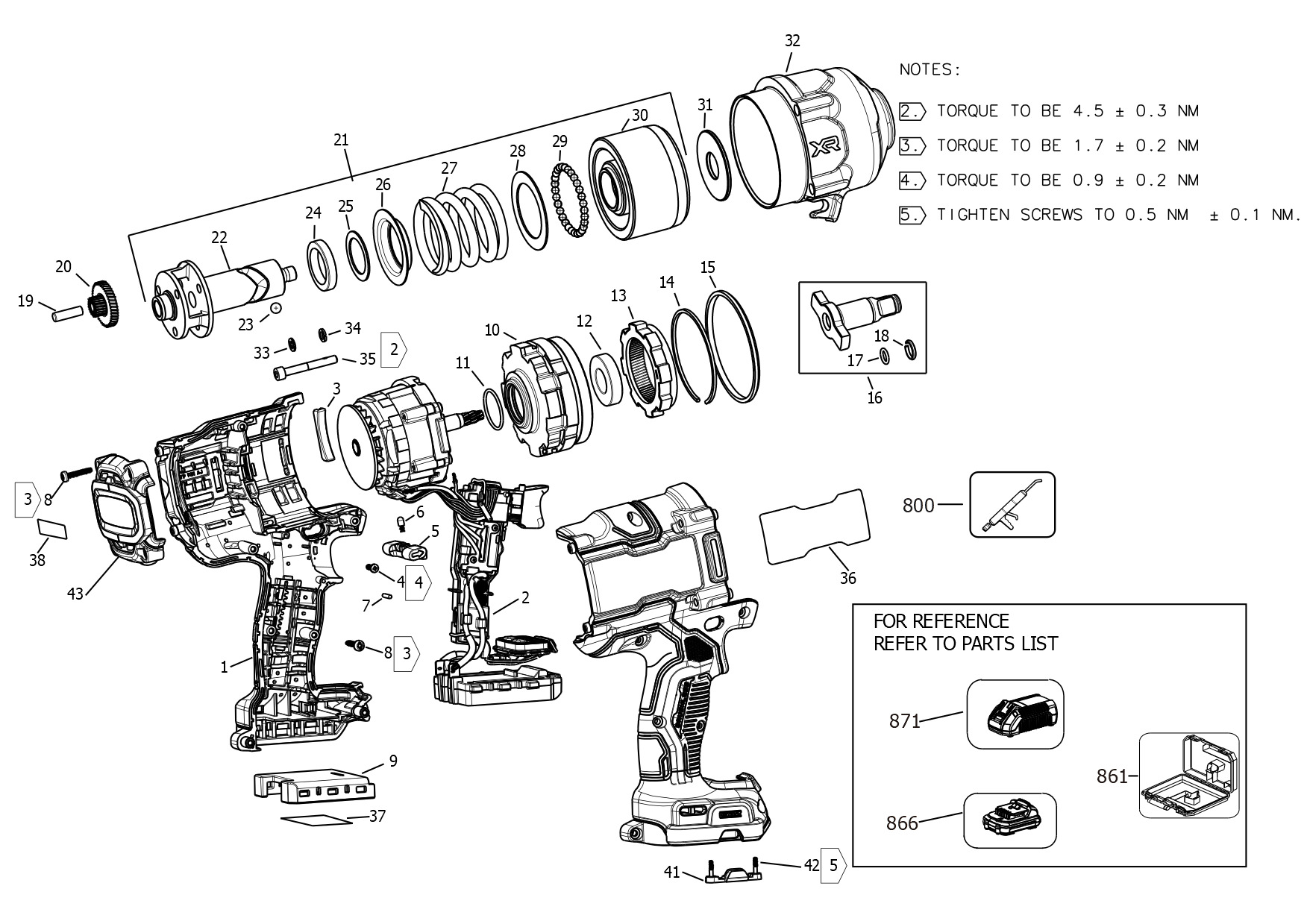

DEWALT CORDLESS IMPACT WRENCH (Type 1)
SKU Produs: DCF961N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA233933 | 1 | HOUSING SA | 66,15 Lei | |
| 2 | NA325986 | 1 | MOTOR & SWITCH SA | 1,14 Lei | |
| 3 | N864724 | 4 | MOUNT | 3,78 Lei | |
| 4 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 5 | N865539 | 1 | ACTUATOR FWD/REV | 3,78 Lei | |
| 6 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 7 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 8 | 330019-04 | 11 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 9 | NA169892 | 1 | ISOLATOR | 14,07 Lei | |
| 10 | N846042 | 1 | GEARCASE | 73,19 Lei | |
| 11 | N411414 | 1 | O RING | 4,57 Lei | |
| 13 | N846040 | 1 | INTERGEAR | 47,78 Lei | |
| 14 | N888542 | 1 | RING | 5,15 Lei | |
| 15 | N846523 | 1 | RUBBER SEAL | 6,09 Lei | |
| 16 | NA325987 | 1 | ANVIL ASSEMBLY | 228,8 Lei | |
| 17 | 050056-00 | 1 | O RING | 4,57 Lei | |
| 18 | 086947-00 | 1 | CIRCLIP | 6,23 Lei | |
| 19 | N756784 | 3 | PIN | 4,31 Lei | |
| 20 | NA031992 | 3 | Gear | 43,16 Lei | |
| 21 | NA325989 | 1 | TRANSMISSION SA-SA MECHANISM | 898,7 Lei | |
| 23 | NA091720 | 2 | BALL STEEL | 3,78 Lei | |
| 24 | N745990 | 1 | BUMPER | 6,09 Lei | |
| 25 | N745989 | 1 | WASHER | 3,78 Lei | |
| 26 | N745984 | 1 | WASHER | 4,31 Lei | |
| 27 | N745982 | 1 | SPRING | 47,78 Lei | |
| 28 | N745996 | 1 | WASHER THRUST | 4,31 Lei | |
| 29 | 000475-00 | 30 | BALL STEEL 3/16 | 4,57 Lei | |
| 30 | NA100963 | 1 | IMPACTOR | 317,1 Lei | |
| 31 | N735836 | 1 | WASHER | 4,57 Lei | |
| 32 | NA325990 | 1 | NOSE SA | 139,97 Lei | |
| 33 | 90607886 | 4 | WASHER | 66,15 Lei | |
| 34 | N783664 | 4 | WASHER | 3,78 Lei | |
| 37 | NA352845 | 1 | LABEL | 3,78 Lei | |
| 38 | NA352854 | 1 | LABEL | 3,78 Lei | |
| 41 | N787996 | 1 | INSERT | 4,57 Lei | |
| 42 | N831593 | 2 | SCREW | 4,57 Lei | |
| 43 | N893052 | 1 | END CAP | 11,45 Lei |
