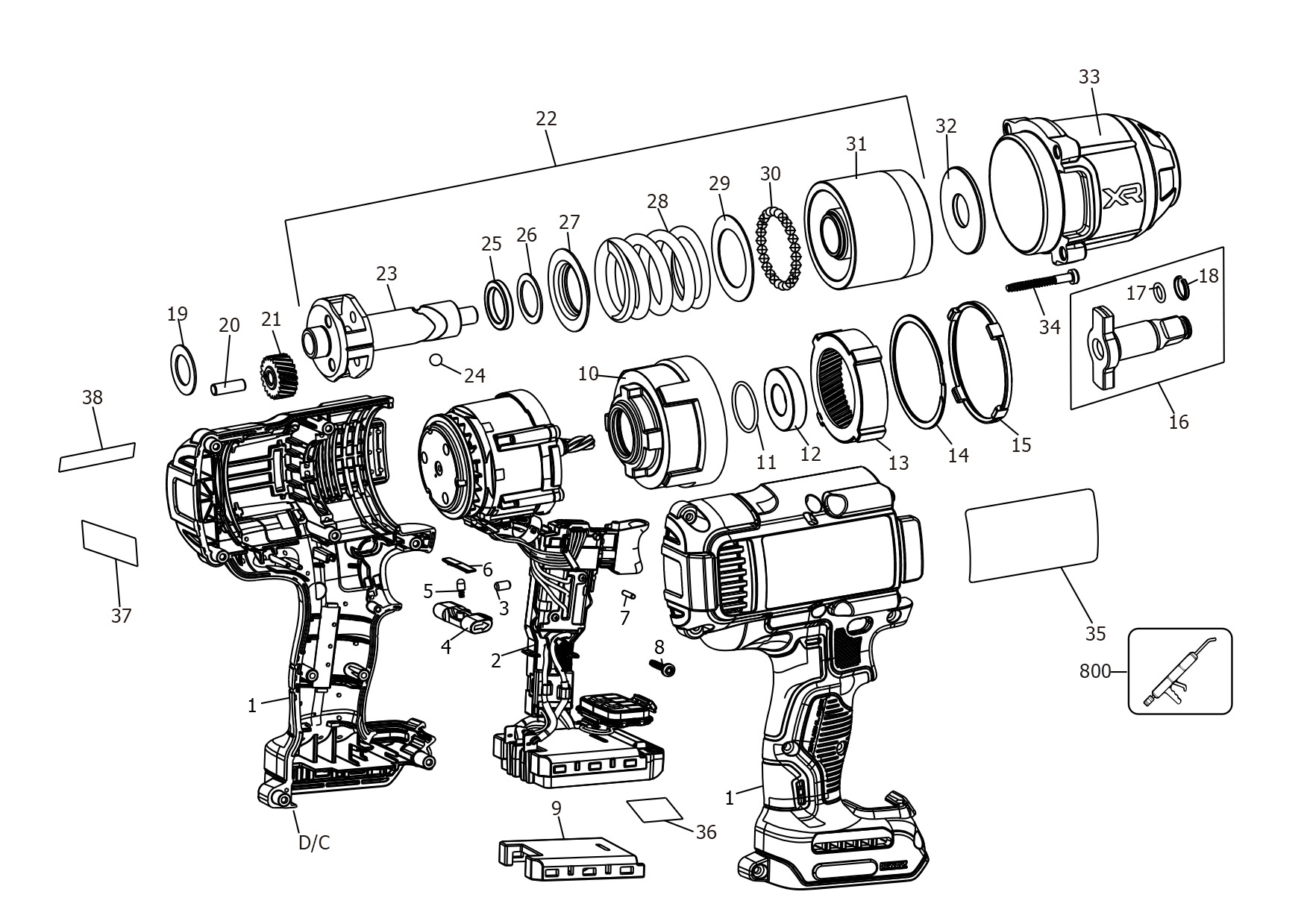

DEWALT CORDLESS IMPACT WRENCH (Type 1)
SKU Produs: DCF900N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA100738 | 1 | CLAMSHELL SET | 96,56 Lei | |
| 2 | NA039647 | 1 | MOTOR SA | 1262,37 Lei | |
| 3 | N186764 | 4 | RUBBER PAD | 4,57 Lei | |
| 4 | N137055 | 1 | ACTUATOR FWD/REV | 5,21 Lei | |
| 5 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 6 | N419514 | 1 | DETENT | 4,57 Lei | |
| 7 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 8 | 330019-04 | 9 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 9 | NA066209 | 1 | RUBBER SEAL | 19,95 Lei | |
| 10 | N363283 | 1 | GEARCASE | 52,22 Lei | |
| 11 | N411414 | 1 | O RING | 4,57 Lei | |
| 12 | N158641 | 1 | BEARING | 25,54 Lei | |
| 13 | N470304 | 1 | Gear | 25,54 Lei | |
| 14 | N389400 | 1 | RING | 5,21 Lei | |
| 15 | N410641 | 1 | SEAL | 6,23 Lei | |
| 16 | NA039663 | 1 | ANVIL ASSEMBLY | 181,55 Lei | |
| 17 | 050056-00 | 1 | O RING | 4,57 Lei | |
| 18 | 086947-00 | 1 | CIRCLIP | 6,23 Lei | |
| 19 | N114027 | 1 | WASHER | 4,57 Lei | |
| 20 | N194994 | 3 | PIN | 4,57 Lei | |
| 21 | N389396 | 3 | Gear | 21,85 Lei | |
| 22 | NA039655 | 1 | IMPACTOR | 613,14 Lei | |
| 23 | NA024756 | 1 | CARRIER | 165,3 Lei | |
| 24 | 618844-00 | 2 | BALL STEEL | 4,57 Lei | |
| 25 | NA080785 | 1 | BUMPER | 6,23 Lei | |
| 26 | NA080787 | 1 | WASHER | 4,57 Lei | |
| 27 | NA080788 | 1 | WASHER | 5,21 Lei | |
| 28 | N827324 | 1 | SPRING | 52,22 Lei | |
| 29 | N377515 | 1 | WASHER THRUST | 4,57 Lei | |
| 30 | 000475-00 | 27 | BALL STEEL 3/16 | 4,57 Lei | |
| 31 | NA024757 | 1 | IMPACTOR | 252,58 Lei | |
| 32 | N735836 | 1 | WASHER | 4,57 Lei | |
| 33 | NA163451 | 1 | NOSE SA | 181,55 Lei | |
| 34 | NA002385 | 4 | SCREW | 4,57 Lei | |
| 35 | NA005586 | 1 | RATING PLATE | 5,21 Lei | |
| 36 | NA005587 | 1 | LABEL | 4,57 Lei | |
| 37 | NA013335 | 1 | LABEL | 4,57 Lei | |
| 38 | NA018894 | 1 | BRAND LABEL | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei |
