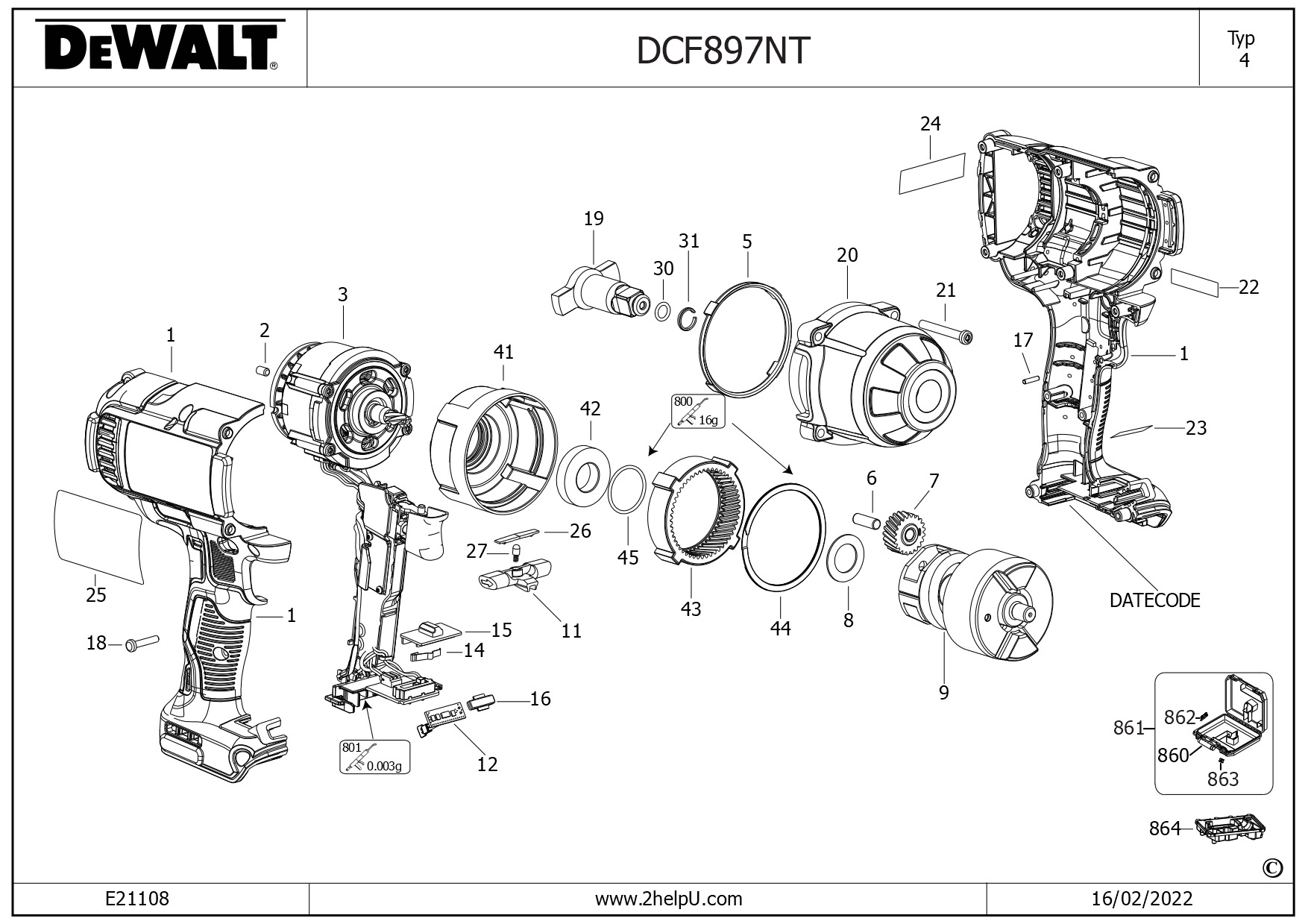

DEWALT IMPACT WRENCH (Type 4)
SKU Produs: DCF897N /Type: 4
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N371919 | 1 | CLAMSHELL SET | 80,04 Lei | |
| 2 | N186764 | 4 | RUBBER PAD | 4,57 Lei | |
| 3 | N578553 | 1 | MOTOR AND SWITCH SA | 570,96 Lei | |
| 5 | N410641 | 1 | SEAL | 6,23 Lei | |
| 6 | N194994 | 3 | PIN | 4,57 Lei | |
| 7 | N389396 | 3 | Gear | 21,85 Lei | |
| 8 | N114027 | 1 | WASHER | 4,57 Lei | |
| 9 | NA111029 | 1 | IMPACTOR | 389,28 Lei | |
| 11 | N137055 | 1 | ACTUATOR FWD/REV | 5,21 Lei | |
| 12 | N231799 | 1 | LED LIGHT | 17,02 Lei | |
| 14 | N392855 | 1 | DETENT SPRING | 4,57 Lei | |
| 15 | N393603 | 1 | SELECTOR | 4,57 Lei | |
| 16 | N394333 | 1 | LENS | 4,57 Lei | |
| 17 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 18 | 330019-04 | 9 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 19 | N415878 | 1 | ANVIL ASSEMBLY | 252,58 Lei | |
| 20 | NA218890 | 1 | SERVICE KIT | 169,36 Lei | |
| 20 | NA233268 | 1 | NOSE SA | 195,02 Lei | |
| 21 | 330019-05 | 4 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 22 | N237999 | 1 | LABEL | 4,57 Lei | |
| 23 | N408083 | 1 | LABEL | 4,57 Lei | |
| 24 | N404526 | 1 | LABEL | 4,57 Lei | |
| 25 | NA099467 | 1 | RATING PLATE | 7,37 Lei | |
| 26 | N419514 | 1 | DETENT | 4,57 Lei | |
| 27 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 30 | N399753 | 1 | O RING | 4,57 Lei | |
| 31 | N432643 | 1 | NOSE RING | 5,21 Lei | |
| 41 | N363283 | 1 | GEARCASE | 52,22 Lei | |
| 42 | N158641 | 1 | BEARING | 25,54 Lei | |
| 43 | N470304 | 1 | Gear | 25,54 Lei | |
| 44 | N389400 | 1 | RING | 5,21 Lei | |
| 45 | N411414 | 1 | O RING | 4,57 Lei | |
| 50 | N735844 | 1 | WASHER | 5,21 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 801 | N475660 | 1 | GREASE NYE NYOGEL 760G (150G) | 33,2 Lei |
