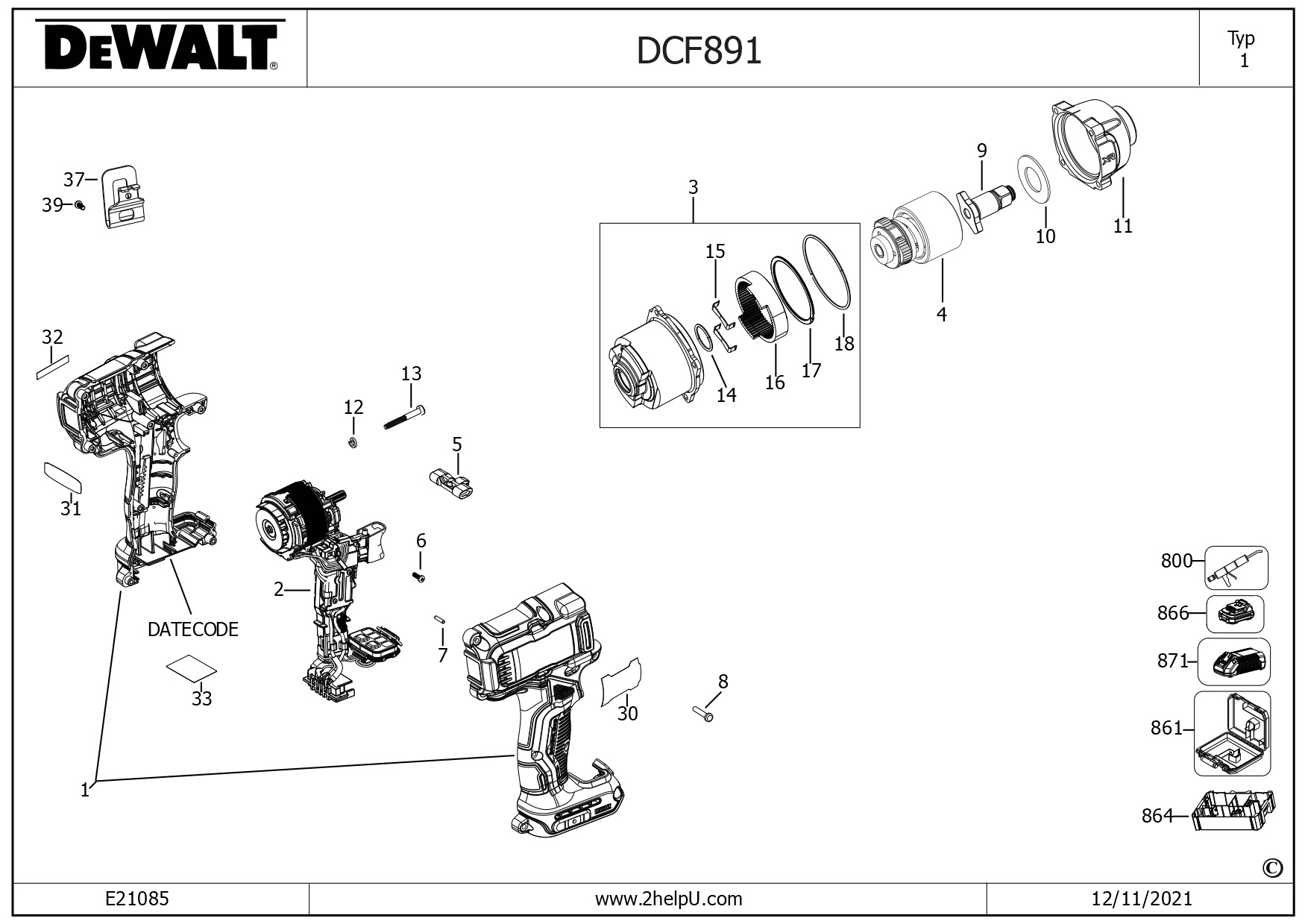

DEWALT CORDLESS IMPACT WRENCH (Type 1)
SKU Produs: DCF891P2LRT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N896695 | 1 | CLAMSHELL SET | 57,81 Lei | |
| 2 | NA016963 | 1 | MOTOR AND SWITCH SA | 850,09 Lei | |
| 3 | NA020584 | 1 | GEARCASE SA | 120,82 Lei | |
| 4 | NA016971 | 1 | IMPACTOR | 389,28 Lei | |
| 5 | N473670 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 6 | N719210 | 1 | SCREW | 4,57 Lei | |
| 7 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 8 | 330019-04 | 9 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 10 | N699996 | 1 | WASHER THRUST | 4,57 Lei | |
| 11 | NA016760 | 1 | NOSE SA | 88,55 Lei | |
| 12 | N529458 | 4 | WASHER LOCK | 4,57 Lei | |
| 13 | N516846 | 4 | SCREW | 4,57 Lei | |
| 14 | N438625 | 1 | O RING | 4,57 Lei | |
| 15 | N484792 | 2 | BEARING PLATE | 4,57 Lei | |
| 16 | N465624 | 1 | Gear | 19,95 Lei | |
| 17 | N482343 | 1 | RING | 7,37 Lei | |
| 18 | N458130 | 1 | O RING | 5,21 Lei | |
| 30 | NA006247 | 1 | RATING PLATE | 4,57 Lei | |
| 31 | NA006997 | 1 | LABEL | 4,57 Lei | |
| 32 | NA007356 | 1 | BRAND LABEL | 4,57 Lei | |
| 33 | NA006249 | 1 | LABEL | 4,57 Lei | |
| 37 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 39 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |

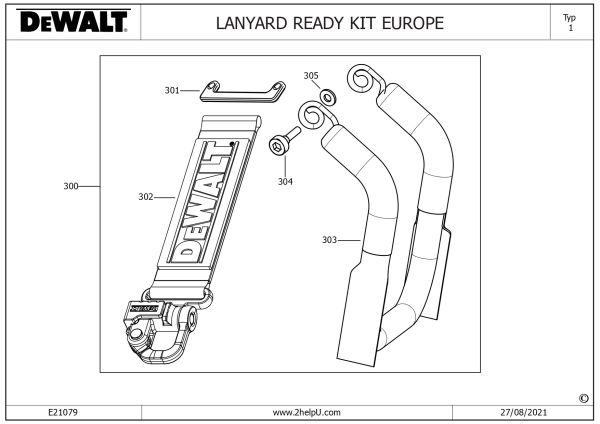

| 300 | NA012362 | 1 | SERVICE KIT | 157,92 Lei | |
| 301 | N537349 | 2 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei |
