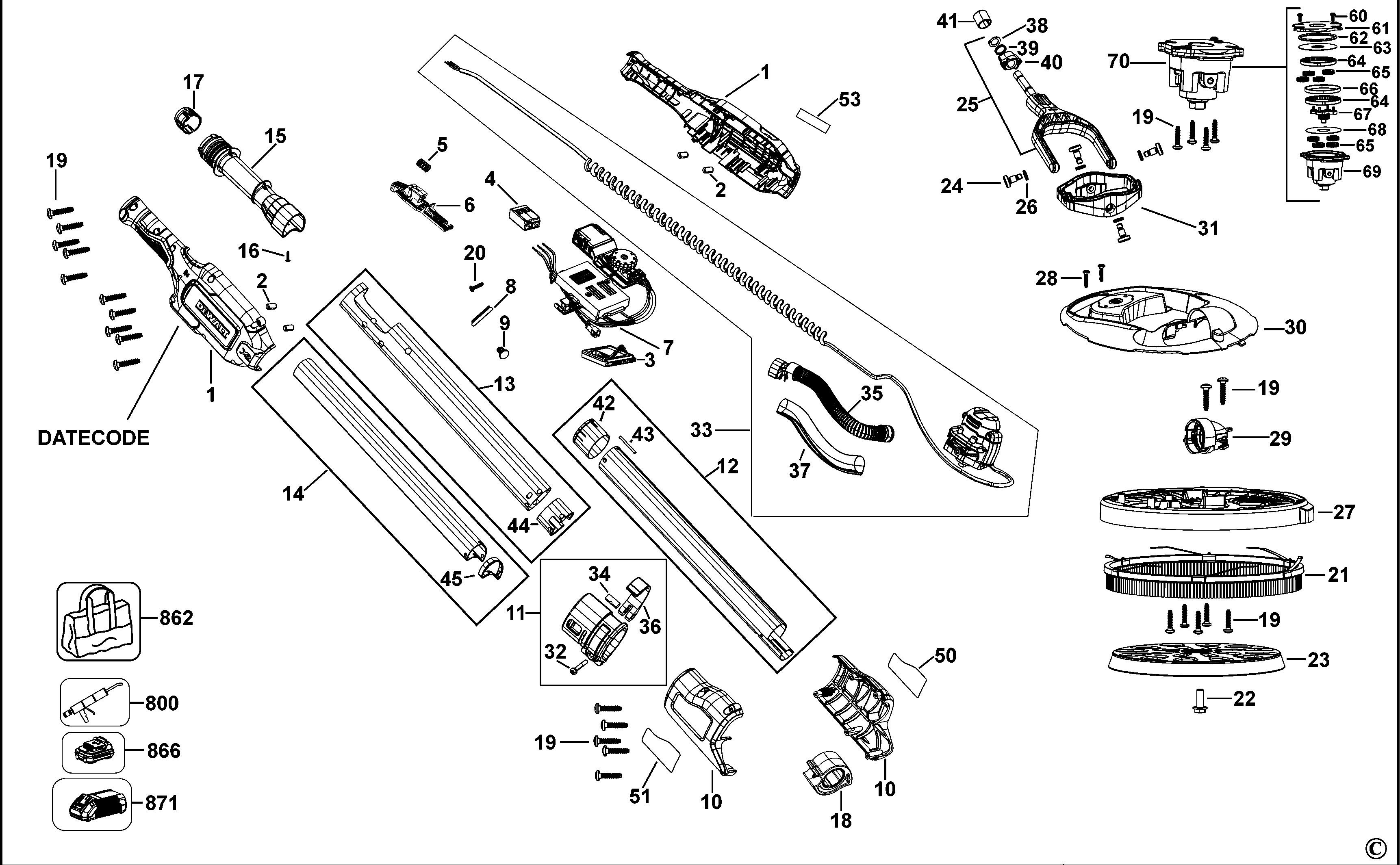

DEWALT DRYWALL SANDER (Type 1)
SKU Produs: DCE800NB /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N694562 | 1 | CLAMSHELL SET | 130,35 Lei | |
| 2 | N186764 | 4 | RUBBER PAD | 4,57 Lei | |
| 3 | N592861 | 1 | WTC AK61 REPLACEMENT EMBEDDED MODULE | 130,35 Lei | |
| 4 | N590957 | 3 | CONNECTOR | 10,29 Lei | |
| 5 | N637101 | 1 | SPRING | 17,02 Lei | |
| 6 | N868800 | 1 | ACTUATOR | 15,12 Lei | |
| 7 | N868474 | 1 | CONTROL MODULE SA | 451,79 Lei | |
| 8 | N094649 | 1 | STEEL-LATCH DCH ZODIAC | 7,37 Lei | |
| 9 | N453948 | 1 | SPRING | 25,54 Lei | |
| 10 | N694223 | 1 | CLAMSHELL SET | 30,87 Lei | |
| 11 | N868476 | 1 | CLAMP SA | 41,93 Lei | |
| 12 | N916602 | 1 | TUBE SA | 181,55 Lei | |
| 13 | N916601 | 1 | TUBE SA | 200,99 Lei | |
| 14 | N916594 | 1 | TUBE SA | 157,92 Lei | |
| 15 | N602601 | 1 | DUST PORT | 52,22 Lei | |
| 16 | 330065-25 | 1 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 17 | N736173 | 1 | CONNECTOR | 13,85 Lei | |
| 18 | N868481 | 1 | BEARING BUSH | 15,12 Lei | |
| 19 | 330065-08 | 27 | SCREW M4X18 | 4,57 Lei | |
| 20 | N403241 | 1 | SCREW M3 SEMS | 4,57 Lei | |
| 21 | N868437 | 1 | DUST GUARD | 157,92 Lei | |
| 22 | N424801 | 1 | BOLT | 4,57 Lei | |
| 23 | N855826 | 1 | PAD SA | 200,99 Lei | |
| 24 | N607946 | 4 | SCREW | 8,64 Lei | |
| 25 | N868793 | 1 | JOINT | 240,38 Lei | |
| 26 | N651418 | 4 | SPRING | 12,71 Lei | |
| 27 | N569394 | 1 | SHIELD | 57,81 Lei | |
| 28 | 330065-01 | 2 | SCREW | 4,57 Lei | |
| 29 | N868858 | 1 | HOUSING SA | 21,85 Lei | |
| 30 | N868815 | 1 | HOUSING SA | 57,81 Lei | |
| 31 | N868471 | 1 | JOINT | 37,73 Lei | |
| 32 | N651021 | 1 | SCREW | 4,57 Lei | |
| 33 | N868503 | 1 | MOTOR SA | 570,96 Lei | |
| 34 | N651020 | 1 | PIN | 15,12 Lei | |
| 35 | N646914 | 1 | HOSE SA | 96,56 Lei | |
| 36 | N576523 | 1 | CLAMP | 7,37 Lei | |
| 37 | N644294 | 1 | TUBE PLASTIC | 34,05 Lei | |
| 38 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 39 | N646628 | 1 | SPRING | 19,95 Lei | |
| 40 | N868755 | 1 | BEARING AXIAL | 19,95 Lei | |
| 41 | N620976 | 1 | SLEEVE | 12,71 Lei | |
| 42 | N593089 | 1 | SLEEVE | 12,71 Lei | |
| 43 | N794764 | 1 | CLIP | 4,57 Lei | |
| 44 | N598796 | 1 | SLEEVE | 12,71 Lei | |
| 45 | N598795 | 1 | SLEEVE | 7,37 Lei | |
| 50 | N703603 | 1 | RATING PLATE | 4,57 Lei | |
| 51 | N703604 | 1 | WARNING LABEL | 7,37 Lei | |
| 53 | N703617 | 1 | BRAND LABEL | 4,57 Lei | |
| 60 | N403241 | 2 | SCREW M3 SEMS | 4,57 Lei | |
| 61 | N581269 | 1 | GEARCASE COVER | 34,05 Lei | |
| 62 | N595318 | 1 | O RING | 7,37 Lei | |
| 63 | N581272 | 1 | DISC | 10,29 Lei | |
| 64 | N690814 | 2 | Gear | 15,12 Lei | |
| 65 | N690815 | 8 | Gear | 5,21 Lei | |
| 66 | N581319 | 1 | SPACER | 21,85 Lei | |
| 67 | N868407 | 1 | CARRIER SA | 15,12 Lei | |
| 68 | N581273 | 1 | DISC | 8,64 Lei | |
| 69 | N868483 | 1 | GEARCASE SA | 252,58 Lei | |
| 70 | N868445 | 1 | GEARCASE SA | 433,24 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 862 | N821699 | 1 | BAG | 318,26 Lei |
