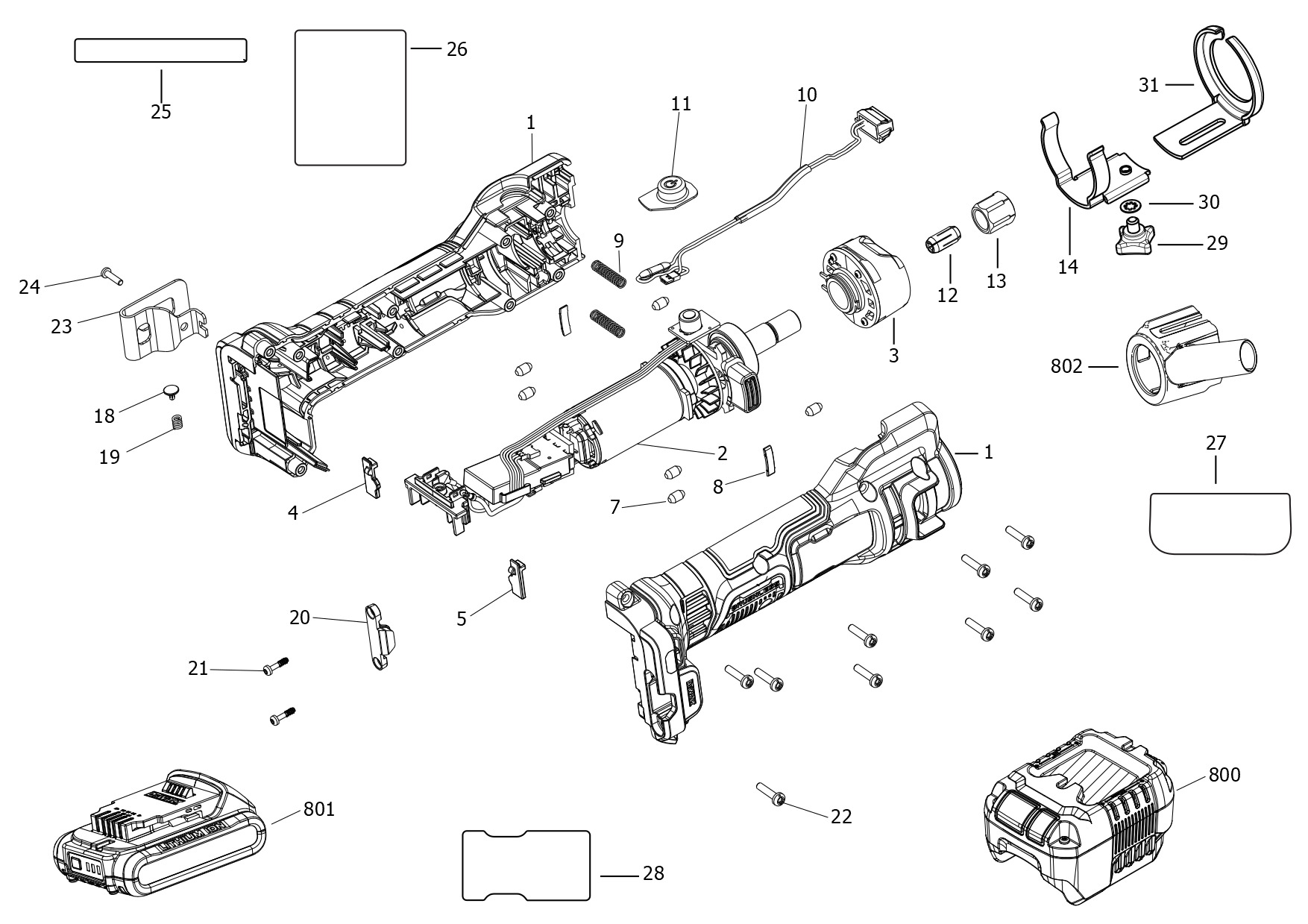

DEWALT CUT OUT TOOL (Type 1)
SKU Produs: DCE555 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA030573 | 1 | CLAMSHELL SET | 99,86 Lei | |
| 2 | NA230961 | 1 | MOTOR SA-MODULE | 1,04 Lei | |
| 3 | NA230966 | 1 | COLLET-GRIP | 390,29 Lei | |
| 4 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 5 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 7 | 145312-00 | 6 | RUBBER PLUG | 4,57 Lei | |
| 8 | N865922 | 2 | PAD | 3,78 Lei | |
| 9 | N796209 | 2 | SPRING | 3,78 Lei | |
| 10 | N853624 | 1 | LED LIGHT | 34,65 Lei | |
| 11 | N798172 | 1 | COVER | 4,31 Lei | |
| 12 | 389243-00 | 1 | COLLET | 21,85 Lei | |
| 12 | 389244-00 | 1 | 1/4 COLLET | 37,73 Lei | |
| 13 | 389245-00 | 1 | COLLET NUT | 80,04 Lei | |
| 14 | 389460-00 | 1 | GUIDE BASE | 15,12 Lei | |
| 18 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 19 | N119679 | 1 | SPRING | 4,57 Lei | |
| 20 | N787996 | 1 | INSERT | 4,57 Lei | |
| 21 | N831593 | 2 | SCREW | 4,57 Lei | |
| 22 | 330019-03 | 9 | Screw M3.5X16 T15 | 4,57 Lei | |
| 23 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 24 | N865919 | 1 | SCREW | 3,78 Lei | |
| 25 | NA044388 | 1 | LABEL | 8,51 Lei | |
| 26 | NA044391 | 1 | LABEL | 11,45 Lei | |
| 27 | NA044390 | 1 | LABEL | 8,51 Lei | |
| 28 | NA044385 | 1 | RATING PLATE | 10,5 Lei | |
| 29 | 396992-01 | 1 | KNOB | 5,21 Lei | |
| 30 | NA126357 | 1 | WASHER-M5 | 3,78 Lei | |
| 31 | 389459-00 | 1 | GUIDE, | 21,85 Lei | |
| 802 | N852343 | 1 | DUST GUARD | 16,49 Lei |
