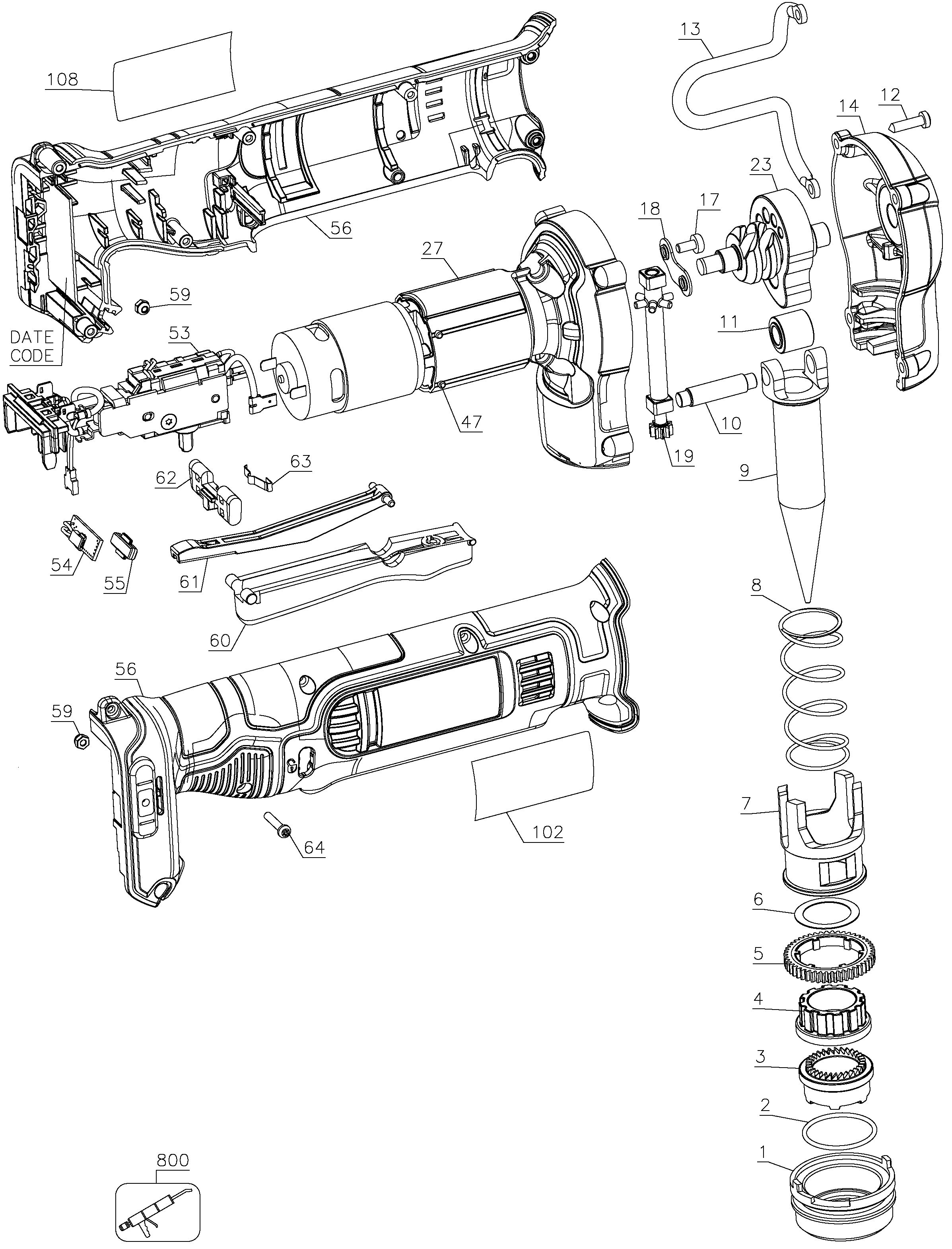

DEWALT PEX EXPANDER Type 1
SKU Produs: DCE400
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N462117 | 1 | COLLER THREAD | 130,35 Lei | |
| 2 | N508447 | 1 | O-RING 28.2X1.8 | 8,64 Lei | |
| 3 | N462118 | 1 | COLLAR ROTATING | 21,85 Lei | |
| 4 | N462119 | 1 | RING CLUTCH | 30,87 Lei | |
| 5 | N462120 | 1 | GEAR INDEX | 7,37 Lei | |
| 6 | N462124 | 1 | WASHER | 4,57 Lei | |
| 7 | N462125 | 1 | SLEEVE PISTON | 130,35 Lei | |
| 8 | N440687 | 1 | SPRING PISTON | 5,21 Lei | |
| 9 | N462121 | 1 | SPINDLE CONE | 145,09 Lei | |
| 10 | N462123 | 1 | PIN | 17,02 Lei | |
| 11 | N462122 | 1 | ROLLER | 19,95 Lei | |
| 12 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 13 | N474323 | 1 | HOOK | 17,02 Lei | |
| 14 | N660115 | 1 | SSA GEARCASE CVR | 157,92 Lei | |
| 17 | 330045-44 | 2 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 18 | N462217 | 1 | COVER | 4,57 Lei | |
| 19 | N660116 | 1 | SHAFT SA | 195,02 Lei | |
| 23 | N660114 | 1 | SSA CAM | 120,82 Lei | |
| 27 | N770086 | 1 | MOTOR AND GEARCASE | 667,9 Lei | |
| 47 | N462236 | 2 | PIN | 7,37 Lei | |
| 53 | N770096 | 1 | SWITCH SA | 225,26 Lei | |
| 54 | N231799 | 1 | LED LIGHT | 17,02 Lei | |
| 55 | N394333 | 1 | LENS | 4,57 Lei | |
| 56 | N695771 | 1 | CLAMSHELL SET | 57,81 Lei | |
| 59 | 330021-11 | 2 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 60 | N462211 | 1 | TRIGGER | 13,85 Lei | |
| 61 | N462212 | 1 | LINKAGE TRIGGER | 7,37 Lei | |
| 62 | N462213 | 1 | MIDDLE BUTTON | 8,64 Lei | |
| 63 | N392855 | 1 | DETENT SPRING | 4,57 Lei | |
| 64 | 682211-00 | 7 | SCREW, PLASTITE | 4,57 Lei | |
| 102 | N767369 | 1 | BRAND LABEL | 12,71 Lei | |
| 108 | N761672 | 1 | RATING PLATE | 12,71 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei |
