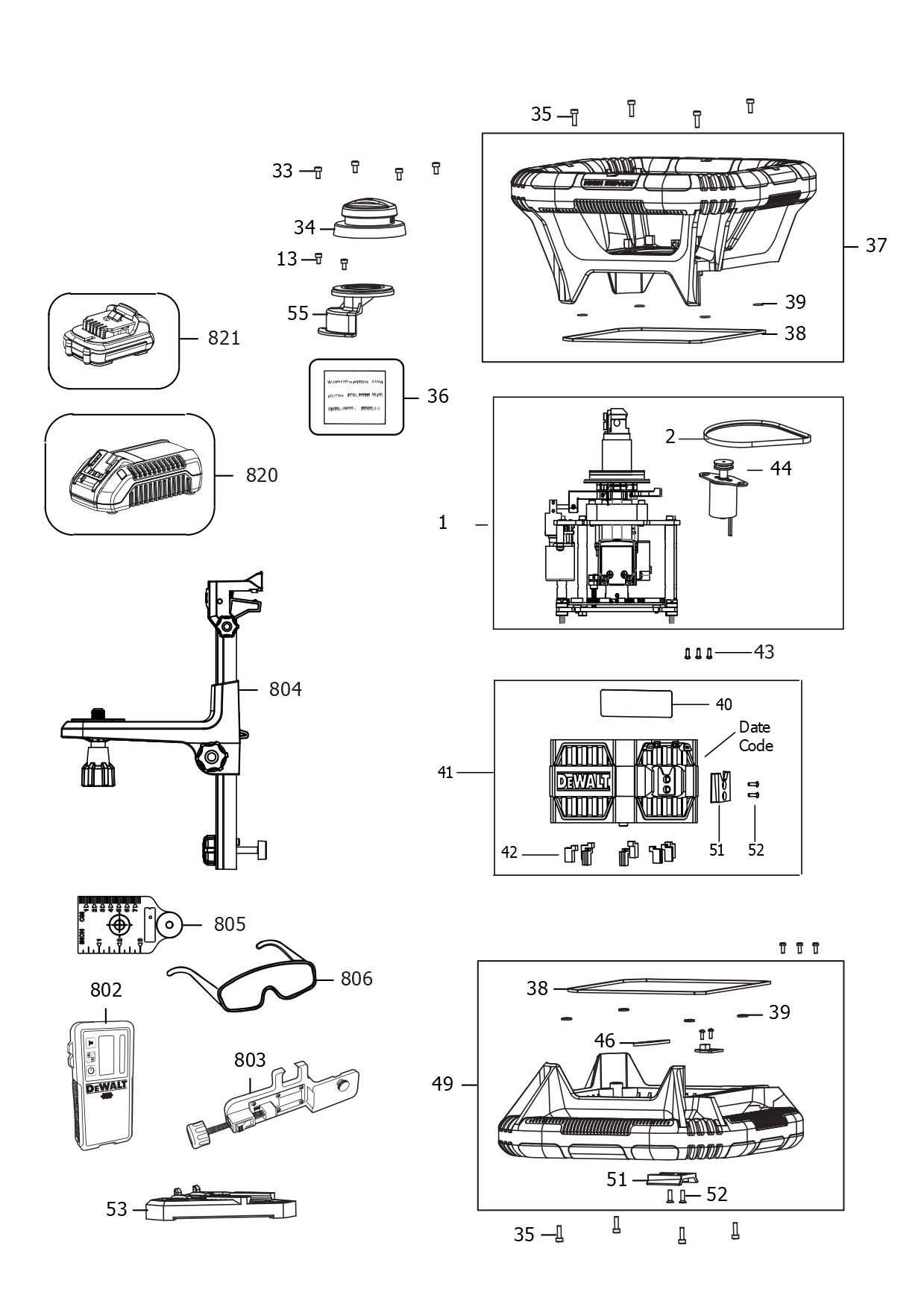

DEWALT ROTARY LASER (Type 2)
SKU Produs: DCE074NR /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170055-41 | 1 | LASER HEAD SA | 3612,67 Lei | |
| 2 | 1004736-66 | 1 | BELT DRIVE | 10,29 Lei | |
| 13 | 1004736-86 | 2 | SCREW | 4,7 Lei | |
| 33 | 1004736-68 | 4 | SCREW | 4,7 Lei | |
| 34 | 1004736-88 | 1 | VIEWING GLASS | 34,05 Lei | |
| 35 | 1004736-70 | 8 | SCREW | 4,57 Lei | |
| 36 | 1004736-71 | 1 | WARNING LABEL | 7,37 Lei | |
| 37 | 5170055-42 | 1 | HOUSING UPPER | 451,79 Lei | |
| 38 | 1004736-73 | 2 | GASKET | 34,8 Lei | |
| 38 | 5170056-06 | 1 | GASKET | 57,81 Lei | |
| 39 | 1004736-74 | 16 | RUBBER PAD | 4,57 Lei | |
| 40 | 1004736-90 | 1 | LABEL ELECTRONIC | 70,39 Lei | |
| 41 | 5170055-43 | 1 | HOUSING SA | 307,5 Lei | |
| 42 | 1004736-78 | 8 | DAMPER | 7,37 Lei | |
| 43 | 1004736-79 | 6 | SCREW | 4,57 Lei | |
| 46 | 1004736-92 | 1 | BAFFLE | 26,1 Lei | |
| 49 | 5170055-44 | 1 | HOUSING LOWER | 389,28 Lei | |
| 51 | 1004736-77 | 2 | HOLDER | 7,37 Lei | |
| 52 | 1004736-76 | 4 | SCREW | 4,57 Lei | |
| 53 | N528000 | 1 | ADAPTOR | 41,93 Lei | |
| 55 | 1004736-94 | 1 | BRACKET SA | 41,93 Lei | |
| 802 | N482092 | 1 | DETECTOR | 570,96 Lei | |
| 803 | N482094 | 1 | BRACKET SA | 106,98 Lei | |
| 804 | N482521 | 1 | BRACKET SA | 399,45 Lei | |
| 805 | N528003 | 1 | TARGET | 52,22 Lei | |
| 806 | N437437 | 1 | SAFETY GLASSES | 19,95 Lei |
