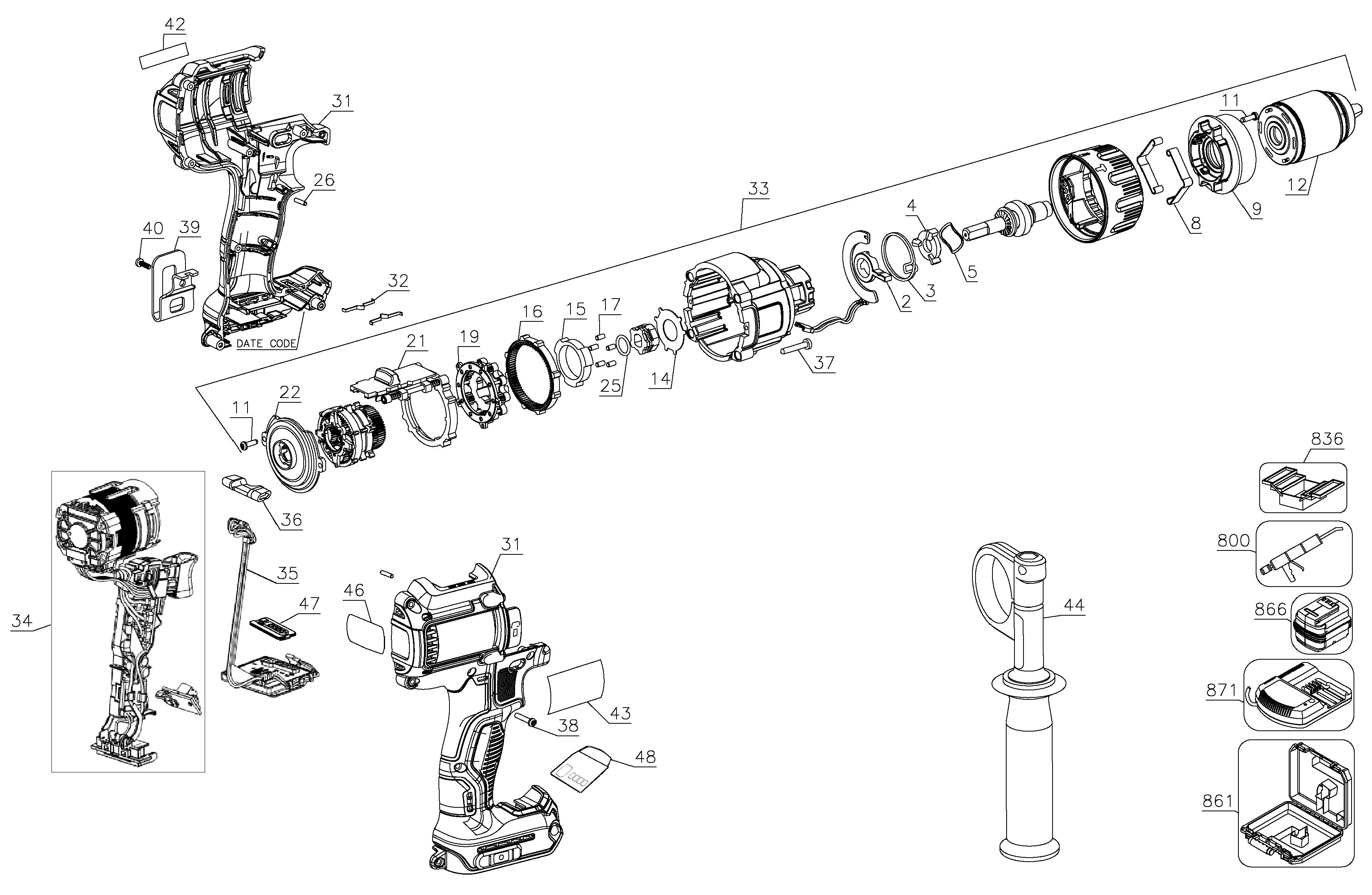

DEWALT DRILL/DRIVER Type 1
SKU Produs: DCD997N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N146719 | 1 | LEVER | 7,37 Lei | |
| 3 | N316079 | 1 | SPRING | 4,57 Lei | |
| 4 | N149367 | 1 | Gear | 7,37 Lei | |
| 5 | N269741 | 1 | WASHER SPRING | 4,57 Lei | |
| 8 | N165352 | 2 | DETENT | 4,57 Lei | |
| 9 | N826871 | 1 | END CAP SA | 25,54 Lei | |
| 11 | N281559 | 5 | SCREW | 4,57 Lei | |
| 11 | N826871 | 1 | END CAP SA | 25,54 Lei | |
| 12 | N454251 | 1 | CHUCK KEYLESS | 157,92 Lei | |
| 14 | 652378-00 | 1 | PLATE | 4,57 Lei | |
| 17 | 654110-00 | 5 | ROLLER | 4,57 Lei | |
| 19 | N375865 | 1 | GEAR SA | 37,73 Lei | |
| 21 | N375867 | 1 | SLIDER SA | 37,73 Lei | |
| 22 | N375868 | 1 | BAFFLE SA | 25,54 Lei | |
| 25 | N309119 | 1 | O RING | 4,57 Lei | |
| 26 | N071836 | 2 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 31 | N504297 | 1 | CLAMSHELL | 80,04 Lei | |
| 32 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 34 | N559205 | 1 | MOTOR AND SWITCH SA | 1378,75 Lei | |
| 35 | N559221 | 1 | MODULE | 613,14 Lei | |
| 36 | N431555 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 37 | 330019-52 | 4 | SCREW | 4,57 Lei | |
| 38 | 682211-00 | 8 | SCREW, PLASTITE | 4,57 Lei | |
| 39 | N268241 | 1 | HOOK SA | 13,85 Lei | |
| 40 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 43 | N516574 | 1 | LABEL RATING DCD997 EANZ | 4,57 Lei | |
| 44 | N433408 | 1 | SIDE HANDLE | 41,93 Lei | |
| 47 | N470512 | 1 | BLE INTERFACE PANEL 4 LED | 4,57 Lei | |
| 48 | N485905 | 1 | LABEL, G2 DRILL, BLUETOOTH | 10,29 Lei | |
| 300 | NA012362 | 1 | SERVICE KIT | 157,92 Lei | |
| 301 | N537349 | 1 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | 254,48 Lei | |
| 836 | 559662-99 | 1 | SERVICE TOOL | 140,39 Lei | |
| 836 | 596004-99 | 1 | SERVICE TOOL | 140,39 Lei | |
| 836 | N354959 | 1 | SERVICE TOOL | 96,56 Lei |
