DEWALT CORDLESS DRILL 18V LI-ION (Type 10)
SKU Produs: DCD996 /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N484226 | 1 | GEARCASE SA | 88,55 Lei | |
| 2 | N146719 | 1 | LEVER | 7,37 Lei | |
| 3 | N316079 | 1 | SPRING | 4,57 Lei | |
| 4 | N149367 | 1 | Gear | 7,37 Lei | |
| 5 | N269741 | 1 | WASHER SPRING | 4,57 Lei | |
| 6 | N481785 | 1 | SPINDLE SA | 70,39 Lei | |
| 7 | N481813 | 1 | SENSOR | 96,56 Lei | |
| 8 | N165352 | 2 | DETENT | 4,57 Lei | |
| 9 | N826871 | 1 | END CAP SA | 25,54 Lei | |
| 10 | N443281 | 1 | COLLAR | 21,85 Lei | |
| 11 | N359062 | 3 | SCREW | 4,57 Lei | |
| 11 | N826871 | 1 | END CAP SA | 25,54 Lei | |
| 12 | N454251 | 1 | CHUCK KEYLESS | 157,92 Lei | |
| 13 | N470351 | 1 | GEARBOX SA | 570,96 Lei | |
| 14 | 652378-00 | 1 | PLATE | 4,57 Lei | |
| 15 | N375852 | 1 | LOCKING RING | 41,93 Lei | |
| 16 | N375864 | 1 | Gear | 37,73 Lei | |
| 17 | 654110-00 | 5 | ROLLER | 4,57 Lei | |
| 18 | N481809 | 1 | ANVIL | 37,73 Lei | |
| 19 | N375865 | 1 | GEAR SA | 37,73 Lei | |
| 20 | N481798 | 1 | GEAR SA | 120,82 Lei | |
| 21 | N375867 | 1 | SLIDER SA | 37,73 Lei | |
| 22 | N375868 | 1 | BAFFLE SA | 25,54 Lei | |
| 23 | N071836 | 2 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 24 | N392855 | 1 | DETENT SPRING | 4,57 Lei | |
| 25 | N309119 | 1 | O RING | 4,57 Lei | |
| 26 | N281559 | 2 | SCREW | 4,57 Lei | |
| 30 | N393603 | 1 | SELECTOR | 4,57 Lei | |
| 31 | N810034 | 1 | CLAMSHELL SA | 57,81 Lei | |
| 32 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 34 | N481825 | 1 | SA KIT 18V MOTOR+MODULE ZRP3 (SERVICE) | 472,24 Lei | |
| 35 | N439418 | 1 | LED LABEL EU 18V FOR G2 DRILL | 4,57 Lei | |
| 36 | N431555 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 37 | 330019-52 | 4 | SCREW | 4,57 Lei | |
| 38 | 682211-00 | 8 | SCREW, PLASTITE | 4,57 Lei | |
| 39 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 40 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 41 | N475326 | 1 | SA MAGNET HOLDER USTI (MOULD) | 21,85 Lei | |
| 42 | N237999 | 1 | LABEL | 4,57 Lei | |
| 43 | N538856 | 1 | RATING LABEL DCD996 (EURO) TY10 | 10,29 Lei | |
| 44 | N433408 | 1 | SIDE HANDLE | 41,93 Lei | |
| 45 | N317859 | 1 | LABEL | 4,57 Lei | |

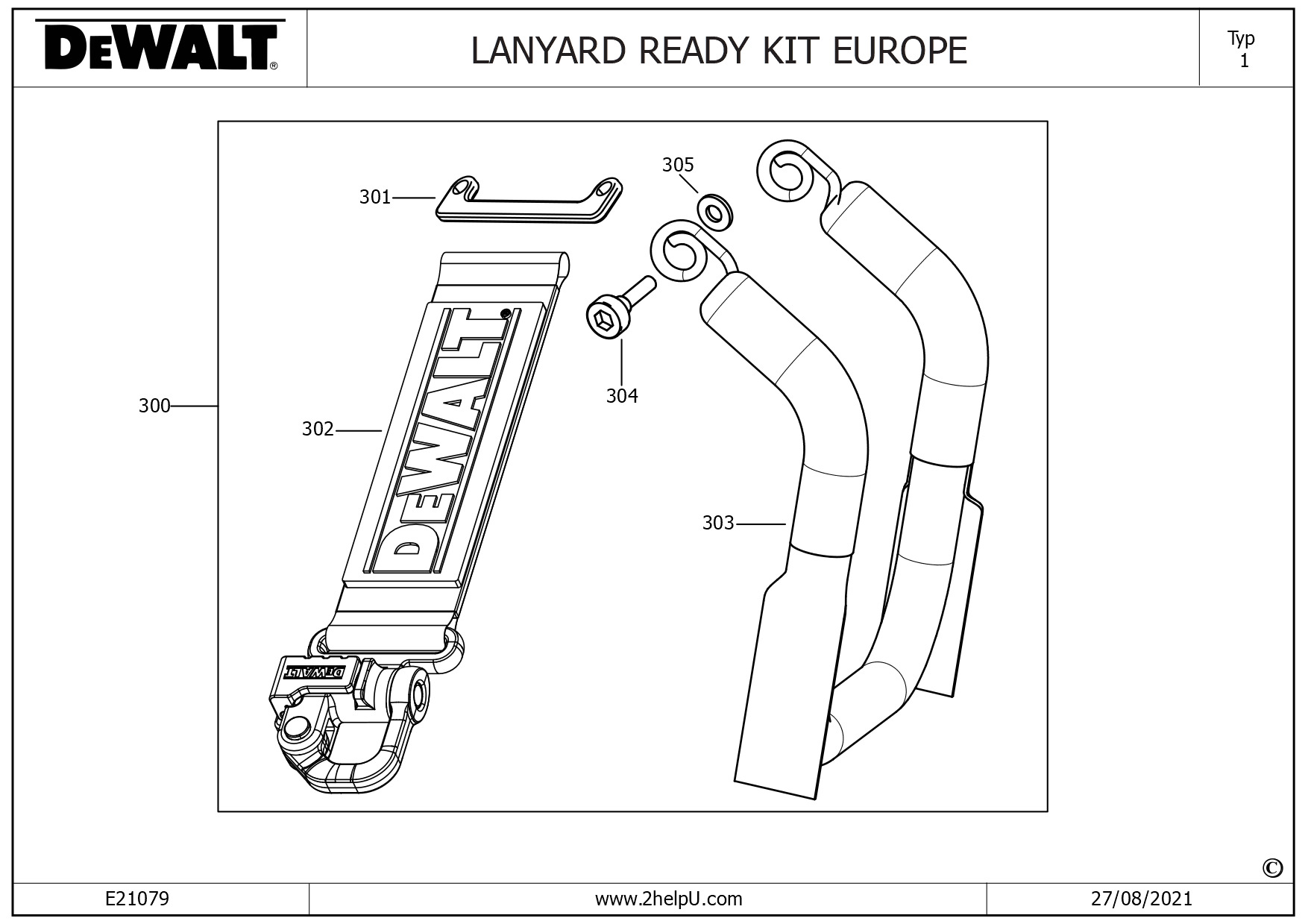

| 300 | NA012362 | 1 | SERVICE KIT | 157,92 Lei | |
| 301 | N537349 | 1 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | 254,48 Lei | |
| 836 | 596004-99 | 1 | SERVICE TOOL | 140,39 Lei | |
| 861 | N506511 | 1 | ZRP3 BT KITBOX-ZODIAC | 252,58 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei |
