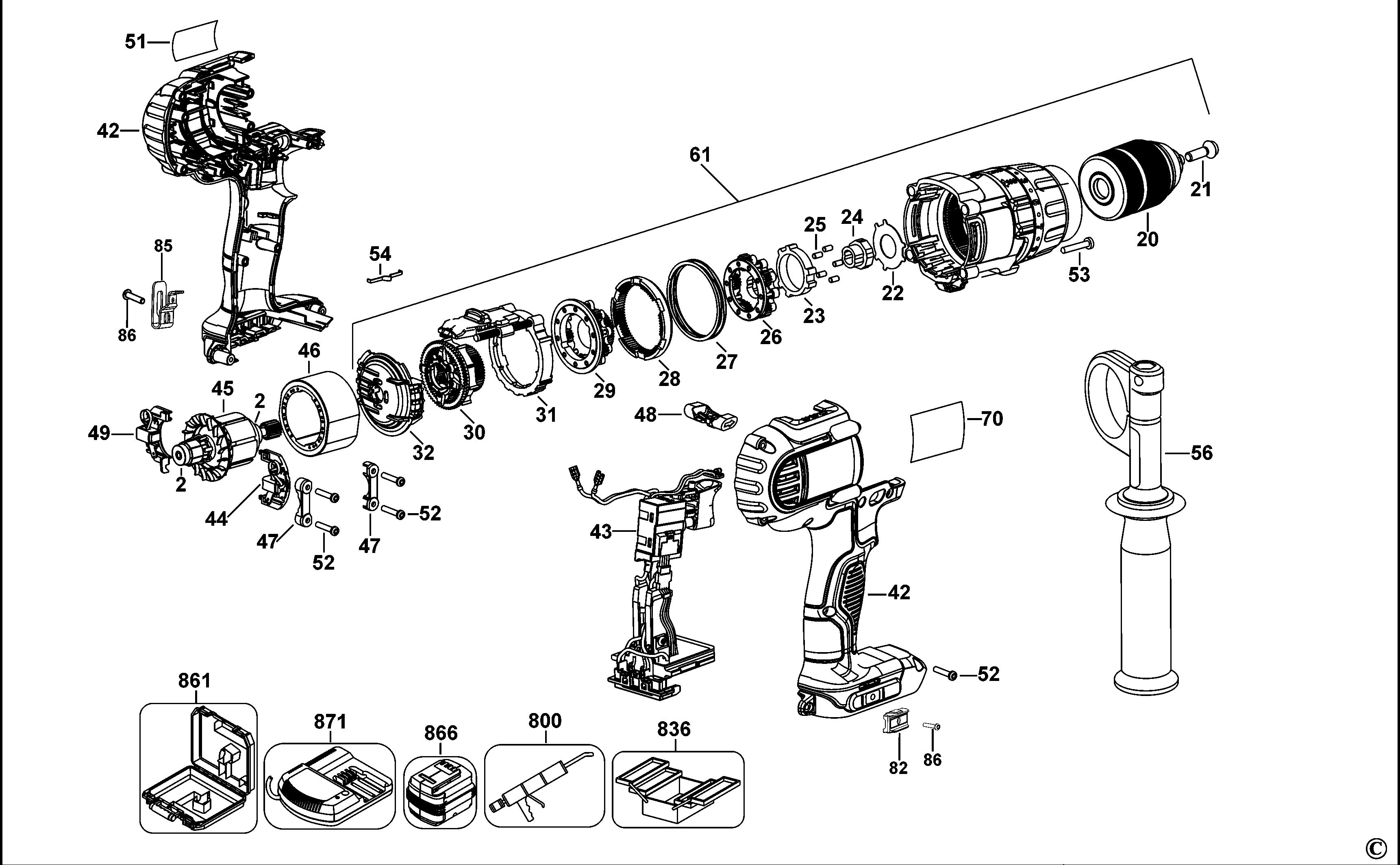

DEWALT CORDLESS DRILL (Type 1)
SKU Produs: DCD985 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N110357 | 2 | BEARING, BALL, 5 X 13 X 4 | 10,29 Lei | |
| 20 | N242399 | 1 | CHUCK KEYLESS | 181,55 Lei | |
| 21 | 605256-02 | 1 | SCREW, CHUCK (1/4-28 UNF-LH) | 4,57 Lei | |
| 22 | 652378-00 | 1 | PLATE | 4,57 Lei | |
| 25 | 654110-00 | 5 | ROLLER | 4,57 Lei | |
| 27 | N038862 | 1 | WAVE FORM SPRING | 13,5 Lei | |
| 46 | NA146883 | 1 | STATOR | 120,82 Lei | |
| 47 | N007948 | 2 | BEARING CAP (mould) | 4,57 Lei | |
| 48 | N091392 | 1 | FWD/REV BUTTON FOR XRP/ZRP (MOULD) | 10,5 Lei | |
| 51 | N096996 | 1 | LABEL EU 18V | 4,7 Lei | |
| 52 | 682211-00 | 13 | SCREW, PLASTITE | 4,57 Lei | |
| 53 | 330019-52 | 4 | SCREW | 4,57 Lei | |
| 54 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 56 | N433408 | 1 | SIDE HANDLE | 41,93 Lei | |
| 82 | N095778 | 1 | MAGNET HOLDER | 25,54 Lei | |
| 85 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 86 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | 254,48 Lei | |
| 836 | 559662-99 | 1 | SERVICE TOOL | 140,39 Lei | |
| 836 | 596004-99 | 1 | SERVICE TOOL | 140,39 Lei |
