DEWALT CORDLESS DRILL (Type 1)
SKU Produs: DCD980 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 20 | N196034 | 1 | CHUCK KEYLESS Jacobs 4000 Series - Non-C | 148,5 Lei | |
| 21 | 605256-02 | 1 | SCREW, CHUCK (1/4-28 UNF-LH) | 4,7 Lei | |
| 22 | 652378-00 | 1 | PLATE | 4,7 Lei | |
| 25 | 654110-00 | 5 | ROLLER | 4,7 Lei | |
| 27 | N038862 | 1 | WAVE FORM SPRING | 13,5 Lei | |
| 46 | NA146883 | 1 | STATOR | 123,6 Lei | |
| 47 | N007948 | 2 | BEARING CAP (mould) | 4,7 Lei | |
| 48 | 650414-00 | 1 | FWD REV MID BUTTON FOR 2765 (MOULD) | 5,1 Lei | |
| 50 | 148354-03 | 1 | CLIP, BIT HOLDER | 4,7 Lei | |
| 51 | N028034 | 1 | LABEL ID | 4,5 Lei | |
| 52 | 682211-00 | 13 | SCREW, PLASTITE | 4,7 Lei | |
| 53 | 330019-52 | 4 | SCREW | 4,7 Lei | |
| 54 | N014681 | 2 | LEAF SPRING | 4,7 Lei | |
| 56 | N433408 | 1 | SIDE HANDLE | 42,9 Lei | |

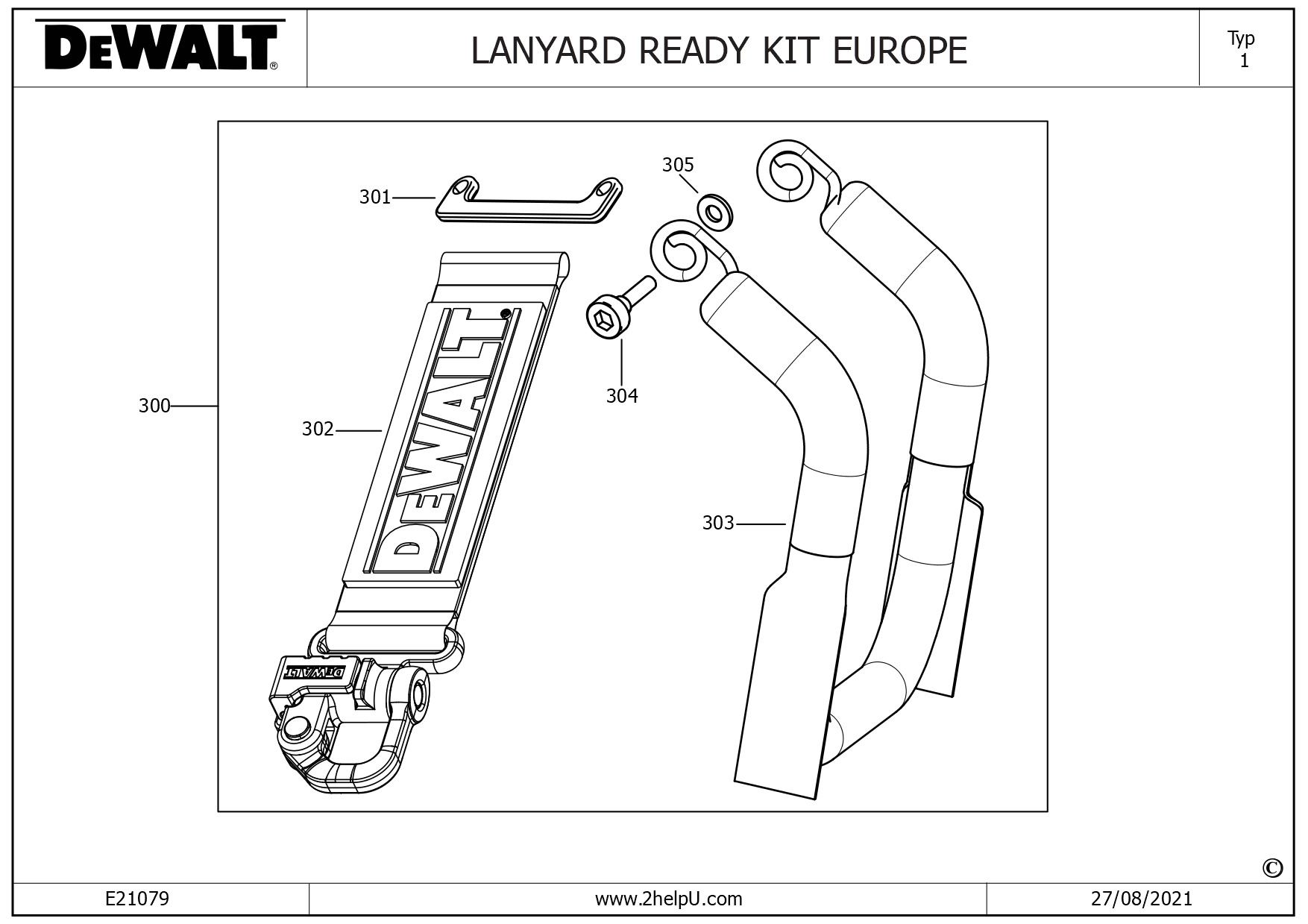

| 301 | N537349 | 1 | STRAP. HOOKED | 4,7 Lei | |
| 302 | NA012391 | 2 | BRACKET | 42,9 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 42,9 Lei | |
| 304 | N542271 | 2 | SCREW | 13 Lei | |
| 305 | N462739 | 2 | WASHER | 4,7 Lei | |
| 800 | N017298 | 1 | GREASE | 384 Lei | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | 252,2 Lei | |
| 836 | 559662-99 | 1 | SERVICE TOOL | 135,2 Lei | |
| 867 | 650912-00 | 1 | SAFETY CAP (Li-Ion - Nano) | 4,5 Lei |
