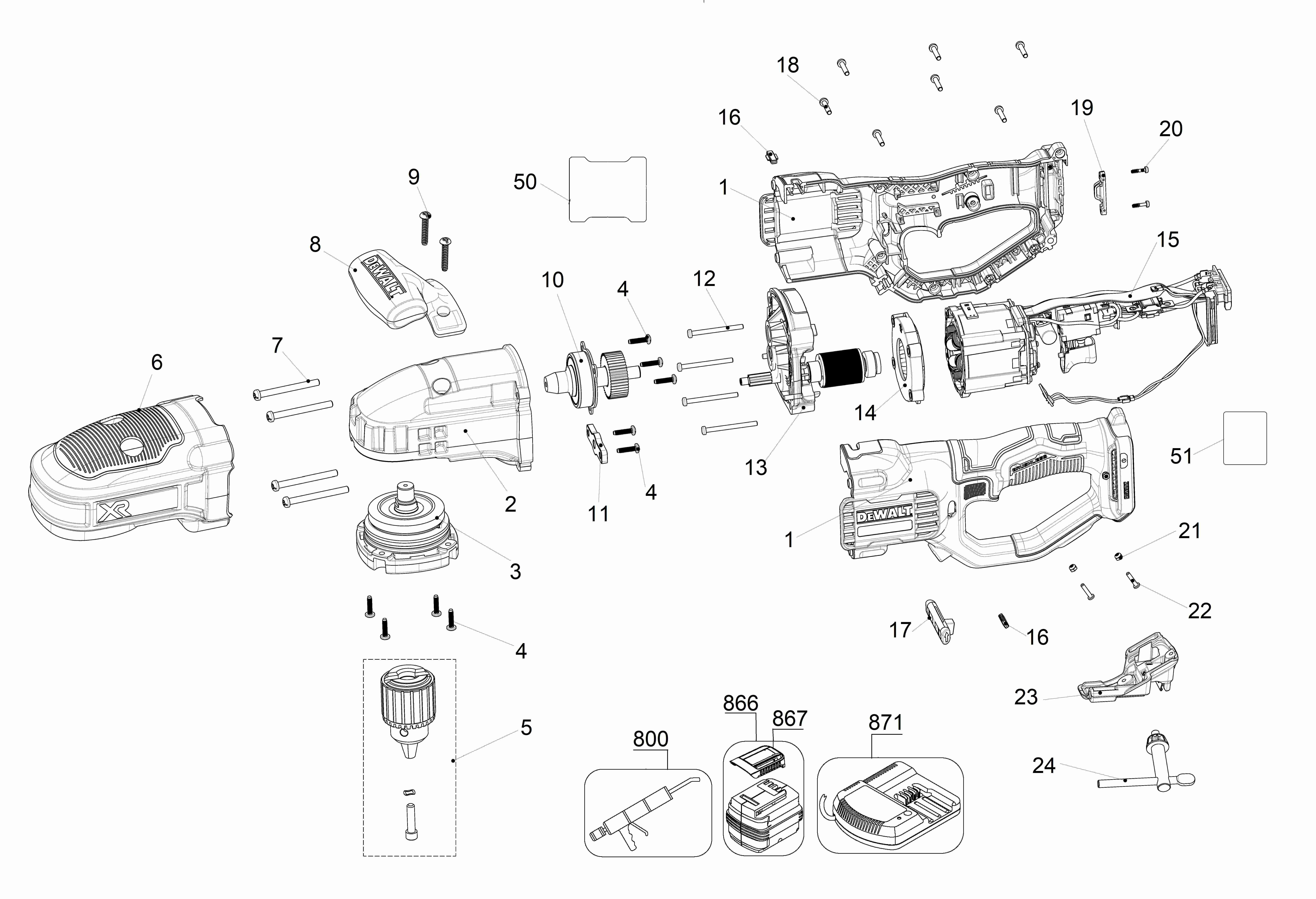

DEWALT RIGHT ANGLE DRILL (Type 1)
SKU Produs: DCD444N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA253071 | 1 | HOUSING SA | 66,15 Lei | |
| 2 | N901130 | 1 | GEARCASE SA | 208,74 Lei | |
| 3 | N657904 | 1 | SPINDLE SA | 361,33 Lei | |
| 4 | 330045-06 | 9 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 5 | N690172 | 1 | CHUCK SA | 200,99 Lei | |
| 7 | 330019-74 | 4 | SCREW | 3,78 Lei | |
| 8 | N514195 | 1 | HANDLE | 25,54 Lei | |
| 9 | N561739 | 2 | SCREW | 4,57 Lei | |
| 10 | N901132 | 1 | GEAR & SHAFT | 186,17 Lei | |
| 11 | N764617 | 1 | DEFLECTOR | 12,5 Lei | |
| 12 | 330019-08 | 4 | SCREW, PLASTIC THREAD FORM M3.5 * 45 T1 | 4,57 Lei | |
| 13 | N901134 | 1 | ROTOR SA | 373,38 Lei | |
| 14 | N827399 | 1 | BAFFLE | 7,14 Lei | |
| 15 | N901136 | 1 | STATOR SA | 1,14 Lei | |
| 16 | N394333 | 2 | LENS | 4,57 Lei | |
| 17 | N508751 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 18 | 330019-04 | 7 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 19 | N787996 | 1 | INSERT | 4,57 Lei | |
| 20 | N831593 | 2 | SCREW | 4,57 Lei | |
| 21 | 330021-11 | 2 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 22 | N576469 | 2 | SCREW | 4,57 Lei | |
| 23 | N901133 | 1 | CHUCK KEY HOLDER | 43,16 Lei | |
| 24 | NA015988 | 1 | CHUCK KEY | 25,54 Lei | |
| 50 | NA248566 | 1 | RATING LABEL | 3,78 Lei | |
| 51 | NA248570 | 1 | WARNING LABEL | 3,78 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei |
