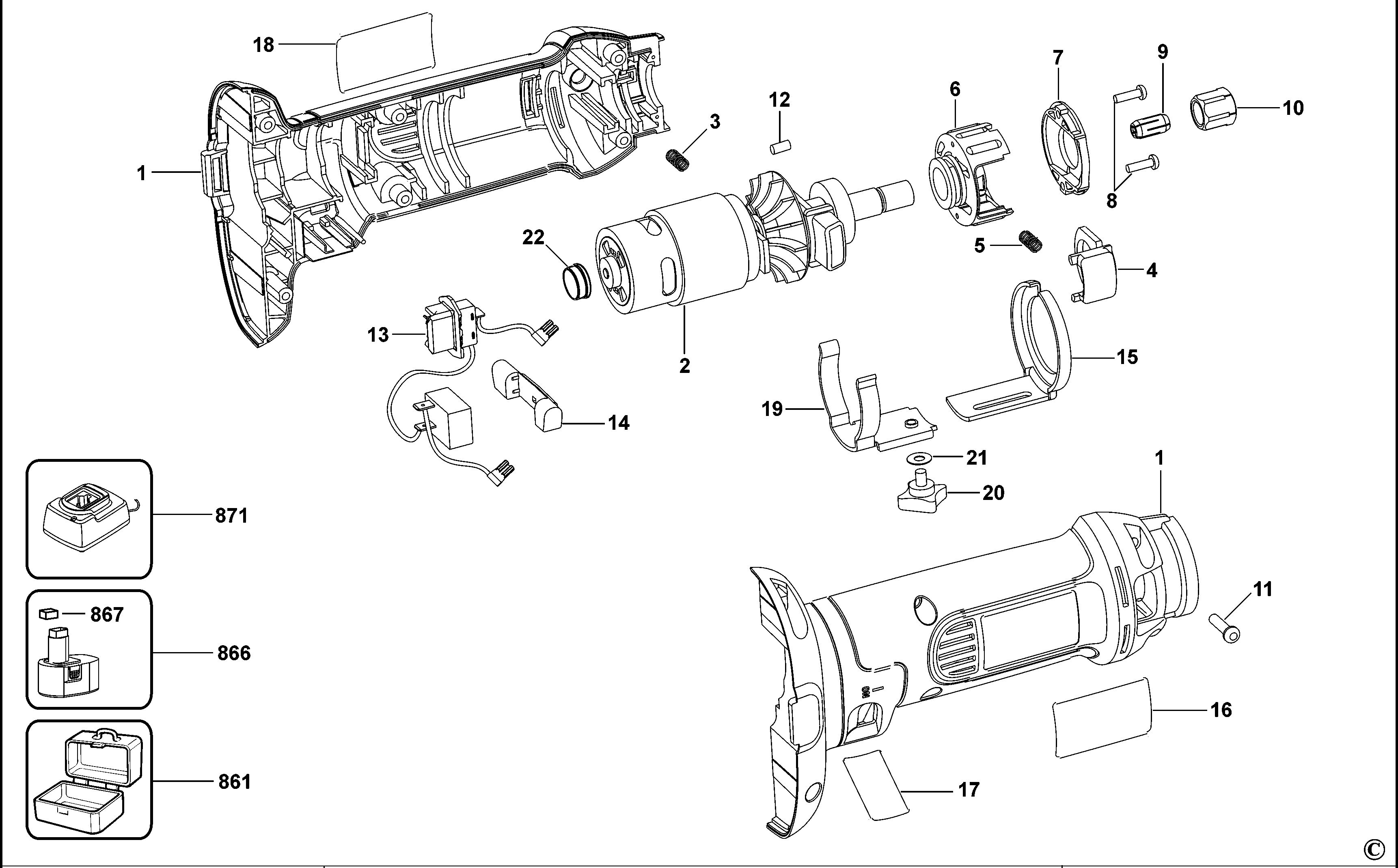

DEWALT CUTTER (Type 1)
SKU Produs: DC550 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 389461-00 | 1 | COMP. SPRING, Not Stkd | 4,57 Lei | |
| 4 | 623263-00 | 1 | COLLET LOCK | 41,93 Lei | |
| 5 | 392448-00 | 1 | COMP. SPRING, Not Stkd | 4,57 Lei | |
| 6 | 623315-00 | 1 | COLLET GRIP | 12,71 Lei | |
| 7 | 389458-00 | 1 | TOP | 17,02 Lei | |
| 8 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 10 | 389245-00 | 1 | COLLET NUT | 80,04 Lei | |
| 11 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 12 | 145312-00 | 2 | RUBBER PLUG | 4,57 Lei | |
| 15 | 389459-00 | 1 | GUIDE, | 21,85 Lei | |
| 19 | 389460-00 | 1 | GUIDE BASE | 15,12 Lei | |
| 20 | 396992-01 | 1 | KNOB | 5,21 Lei | |
| 21 | 045687-00 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 22 | 625759-00 | 1 | BOOT | 4,57 Lei | |
| 867 | 645221-00 | 1 | CAP | 4,57 Lei |
