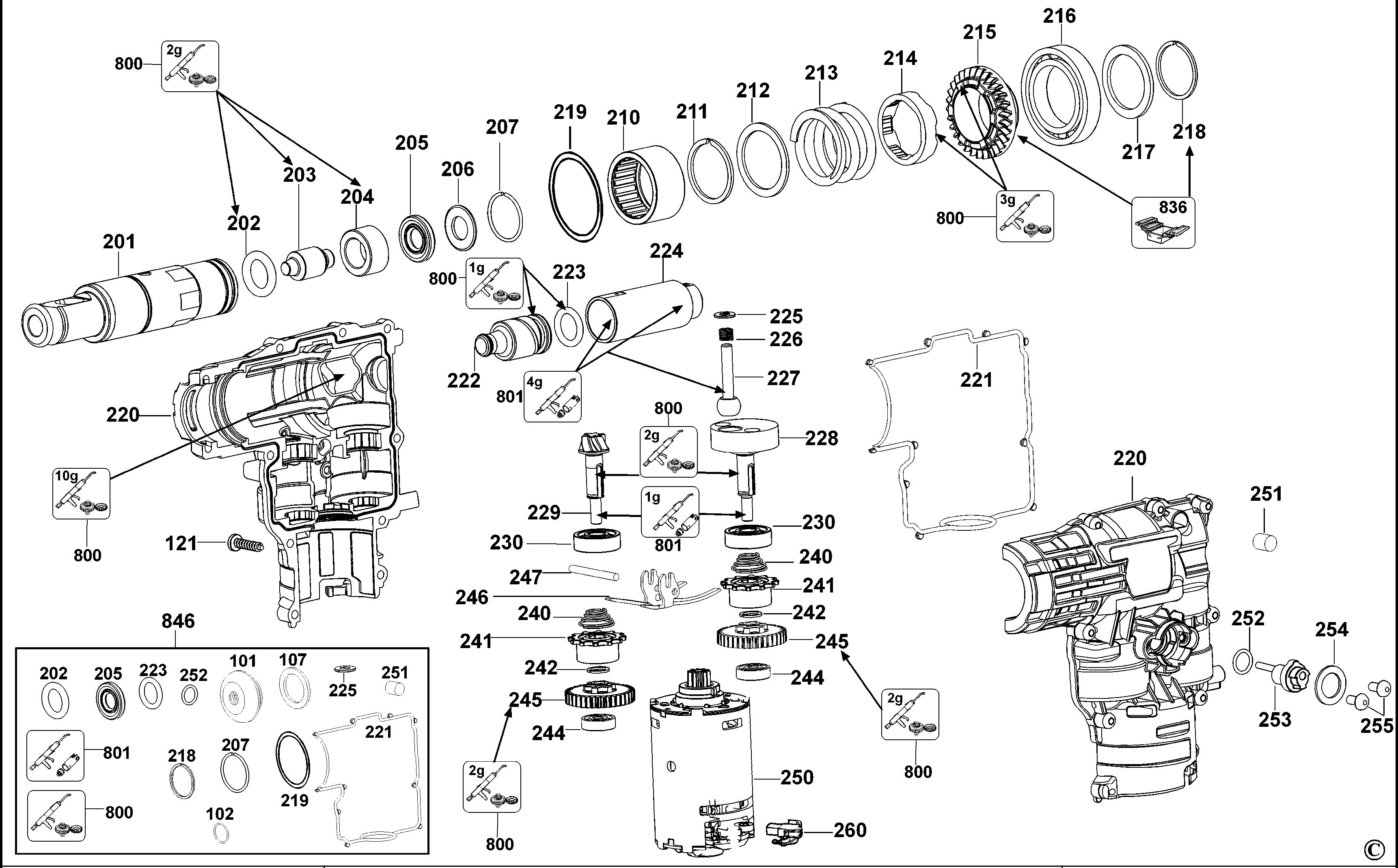

DEWALT ROTARY HAMMER (Type 2)
SKU Produs: DC233K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 323489-00 | 1 | CAP | 7,5 Lei | |
| 102 | 579212-00 | 1 | RING SNAP 21 | 5,3 Lei | |
| 103 | N504215 | 1 | TUBE | 26,1 Lei | |
| 104 | 583890-00 | 1 | BALL 7.0 | 5,3 Lei | |
| 105 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,5 Lei | |
| 106 | 871690 | 1 | SPRING BEVEL | 4,7 Lei | |
| 107 | 590306-00 | 1 | FELT, SPINDLE | 5,3 Lei | |
| 112 | 575023-00 | 1 | MODE SELECTOR, KNOB | 7,5 Lei | |
| 113 | 324006-16 | 1 | SCREW, TAPTITE M4 | 15,5 Lei | |
| 114 | 478843-00 | 1 | SPRING, PRESSURE MODESEL | 4,5 Lei | |
| 115 | 575026-00 | 1 | MODE SELECTOR, CAP | 4,7 Lei | |
| 116 | 575024-00 | 1 | MODE SELECTOR, RELEASE BUTTON | 4,7 Lei | |
| 120 | N191953 | 1 | SA BATTERY COVER 36V DCH (SERVICE) | 94,2 Lei | |
| 121 | 330065-08 | 21 | SCREW M4X18 | 4,7 Lei | |
| 122 | 578218-00 | 1 | BAR, FOWARD/REVERSE BLACK | 7,5 Lei | |
| 123 | 575030-00 | 1 | SPRING, TOP, AVS | 4,7 Lei | |
| 124 | 575032-00 | 2 | PIN, CYLINDER 8*18, AVS | 6,4 Lei | |
| 125 | 479313-00 | 1 | SPRING, BOTTOM, AVS | 4,7 Lei | |
| 131 | 495610-02 | 1 | LEAD, BROWN, WSH1-WSH | 19,5 Lei | |
| 132 | 495610-03 | 1 | LEAD, BLACK, WSH1-WSH | 16,6 Lei | |
| 140 | 930026-01 | 1 | BUMPER SPONGE | 4,7 Lei | |
| 160 | 493687-00 | 1 | SIDE HANDLE | 53,4 Lei | |
| 170 | 580787-00 | 1 | DEPTH STOP | 6,4 Lei | |
| 201 | 492807-00 | 1 | NQCC SPINDLE, DCH (SERVICE) | 219,9 Lei | |
| 202 | 323711-02 | 1 | RING ,O 12 X 4 | 4,7 Lei | |
| 203 | 492808-00 | 1 | PIECE BEAT, DCH (SERVICE) | 26,1 Lei | |
| 204 | 492809-00 | 1 | GUIDE, BEATPIECE, DCH (SERVICE) | 13 Lei | |
| 205 | N451068 | 1 | CATCHRING | 8,8 Lei | |
| 206 | 327087-00 | 1 | WASHER CATCH | 13 Lei | |
| 207 | 323762-07 | 1 | RING SNAP 22.5 | 4,7 Lei | |
| 210 | 590302-00 | 1 | BEARING, NEEDLE | 40,9 Lei | |
| 211 | 488105-00 | 1 | CIRCLIP SW28 | 4,7 Lei | |
| 212 | 589350-00 | 1 | WASHER CLUTCH | 7,5 Lei | |
| 213 | 589346-00 | 1 | SPRING, CLUTCH | 20,4 Lei | |
| 216 | 479478-00 | 1 | BEARING, BALL 6906 | 34,8 Lei | |
| 216 | 479516-00 | 1 | HAMMER PIN | 14,2 Lei | |
| 218 | 488390-00 | 1 | CIRCLIP SW26 1.5MM | 4,7 Lei | |
| 219 | 491536-00 | 1 | O-RING SEAL CLAMSHELL | 4,7 Lei | |
| 221 | 478909-00 | 1 | SEAL, CLAMSHELL | 15,5 Lei | |
| 222 | N178363 | 1 | SERVICE KIT RAM (SERVICE) | 42,9 Lei | |
| 223 | 577168-00 | 1 | RING O DYNAMIC 13X3 | 5,3 Lei | |
| 224 | 492822-00 | 1 | HOLLOW PISTON, DCH (SERVICE) | 98,8 Lei | |
| 225 | N108992 | 1 | WASHER | 4,7 Lei | |
| 226 | 490286-00 | 1 | SPRING | 4,7 Lei | |
| 227 | 492823-00 | 1 | PIN-BALL, DCH (SERVICE) | 38,6 Lei | |
| 230 | N168103 | 2 | BALL BEARING 608 | 13 Lei | |
| 240 | N466046 | 2 | SPRING, TRANSMISSION | 4,7 Lei | |
| 242 | 323763-10 | 2 | RING. SNAP 8 | 4,7 Lei | |
| 244 | N621023 | 2 | BEARING, BALL 625 | 14,2 Lei | |
| 245 | N450704 | 2 | SA GEAR 3M WIDTH BEARING (SERVICE) | 98,8 Lei | |
| 246 | 575022-00 | 1 | PLATE, TRANSMISSION | 14,2 Lei | |
| 247 | 590312-00 | 1 | PIN | 4,7 Lei | |
| 250 | 492924-00 | 1 | SA MOTOR 36V, DCH (SERVICE) | 584,2 Lei | |
| 251 | 582865-00 | 1 | FELT | 5,3 Lei | |
| 252 | 323711-34 | 1 | "O RING, 9 X 1.5" | 4,7 Lei | |
| 800 | 870889-03 | 2 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 31,6 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 26,1 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 432,9 Lei | |
| 836 | 596006-99 | 1 | SERVICE TOOLING KIT | 70,2 Lei | |
| 836 | 596007-99 | 1 | SERVICE TOOLING KIT | 252,2 Lei | |
| 846 | N455852 | 1 | SERVICE KIT NQCC DCH (SERVICE) | 94,2 Lei |
