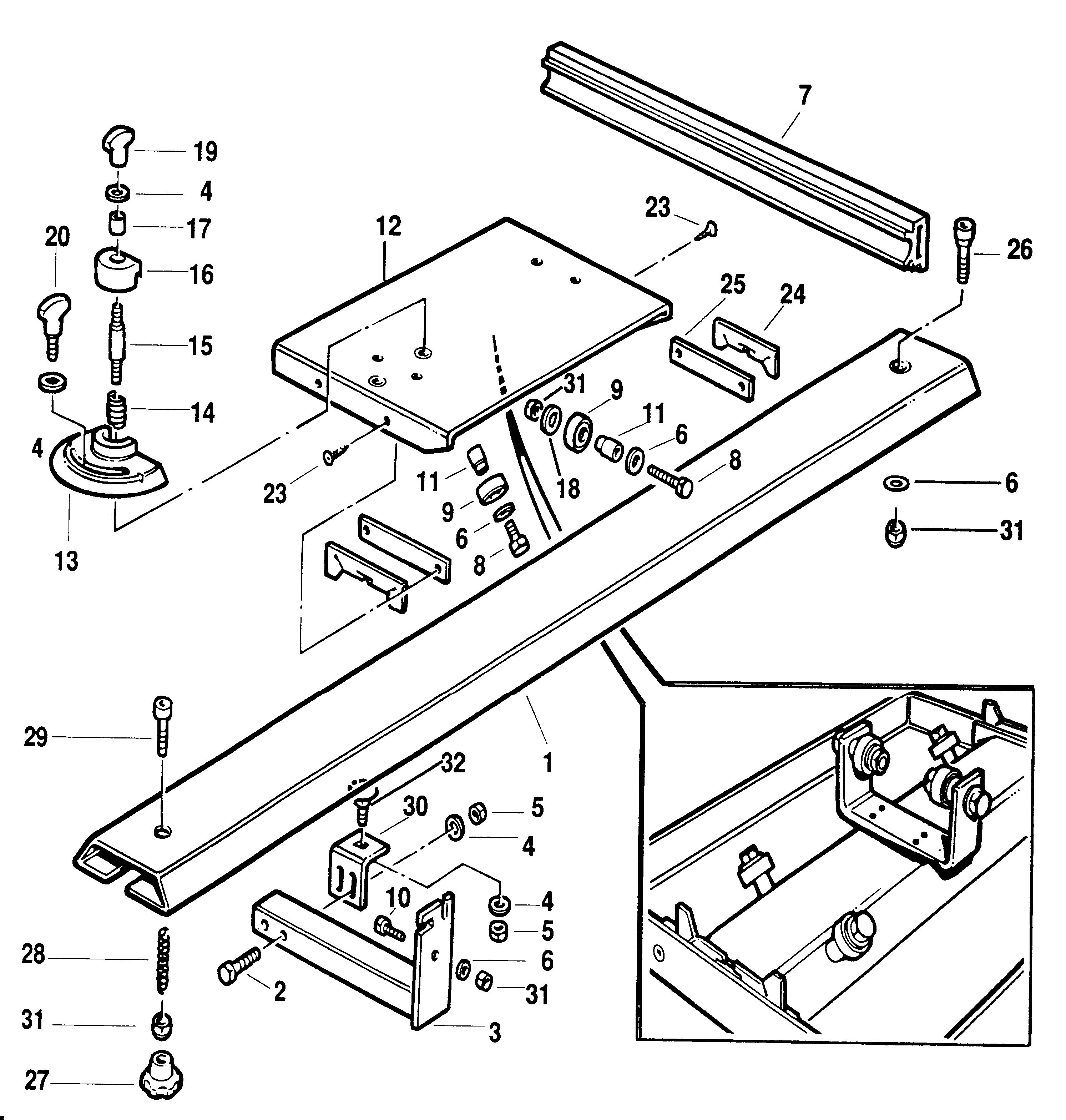

DEWALT TABLE (Type 1)
SKU Produs: DA410 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 860086-09 | 4 | SCREW,HEX M.8X45 UNI 5737 | 4,7 Lei | |
| 4 | 860073-03 | 8 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 5 | 860083-04 | 6 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 6 | 860075-00 | 8 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 8 | 860085-10 | 6 | SCREW,HEX M.6X25 UNI 5739 | 4,7 Lei | |
| 9 | N110358 | 6 | BEARING | 17,4 Lei | |
| 10 | 860301-16 | 2 | SQUARE HEAD BUTTN SCREW | 4,7 Lei | |
| 13 | 941708-00 | 1 | SCALE HOLDER | 51 Lei | |
| 14 | 941759-00 | 1 | SPRING | 13,5 Lei | |
| 15 | 942146-00 | 1 | SCREW | 36,8 Lei | |
| 16 | 941746-00 | 1 | STOP PLATE | 36,8 Lei | |
| 18 | 860074-02 | 4 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 19 | 941756-00 | 1 | WING NUT M8 | 8,8 Lei | |
| 20 | 760243-00 | 1 | WING SCREW M8X30 | 40,9 Lei | |
| 27 | 946469-00 | 1 | KNOB | 5,3 Lei | |
| 31 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 32 | 949891-01 | 2 | SQUARE HEAD BUTTON SCREW | 4,7 Lei |
