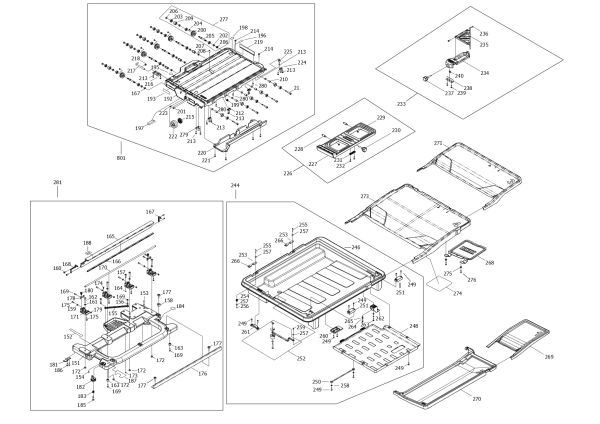

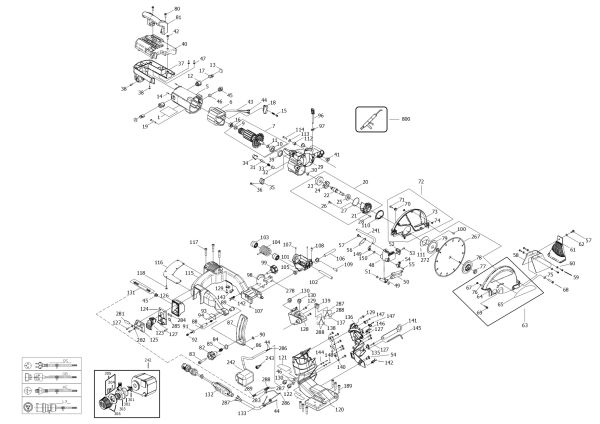

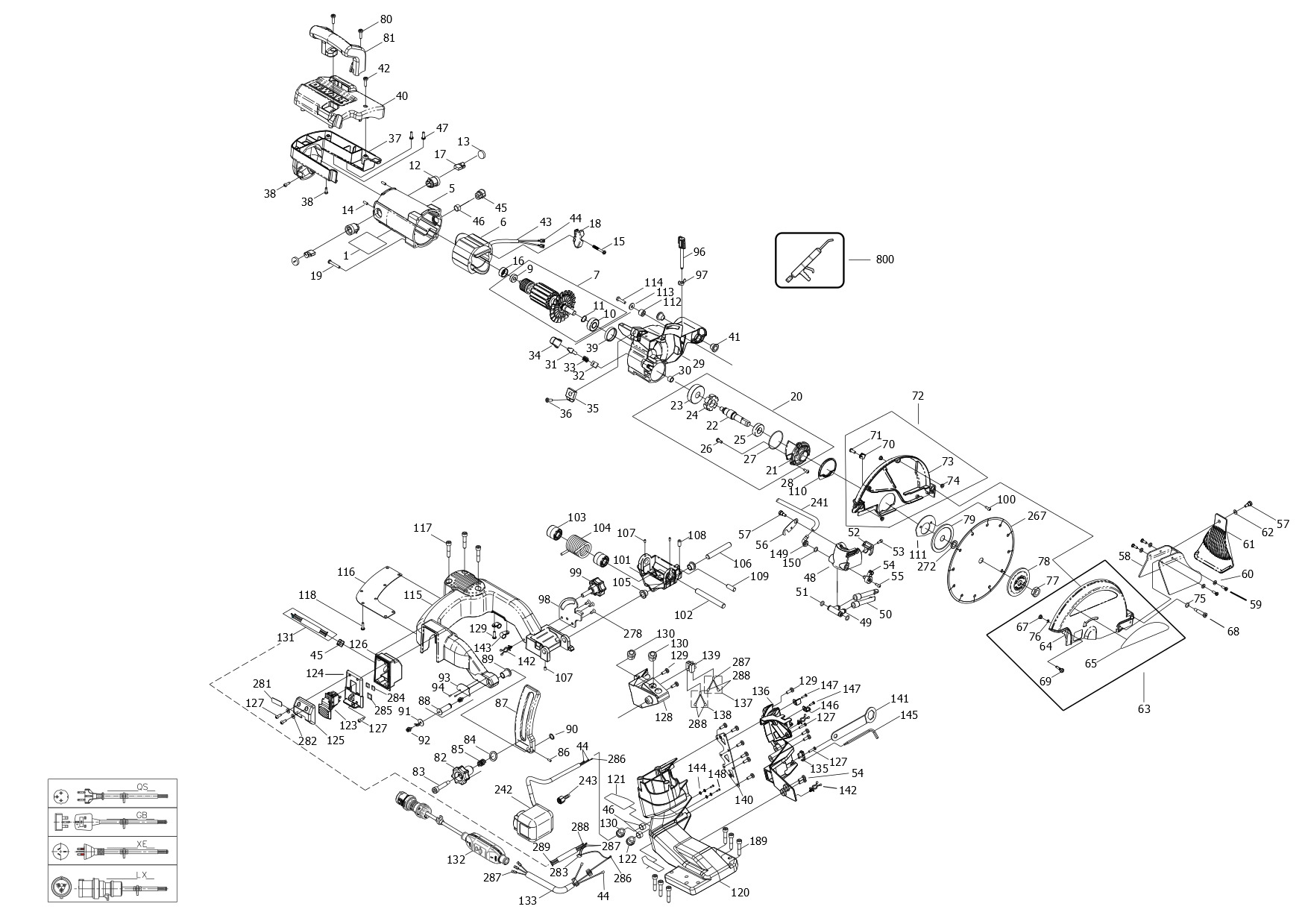

DEWALT TILE SAW (Type 1)
SKU Produs: D36000 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | N595860 | 1 | FIELD CASE | 120,82 Lei | |
| 6 | N804306 | 1 | FIELD SA | 451,79 Lei | |
| 7 | N854649 | 1 | ARMATURE | 713,77 Lei | |
| 9 | N043347 | 1 | BEARING | 17,02 Lei | |
| 10 | 605040-27 | 1 | BALL BEARING | 13,85 Lei | |
| 11 | 398605-00 | 1 | Ring Retaining | 4,57 Lei | |
| 12 | N595864 | 2 | BRUSH BOX LEAD | 25,54 Lei | |
| 13 | N595941 | 2 | BRUSH COVER | 4,57 Lei | |
| 14 | 618305-07 | 2 | SCREW | 4,57 Lei | |
| 15 | 618303-03 | 2 | SCREW | 7,37 Lei | |
| 16 | 609970-00 | 1 | CUP, RUBBER | 4,57 Lei | |
| 17 | N854657 | 2 | BRUSH PAIR | 17,02 Lei | |
| 18 | N600270 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 19 | N661222 | 4 | SCREW | 4,57 Lei | |
| 20 | 612692-00 | 1 | GEARCASE COVER SA | 307,21 Lei | |
| 21 | 612661-00 | 1 | COVER GEARCASE | 25,54 Lei | |
| 22 | 612695-00 | 1 | SPINDLE | 96,56 Lei | |
| 23 | 612696-00 | 1 | Gear | 130,35 Lei | |
| 24 | 612697-00 | 1 | HUB | 34,05 Lei | |
| 25 | 605040-41 | 1 | BEARING | 25,54 Lei | |
| 26 | 618302-02 | 16 | SCREW | 5,21 Lei | |
| 27 | 056122-00 | 1 | O RING | 4,57 Lei | |
| 28 | 618302-03 | 18 | SCREW | 5,21 Lei | |
| 29 | 627524-00 | 1 | ARM | 349,13 Lei | |
| 30 | 330004-06 | 1 | BEARING, NEEDLE | 10,29 Lei | |
| 31 | 612698-00 | 1 | SPINDLE LOCK | 12,71 Lei | |
| 32 | 618568-00 | 1 | FELT SEAL | 6,23 Lei | |
| 33 | 398736-00 | 2 | SPRING | 4,57 Lei | |
| 34 | 616758-00 | 1 | LOCK BUTTON | 5,21 Lei | |
| 35 | 612701-00 | 1 | LINER | 5,21 Lei | |
| 36 | 618302-00 | 14 | SCREW | 4,57 Lei | |
| 37 | N607327 | 1 | END CAP | 30,87 Lei | |
| 38 | 618303-01 | 33 | SCREW | 4,57 Lei | |
| 39 | 609971-00 | 1 | SLEEVE | 4,57 Lei | |
| 40 | 612722-00 | 1 | COVER | 88,55 Lei | |
| 41 | 612709-00 | 4 | BUSHING | 52,22 Lei | |
| 42 | 618302-11 | 1 | SCREW | 6,23 Lei | |
| 44 | 450213-00 | 2 | TERMINAL | 5,21 Lei | |
| 45 | 682149-00 | 1 | BUSHING STR.RLF | 13,85 Lei | |
| 47 | 618303-05 | 5 | PLASTIC SCREW | 4,57 Lei | |
| 48 | N613271 | 1 | NOSE | 17,02 Lei | |
| 49 | N597141 | 1 | MANIFOLD ASSEMBLY | 6,23 Lei | |
| 50 | 613462-00 | 2 | NOZZLE | 7,37 Lei | |
| 51 | 618353-00 | 4 | O RING | 5,21 Lei | |
| 52 | 612773-00 | 1 | PLATE | 6,23 Lei | |
| 53 | 618303-00 | 3 | SCREW | 4,57 Lei | |
| 54 | N613269 | 1 | LEVER | 4,57 Lei | |
| 55 | 618303-02 | 1 | SCREW | 4,57 Lei | |
| 56 | 612728-00 | 1 | RETAINER | 15,12 Lei | |
| 57 | 618369-00 | 5 | SCREW | 8,64 Lei | |
| 58 | 612776-00 | 1 | FLAP | 34,05 Lei | |
| 59 | 618369-01 | 8 | SCREW | 4,57 Lei | |
| 60 | 618540-00 | 8 | WASHER | 4,57 Lei | |
| 61 | 612778-00 | 1 | REAR FLAP | 30,87 Lei | |
| 62 | 618540-01 | 1 | WASHER | 6,23 Lei | |
| 63 | 618314-00 | 1 | COVER | 412,91 Lei | |
| 65 | 395021-00 | 1 | LABEL | 15,12 Lei | |
| 67 | 148608-02 | 2 | INSERT | 7,37 Lei | |
| 68 | 618369-02 | 1 | SCREW | 10,29 Lei | |
| 70 | 619683-00 | 1 | CLAMP | 4,57 Lei | |
| 70 | 619683-00 | 3 | CLAMP | 4,57 Lei | |
| 72 | 624451-00 | 1 | COVER | 472,24 Lei | |
| 76 | 1007796-00 | 1 | CLIP | 4,57 Lei | |
| 77 | 616755-00 | 1 | NUT | 7,37 Lei | |
| 78 | N596516 | 1 | WASHER | 57,81 Lei | |
| 79 | 1005935-00 | 1 | WASHER INNER CLAMP | 169,36 Lei | |
| 80 | 618302-08 | 2 | SCREW | 10,29 Lei | |
| 81 | 612702-00 | 1 | HANDLE | 70,39 Lei | |
| 82 | 618069-00 | 1 | KNOB | 41,93 Lei | |
| 83 | 623621-00 | 1 | BOLT | 25,54 Lei | |
| 84 | N596848 | 1 | WASHER | 7,37 Lei | |
| 86 | 618305-01 | 1 | SCREW | 5,21 Lei | |
| 87 | 612671-00 | 1 | BRACKET | 80,04 Lei | |
| 88 | 612717-00 | 1 | PIN | 88,55 Lei | |
| 89 | 612709-01 | 1 | BUSHING | 88,55 Lei | |
| 90 | 618542-00 | 1 | RETAINER | 7,37 Lei | |
| 91 | 623509-00 | 1 | POINTER | 17,02 Lei | |
| 92 | 153460-06 | 1 | SCREW | 5,21 Lei | |
| 93 | 618133-00 | 1 | LABEL | 12,71 Lei | |
| 94 | 013486-00 | 2 | SCREW | 4,57 Lei | |
| 94 | 13830000 | 2 | BEARING | 40,9 Lei | |
| 94 | 18810000 | 2 | ROD | 4,5 Lei | |
| 96 | 616763-00 | 1 | KNOB | 30,87 Lei | |
| 97 | 613365-00 | 1 | WING NUT | 4,57 Lei | |
| 98 | N596532 | 1 | PLATE | 80,04 Lei | |
| 99 | 612712-00 | 1 | KNOB | 17,02 Lei | |
| 101 | 612669-00 | 1 | TRUNNION | 213,19 Lei | |
| 102 | 612708-00 | 1 | PIVOT SHAFT | 120,82 Lei | |
| 103 | 612710-00 | 2 | SPACER | 17,02 Lei | |
| 104 | 612711-00 | 1 | SPRING | 52,22 Lei | |
| 106 | 614031-00 | 1 | PIVOT SHAFT | 130,35 Lei | |
| 107 | 618305-00 | 4 | GRUB SCREW | 6,23 Lei | |
| 108 | 618305-06 | 1 | SCREW | 4,57 Lei | |
| 109 | 618305-02 | 1 | SCREW | 7,37 Lei | |
| 110 | 612704-00 | 1 | SLEEVE | 7,37 Lei | |
| 111 | 612705-00 | 1 | RETAINER | 21,85 Lei | |
| 112 | 612707-00 | 1 | SPACER | 4,57 Lei | |
| 113 | 618540-04 | 2 | WASHER | 6,23 Lei | |
| 113 | 618540-04 | 3 | WASHER | 6,23 Lei | |
| 114 | 618304-00 | 1 | SCREW | 8,64 Lei | |
| 115 | N596892 | 1 | ARM | 667,9 Lei | |
| 116 | 616771-00 | 1 | PLATE | 25,54 Lei | |
| 117 | 616770-01 | 3 | SCREW | 21,85 Lei | |
| 118 | 618302-06 | 25 | SCREW | 8,64 Lei | |
| 120 | N594385 | 1 | COLUMN | 1262,37 Lei | |
| 121 | N765290 | 1 | WARNING LABEL | 34,05 Lei | |
| 122 | N765289 | 1 | WARNING LABEL | 30,87 Lei | |
| 123 | N608508 | 1 | SWITCH | 195,02 Lei | |
| 124 | 612784-01 | 1 | PLATE | 15,12 Lei | |
| 125 | 612726-01 | 1 | BEZEL | 70,39 Lei | |
| 126 | 612727-00 | 1 | ENCLOSURE | 17,02 Lei | |
| 128 | N594389 | 1 | TERMINAL BOX | 30,87 Lei | |
| 130 | 605155-00 | 5 | RELIEF, STRAIN HEYCO SR7P-2 | 4,57 Lei | |
| 131 | N887769 | 1 | CABLE SA | 96,56 Lei | |
| 132 | N887580 | 1 | CORDSET | 570,96 Lei | |
| 133 | N914786 | 1 | WIRE | 318,26 Lei | |
| 135 | N689626 | 1 | PLATE | 12,71 Lei | |
| 136 | N638174 | 1 | COVER | 25,54 Lei | |
| 137 | N887990 | 1 | LEAD | 21,85 Lei | |
| 138 | N887991 | 1 | LEAD SA | 21,85 Lei | |
| 139 | 393520-00 | 1 | BLOCK, TERMINAL | 19,95 Lei | |
| 140 | N594390 | 1 | SUPPORT PLATE | 41,93 Lei | |
| 141 | 616769-00 | 1 | SPANNER | 21,85 Lei | |
| 142 | 388301-00 | 3 | CLIP | 5,21 Lei | |
| 145 | N813578 | 1 | WRENCH | 10,29 Lei | |
| 146 | N663160 | 2 | CLAMP | 10,29 Lei | |
| 149 | 612775-00 | 1 | CONNECTOR | 4,57 Lei | |
| 152 | N765291 | 1 | LABEL | 25,54 Lei | |
| 153 | 1006319-00 | 2 | PIN | 34,05 Lei | |
| 154 | N594406 | 1 | PIN | 4,57 Lei | |
| 155 | N612023 | 1 | PUMP | 17,02 Lei | |
| 157 | N596569 | 1 | SCREW | 5,21 Lei | |
| 158 | 146753-00 | 1 | DAMPER | 4,57 Lei | |
| 160 | 618302-09 | 4 | SCREW | 4,57 Lei | |
| 161 | N688991 | 4 | WASHER | 4,57 Lei | |
| 162 | N689356 | 4 | SCREW | 13,85 Lei | |
| 163 | 616767-00 | 4 | FOOT | 4,57 Lei | |
| 164 | N682850 | 1 | WASHER | 13,85 Lei | |
| 165 | 612732-00 | 1 | TRACK | 276,84 Lei | |
| 166 | 617352-00 | 1 | LINER | 15,12 Lei | |
| 167 | 612777-00 | 1 | CAP | 7,37 Lei | |
| 168 | 612854-00 | 1 | CAP | 7,37 Lei | |
| 170 | 612733-00 | 1 | GUIDE ROD | 213,19 Lei | |
| 171 | N597111 | 4 | BLOCK | 57,81 Lei | |
| 172 | 618539-00 | 4 | STOP NUT | 6,23 Lei | |
| 172 | 618539-00 | 12 | STOP NUT | 6,23 Lei | |
| 173 | 861340-00 | 1 | NUT | 4,57 Lei | |
| 174 | 627036-00 | 1 | PLUG | 7,37 Lei | |
| 175 | 618304-01 | 8 | SCREW | 5,21 Lei | |
| 176 | N644604 | 1 | RAIL | 252,58 Lei | |
| 177 | 618302-07 | 3 | SCREW | 12,71 Lei | |
| 178 | 612738-00 | 2 | BRACKET | 19,95 Lei | |
| 179 | 148608-01 | 4 | INSERT | 12,71 Lei | |
| 180 | 612758-00 | 2 | SCREW | 30,87 Lei | |
| 181 | N615835 | 1 | RETAINING PLATE | 13,85 Lei | |
| 182 | N594409 | 1 | STOP | 12,71 Lei | |
| 183 | N594405 | 1 | SPRING | 4,57 Lei | |
| 185 | N650348 | 1 | SCREW | 17,02 Lei | |
| 187 | N770152 | 1 | LABEL | 7,37 Lei | |
| 188 | N770149 | 1 | LABEL | 6,23 Lei | |
| 189 | 616770-00 | 6 | SCREW | 19,95 Lei | |
| 192 | N594407 | 1 | CARRIAGE | 2055,16 Lei | |
| 193 | N765288 | 1 | WARNING LABEL | 7,37 Lei | |
| 195 | 610707-00 | 2 | WARNING LABEL | 4,57 Lei | |
| 196 | 627635-00 | 1 | STRIP | 4,57 Lei | |
| 197 | N811990 | 1 | FOAM | 7,37 Lei | |
| 198 | N780068 | 1 | LABEL | 7,37 Lei | |
| 199 | 623086-00 | 1 | INSERT | 25,54 Lei | |
| 200 | 612741-00 | 5 | GUIDE | 106,98 Lei | |
| 201 | 618302-10 | 1 | SCREW | 4,57 Lei | |
| 202 | 612743-00 | 10 | SPACER | 21,85 Lei | |
| 203 | 330003-82 | 15 | BEARING | 21,85 Lei | |
| 204 | 618304-07 | 5 | SCREW | 4,57 Lei | |
| 205 | N596540 | 5 | SHAFT | 120,82 Lei | |
| 207 | 612746-00 | 3 | CYLINDER | 70,39 Lei | |
| 208 | N660522 | 1 | SCREW | 6,23 Lei | |
| 209 | 612742-00 | 10 | ROLLER | 52,22 Lei | |
| 210 | 612748-00 | 5 | SPACER | 21,85 Lei | |
| 211 | 618304-05 | 5 | SCREW | 13,85 Lei | |
| 212 | 612749-00 | 2 | PLATE | 6,23 Lei | |
| 213 | 618302-03 | 13 | SCREW | 5,21 Lei | |
| 214 | 618302-00 | 2 | SCREW | 4,57 Lei | |
| 215 | 623383-00 | 1 | DISC | 7,37 Lei | |
| 216 | N684569 | 1 | BRACKET | 13,85 Lei | |
| 217 | 617230-00 | 1 | ROD | 52,22 Lei | |
| 218 | 616785-00 | 1 | SCREW | 30,87 Lei | |
| 219 | 612755-00 | 1 | BRUSH | 41,93 Lei | |
| 220 | N632889 | 1 | CHUTE | 41,93 Lei | |
| 221 | 618369-01 | 4 | SCREW | 4,57 Lei | |
| 222 | 612757-00 | 1 | DISC | 34,05 Lei | |
| 223 | 618369-00 | 1 | SCREW | 8,64 Lei | |
| 224 | N661138 | 2 | PLATE | 12,71 Lei | |
| 225 | N811964 | 1 | BUMPER | 5,21 Lei | |
| 226 | N599255 | 1 | TABLE | 375,31 Lei | |
| 228 | 1006975-00 | 1 | PIN | 41,93 Lei | |
| 230 | 612716-00 | 2 | KNOB | 21,85 Lei | |
| 231 | 622977-00 | 1 | COVER | 6,23 Lei | |
| 232 | 618302-01 | 2 | SCREW | 4,57 Lei | |
| 233 | N596595 | 1 | GUIDE | 157,92 Lei | |
| 235 | 612761-00 | 1 | GUIDE | 130,35 Lei | |
| 238 | N596554 | 1 | PLATE | 12,71 Lei | |
| 240 | N602517 | 1 | SQUARE | 4,57 Lei | |
| 241 | N764636 | 1 | TUBE | 37,73 Lei | |
| 242 | N775113 | 1 | PUMP SA | 1158,31 Lei | |
| 243 | 616779-00 | 1 | ADAPTOR | 21,85 Lei | |
| 244 | N644191 | 1 | TRAY | 1786,07 Lei | |
| 246 | N644173 | 1 | TRAY | 1087,42 Lei | |
| 248 | N603175 | 1 | TRAY | 145,09 Lei | |
| 250 | N825533 | 1 | CORD | 15,12 Lei | |
| 251 | N689213 | 2 | PLATE | 5,21 Lei | |
| 252 | N596581 | 1 | STOP | 130,35 Lei | |
| 253 | 622976-00 | 2 | LATCH | 13,85 Lei | |
| 254 | 625913-00 | 2 | SPRING | 4,57 Lei | |
| 255 | 624727-00 | 2 | PIN | 4,57 Lei | |
| 256 | 605365-00 | 2 | RETAINER | 7,37 Lei | |
| 257 | 618540-03 | 4 | WASHER | 4,57 Lei | |
| 260 | N613577 | 2 | RETAINER | 17,02 Lei | |
| 261 | N607584 | 1 | PLATE | 6,23 Lei | |
| 262 | N811963 | 1 | HOOK | 12,71 Lei | |
| 263 | N840439 | 2 | SCREW | 6,23 Lei | |
| 264 | N843016 | 2 | WASHER | 4,57 Lei | |
| 265 | N843015 | 2 | WASHER | 4,57 Lei | |
| 268 | N811962 | 1 | GUARD | 37,73 Lei | |
| 269 | N644849 | 1 | TABLE | 195,02 Lei | |
| 270 | N644848 | 1 | TABLE | 264,01 Lei | |
| 271 | N644189 | 1 | TABLE | 264,01 Lei | |
| 273 | N644188 | 1 | TABLE | 361,33 Lei | |
| 274 | N717693 | 1 | LABEL | 70,39 Lei | |
| 275 | N840489 | 2 | BUSHING | 4,57 Lei | |
| 275 | N840546 | 2 | RATING PLATE | 4,5 Lei | |
| 277 | 627857-00 | 5 | ROLLER SA | 252,58 Lei | |
| 278 | N877235 | 3 | SCREW | 15,12 Lei | |
| 279 | 612739-00 | 1 | STOP | 19,95 Lei | |
| 280 | 330022-08 | 3 | GRUB SCREW | 4,57 Lei | |
| 281 | N594402 | 1 | FRAME SA | 3011,72 Lei | |
| 301 | 1004784-58 | 1 | IMPELLOR | 21,85 Lei | |
| 302 | 1004784-59 | 1 | O RING | 19,95 Lei | |
| 303 | 1004784-60 | 1 | REGULATOR | 30,87 Lei | |
| 304 | 1004784-61 | 1 | O RING | 17,02 Lei | |
| 305 | 1004784-62 | 1 | KNOB SA | 30,87 Lei | |
| 306 | 1004784-63 | 1 | SCREEN | 57,81 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei | |
| 801 | N594408 | 1 | CARRIER SA | 3326,42 Lei |
