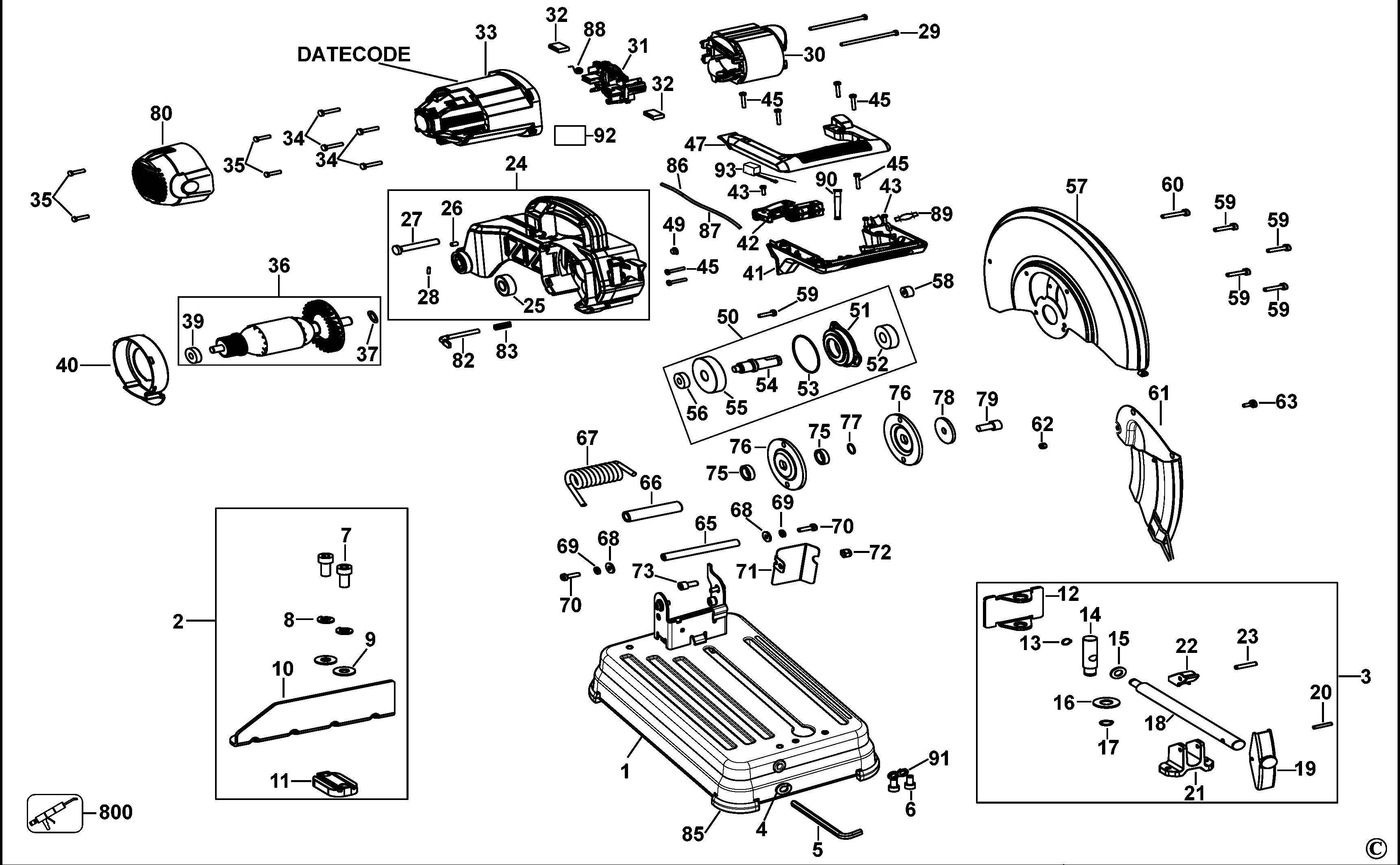

DEWALT CHOP SAW (Type 1)
SKU Produs: D28730 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N537855 | 1 | S A Base (small) D28730 | 240,38 Lei | |
| 2 | N600074 | 1 | SA FIXED FENCE (SERVICE ONLY) | 96,56 Lei | |
| 3 | N600076 | 1 | SA FENCE HEAD (SERVICE ONLY) | 181,55 Lei | |
| 4 | 386765-00 | 1 | HOLDER TOOL | 7,37 Lei | |
| 5 | 384717-00 | 1 | Hex Wrench | 13,85 Lei | |
| 6 | 098123-16 | 2 | SCREW | 4,57 Lei | |
| 7 | 383450-00 | 2 | SCREW | 4,57 Lei | |
| 8 | N468716 | 2 | Spring washer D28730 | 4,57 Lei | |
| 9 | 323753-18 | 1 | WASHER, 10.4 * 24 * 2 | 7,37 Lei | |
| 10 | N583562 | 1 | Fence Ex CS | 37,73 Lei | |
| 11 | N462688 | 1 | MOUNTING BLOCK | 15,12 Lei | |
| 12 | N574509 | 1 | JAW VICE Export CS | 17,02 Lei | |
| 13 | 383169-00 | 1 | Rataining Ring | 4,57 Lei | |
| 14 | N447547 | 1 | PIN (MOVING FENCE LOCK) | 17,02 Lei | |
| 15 | 384365-00 | 1 | WASHER | 4,57 Lei | |
| 16 | 607592-00 | 1 | WASHER | 4,57 Lei | |
| 17 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 18 | N447550 | 1 | THREADED ROD | 41,93 Lei | |
| 19 | 383252-00 | 1 | Vise Handle | 13,85 Lei | |
| 19 | 912020-00 | 1 | ANDLE VISE | 8,4 Lei | |
| 20 | N127232 | 1 | PIN SPIROL (5MM X 26MM) | 4,57 Lei | |
| 21 | N449677 | 1 | VISE, MOUNT | 25,54 Lei | |
| 22 | N447568 | 1 | LOCK, VISE | 30,87 Lei | |
| 24 | N600158 | 1 | SA ARM GUARD | 300,47 Lei | |
| 25 | 605040-27 | 1 | BALL BEARING | 13,85 Lei | |
| 26 | 623092-00 | 1 | PLUG | 4,57 Lei | |
| 27 | 621104-00 | 1 | PIN | 10,29 Lei | |
| 28 | 330036-00 | 1 | ROLL PIN (DOWEL PIN) | 4,57 Lei | |
| 29 | 330019-33 | 2 | SCREW | 4,57 Lei | |
| 30 | N500154 | 1 | FIELD 230V | 307,21 Lei | |
| 31 | 385582-00 | 1 | BRUSH HOLDER | 41,93 Lei | |
| 32 | N505712 | 1 | BRUSH PAIR 230V SA | 19,95 Lei | |
| 33 | 383151-02 | 1 | FIELDCASE | 52,22 Lei | |
| 34 | 330045-16 | 4 | Screw Metal | 4,57 Lei | |
| 35 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 36 | N498636 | 1 | ARMATURE SA | 472,24 Lei | |
| 37 | 144803-00 | 2 | SEAL RING | 4,57 Lei | |
| 39 | 330003-17 | 1 | BEARING BALL (CE) | 19,95 Lei | |
| 40 | N484130 | 1 | BAFFLE | 13,85 Lei | |
| 41 | 618290-03 | 1 | HANDLE SWITCH ASSEMBLY HALF | 34,05 Lei | |
| 43 | 330019-02 | 3 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 45 | 330019-14 | 7 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 47 | 618291-02 | 1 | HANDLE SWITCH COVER HLF | 25,54 Lei | |
| 49 | N467523 | 1 | RUBBER SEAL | 4,57 Lei | |
| 50 | N703977 | 1 | GEARCASE COVER SA | 240,38 Lei | |
| 51 | N612822 | 1 | GEAR CASE COVER MACH | 21,85 Lei | |
| 52 | 605040-31 | 1 | BEARING,BALL CW (17X40X12, 6203) | 19,95 Lei | |
| 53 | 099180-46 | 1 | O-RING | 4,57 Lei | |
| 55 | 621078-00 | 1 | Gear | 52,22 Lei | |
| 57 | 639967-00 | 1 | GUARD UPPER | 161,6 Lei | |
| 58 | 629619-00 | 1 | SPACER | 5,21 Lei | |
| 59 | 330045-15 | 5 | Screw Metal | 4,57 Lei | |
| 60 | 330045-16 | 1 | Screw Metal | 4,57 Lei | |
| 61 | N615902 | 1 | GUARD LOWER | 130,35 Lei | |
| 62 | 330021-02 | 1 | Stop Nut M8 | 4,57 Lei | |
| 63 | 384844-00 | 1 | SPECIAL SCREW | 6,23 Lei | |
| 65 | 621101-00 | 1 | Pivot sheff | 17,02 Lei | |
| 65 | N388906 | 1 | PIVOT SHAFT | 13,5 Lei | |
| 66 | N467337 | 1 | SPACER, SPRING | 8,64 Lei | |
| 67 | N447533 | 1 | TORSION SPRING | 25,54 Lei | |
| 68 | 330016-18 | 2 | WASHER | 4,57 Lei | |
| 69 | 098197-10 | 2 | WASHER LOCK | 4,57 Lei | |
| 70 | 153778-01 | 2 | Mach screw | 4,57 Lei | |
| 71 | N449087 | 1 | Spark deflector Ex cs | 8,64 Lei | |
| 72 | 330021-02 | 1 | Stop Nut M8 | 4,57 Lei | |
| 73 | 098123-16 | 1 | SCREW | 4,57 Lei | |
| 75 | N447525 | 2 | BUSH | 7,37 Lei | |
| 76 | N447529 | 2 | CLAMP WASHER | 17,02 Lei | |
| 76 | N687254 | 2 | CLAMP WASHER | 20,4 Lei | |
| 77 | N447530 | 1 | O RING | 4,57 Lei | |
| 78 | 383246-01 | 1 | WASHER SPECIAL | 6,23 Lei | |
| 79 | 383286-00 | 1 | SCREW | 4,57 Lei | |
| 80 | 392284-00 | 1 | END CAP | 12,71 Lei | |
| 82 | 621087-00 | 1 | SPINDLE LOCK | 8,64 Lei | |
| 83 | 621088-00 | 1 | SPRING | 4,57 Lei | |
| 85 | N537857 | 4 | FOOT | 5,21 Lei | |
| 88 | 384612-00 | 2 | TORSION SPRING | 4,57 Lei | |
| 89 | 386540-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 90 | N579258 | 1 | CORDSET | 96,56 Lei | |
| 91 | 098197-09 | 2 | WASHER LOCK | 4,57 Lei | |
| 93 | N587633 | 1 | Capacitor. | 13,5 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei |
