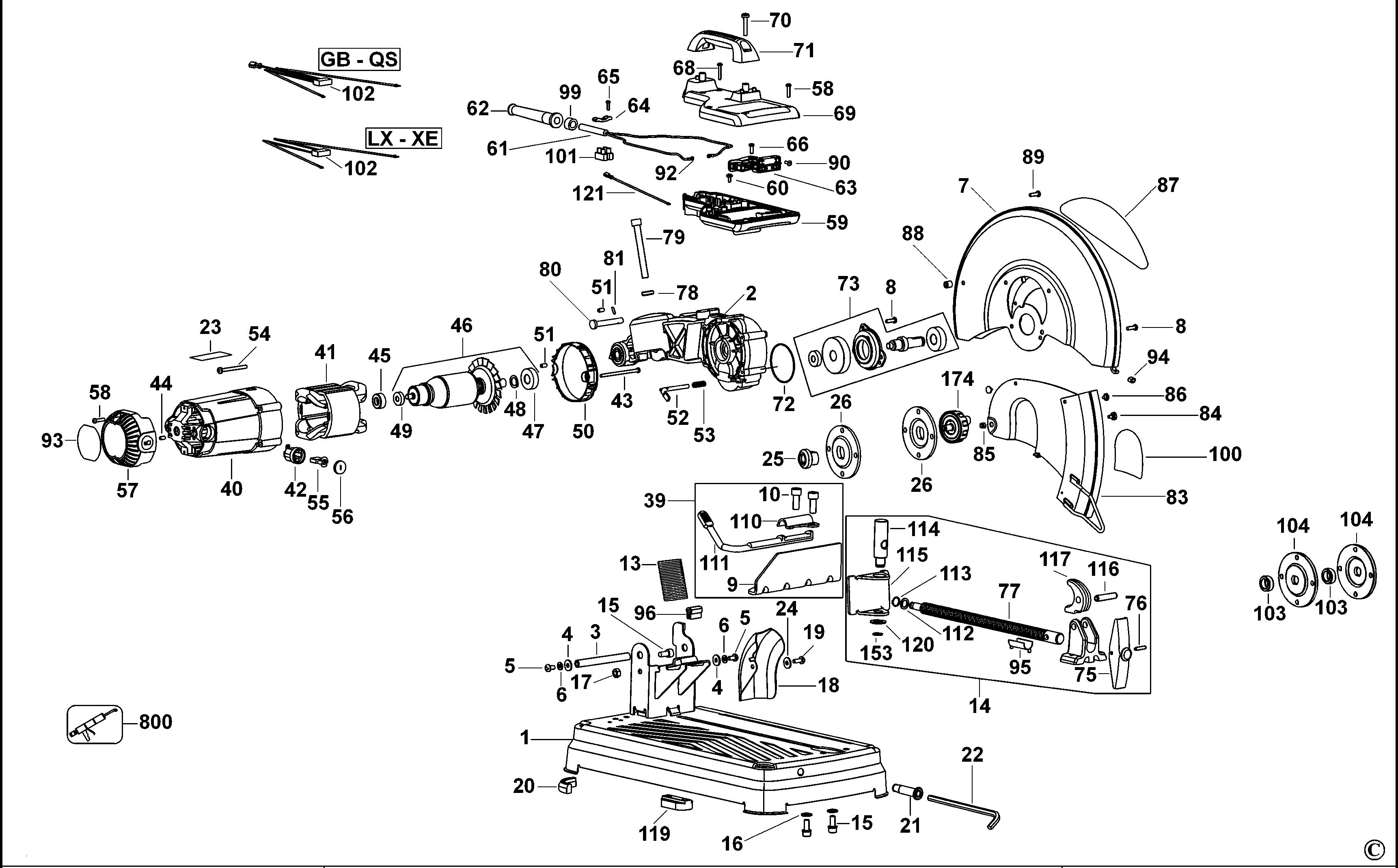

DEWALT CHOP SAW (Type 1)
SKU Produs: D28715 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 639944-01 | 1 | BASE | 318,26 Lei | |
| 2 | N105335 | 1 | ARM | 300,47 Lei | |
| 3 | 621101-00 | 1 | Pivot sheff | 17,02 Lei | |
| 4 | 330016-18 | 2 | WASHER | 4,57 Lei | |
| 5 | 153778-01 | 2 | Mach screw | 4,57 Lei | |
| 6 | 098197-10 | 2 | WASHER LOCK | 4,57 Lei | |
| 7 | 639967-00 | 1 | GUARD UPPER | 161,6 Lei | |
| 8 | 330045-15 | 4 | Screw Metal | 4,57 Lei | |
| 9 | 382677-00 | 1 | SA Fence | 57,81 Lei | |
| 10 | 383450-00 | 2 | SCREW | 4,57 Lei | |
| 13 | 387282-00 | 1 | Compr spring | 25,54 Lei | |
| 14 | N510986 | 1 | VICE JAW | 225,26 Lei | |
| 15 | 098123-16 | 4 | SCREW | 4,57 Lei | |
| 16 | 098197-09 | 2 | WASHER LOCK | 4,57 Lei | |
| 17 | 330021-02 | 1 | Stop Nut M8 | 4,57 Lei | |
| 18 | 648524-00 | 1 | Spark Deflector | 21,85 Lei | |
| 19 | 330045-64 | 1 | Screw Metal | 4,57 Lei | |
| 20 | 383243-00 | 4 | Rubber Foot for SA Base | 6,23 Lei | |
| 21 | 386765-00 | 1 | HOLDER TOOL | 7,37 Lei | |
| 22 | 384717-00 | 1 | Hex Wrench | 13,85 Lei | |
| 25 | 649352-00 | 2 | ADAPTER BLADE | 17,02 Lei | |
| 26 | 649353-00 | 2 | WASHER CLAMP | 30,87 Lei | |
| 39 | 384137-00 | 1 | SA FENCE-D28871 | 130,35 Lei | |
| 40 | 621067-00 | 1 | FIELDCASE | 57,81 Lei | |
| 42 | 622440-00 | 2 | BRUSH HOLDER | 17,02 Lei | |
| 43 | 330019-34 | 2 | SCREW,PLSTC THD FRM, M4.55X78 T20 | 4,57 Lei | |
| 44 | 330022-18 | 2 | SCREW | 5,21 Lei | |
| 45 | 660165-00 | 1 | RUBBER BOOT | 4,57 Lei | |
| 46 | 621069-01 | 1 | SA ARMATURE | 375,31 Lei | |
| 47 | 605040-27 | 1 | BALL BEARING | 13,85 Lei | |
| 48 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 49 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 50 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 51 | 623092-00 | 2 | PLUG | 4,57 Lei | |
| 52 | 621087-00 | 1 | SPINDLE LOCK | 8,64 Lei | |
| 53 | 621088-00 | 1 | SPRING | 4,57 Lei | |
| 54 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 55 | N088936 | 1 | BRUSH PAIR 115V / 230V | 30,87 Lei | |
| 56 | 622441-00 | 2 | BRUSH CAP | 7,37 Lei | |
| 57 | 621118-00 | 1 | END CAP | 19,95 Lei | |
| 58 | 330019-13 | 5 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 59 | 639958-00 | 1 | LOWER HANDLE | 41,93 Lei | |
| 60 | 330045-06 | 1 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 61 | 330120-27 | 1 | CORDSET (EURO) | 52,22 Lei | |
| 62 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 64 | 386540-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 65 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 66 | 330019-11 | 1 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 68 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 69 | 639963-00 | 1 | HANDLE, COVER HALF | 57,81 Lei | |
| 70 | 621082-00 | 1 | HANDLE, CARRY | 19,95 Lei | |
| 71 | 330019-22 | 2 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 72 | 099180-46 | 1 | O-RING | 4,57 Lei | |
| 73 | 621074-01 | 1 | GEAR CASE AND SPINDLE SA | 200,99 Lei | |
| 75 | 383252-00 | 1 | Vise Handle | 13,85 Lei | |
| 76 | 330036-08 | 1 | ROLL PIN | 4,57 Lei | |
| 77 | 395856-00 | 1 | THREADED ROD | 70,39 Lei | |
| 78 | 383246-01 | 1 | WASHER SPECIAL | 6,23 Lei | |
| 79 | 383286-00 | 1 | SCREW | 4,57 Lei | |
| 80 | 621104-00 | 1 | PIN | 10,29 Lei | |
| 81 | 330036-00 | 1 | ROLL PIN (DOWEL PIN) | 4,57 Lei | |
| 83 | 639971-01 | 1 | SA SPARK GUARD | 117,9 Lei | |
| 83 | N615902 | 1 | GUARD LOWER | 130,35 Lei | |
| 84 | 384844-00 | 1 | SPECIAL SCREW | 6,23 Lei | |
| 85 | 148641-00 | 1 | LOCK NUT | 4,57 Lei | |
| 86 | 383637-00 | 3 | BUMPER | 4,57 Lei | |
| 87 | 621093-00 | 1 | ID Label ,D28715 | 6,23 Lei | |
| 88 | 629619-00 | 1 | SPACER | 5,21 Lei | |
| 89 | 330045-16 | 1 | Screw Metal | 4,57 Lei | |
| 92 | 625933-00 | 3 | TERMINAL | 17,02 Lei | |
| 94 | 386526-00 | 1 | STOP RUBBER | 4,57 Lei | |
| 95 | 383451-00 | 1 | SADDLE | 4,57 Lei | |
| 96 | 642739-00 | 1 | STOP | 7,37 Lei | |
| 99 | 388414-01 | 1 | FERRITE BEAD | 10,29 Lei | |
| 100 | 639986-00 | 1 | LABEL | 4,57 Lei | |
| 101 | 393520-00 | 1 | BLOCK, TERMINAL | 19,95 Lei | |
| 102 | 650011-00 | 1 | CAPACITOR | 20,4 Lei | |
| 103 | 649352-00 | 2 | ADAPTER BLADE | 17,02 Lei | |
| 104 | 649353-00 | 2 | WASHER CLAMP | 30,87 Lei | |
| 110 | 391459-00 | 1 | PLATE LOCK | 25,54 Lei | |
| 111 | 382540-00 | 1 | LEVER CAM | 30,87 Lei | |
| 112 | 384365-00 | 1 | WASHER | 4,57 Lei | |
| 113 | 383169-00 | 1 | Rataining Ring | 4,57 Lei | |
| 114 | 603988-00 | 1 | PIN CS 870 | 21,85 Lei | |
| 115 | 607278-00 | 1 | Jaw vise | 25,54 Lei | |
| 116 | 386525-01 | 1 | Pin Dowel | 4,57 Lei | |
| 117 | 383828-00 | 1 | Lock Vise | 37,73 Lei | |
| 119 | 383254-00 | 1 | BLOCK, CLAMP | 25,54 Lei | |
| 120 | 607592-00 | 1 | WASHER | 4,57 Lei | |
| 153 | 398605-00 | 1 | Ring Retaining | 4,57 Lei | |
| 174 | 629984-00 | 1 | BLADE CLAMP | 68,7 Lei | |
| 174 | NA152204 | 1 | BLADE CLAMP | 96,56 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei |
