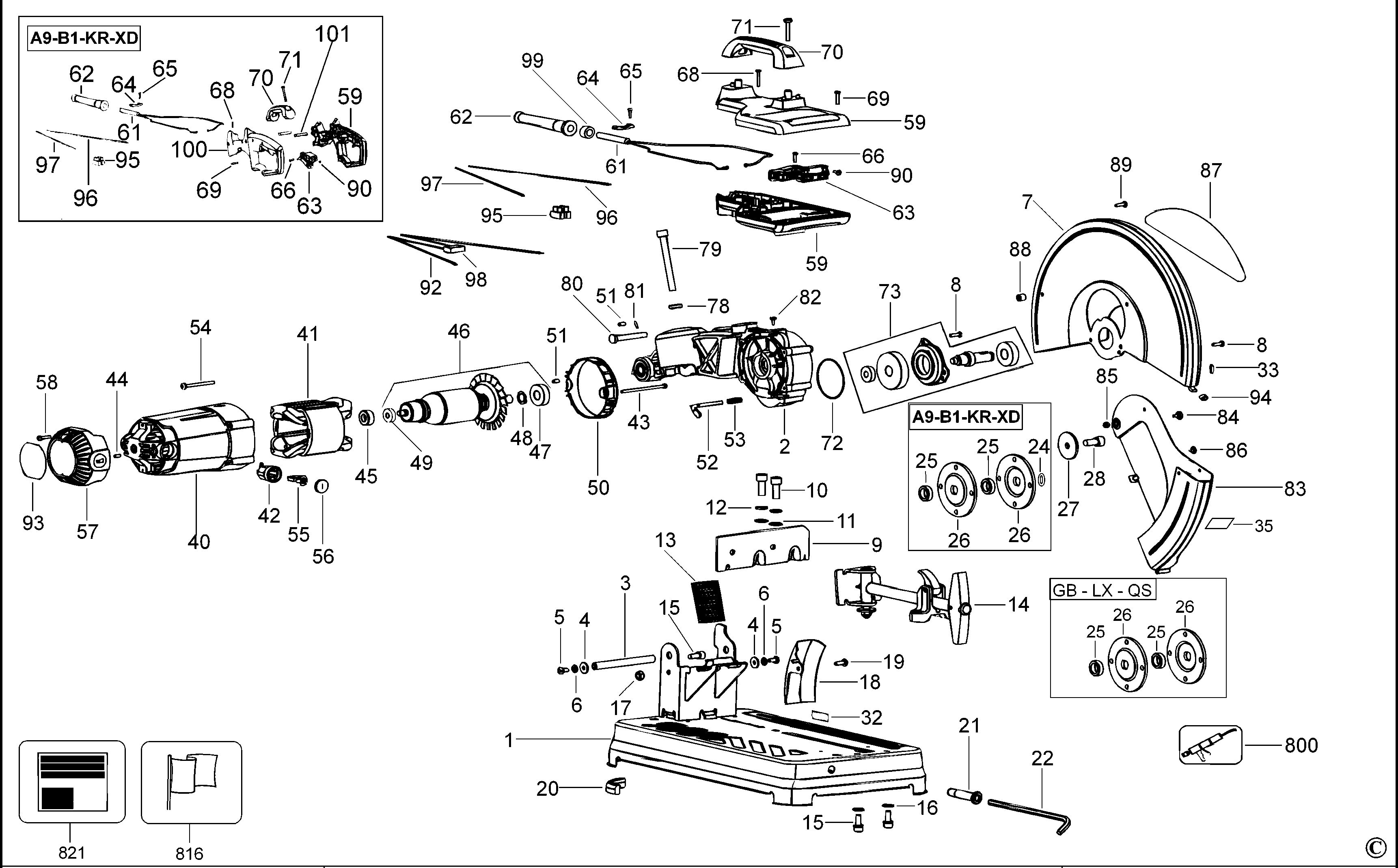

DEWALT CHOP SAW (Type 1)
SKU Produs: D28700 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N105335 | 1 | ARM | 300,47 Lei | |
| 3 | 621101-00 | 1 | Pivot sheff | 17,02 Lei | |
| 4 | 330016-18 | 2 | WASHER | 4,57 Lei | |
| 5 | 153778-01 | 2 | Mach screw | 4,57 Lei | |
| 6 | 098197-10 | 2 | WASHER LOCK | 4,57 Lei | |
| 8 | 330045-14 | 4 | SCREW M5X16 T25 | 4,57 Lei | |
| 10 | 383450-00 | 2 | SCREW | 4,57 Lei | |
| 11 | 330016-04 | 2 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 12 | 98197-07 | 2 | WASHER LOCK | 4,57 Lei | |
| 13 | 387282-00 | 1 | Compr spring | 25,54 Lei | |
| 16 | 098197-09 | 2 | WASHER LOCK | 4,57 Lei | |
| 17 | 330021-02 | 1 | Stop Nut M8 | 4,57 Lei | |
| 18 | 384159-00 | 1 | Spark Deflector | 13,5 Lei | |
| 19 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 21 | 386765-00 | 1 | HOLDER TOOL | 7,37 Lei | |
| 22 | 384717-00 | 1 | Hex Wrench | 13,85 Lei | |
| 25 | 621081-00 | 1 | ADAPTER, BLADE | 16,6 Lei | |
| 25 | 649352-00 | 2 | ADAPTER BLADE | 17,02 Lei | |
| 26 | 649353-00 | 2 | WASHER CLAMP | 30,87 Lei | |
| 28 | 383286-00 | 1 | SCREW | 4,57 Lei | |
| 40 | 621067-00 | 1 | FIELDCASE | 57,81 Lei | |
| 42 | 622440-00 | 2 | BRUSH HOLDER | 17,02 Lei | |
| 43 | 330019-34 | 2 | SCREW,PLSTC THD FRM, M4.55X78 T20 | 4,57 Lei | |
| 44 | 330022-16 | 2 | SCREW | 4,57 Lei | |
| 45 | 660165-00 | 1 | RUBBER BOOT | 4,57 Lei | |
| 46 | 621069-01 | 1 | SA ARMATURE | 375,31 Lei | |
| 47 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 48 | 398605-00 | 1 | Ring Retaining | 4,57 Lei | |
| 49 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 50 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 51 | 623092-00 | 1 | PLUG | 4,57 Lei | |
| 52 | 621087-00 | 1 | SPINDLE LOCK | 8,64 Lei | |
| 53 | 621088-00 | 1 | SPRING | 4,57 Lei | |
| 54 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 55 | N088936 | 1 | BRUSH PAIR 115V / 230V | 30,87 Lei | |
| 56 | 622441-00 | 2 | BRUSH CAP | 7,37 Lei | |
| 57 | 621118-00 | 1 | END CAP | 19,95 Lei | |
| 58 | 330019-13 | 2 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 61 | 330120-27 | 1 | CORDSET (EURO) | 52,22 Lei | |
| 62 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 63 | 626214-00 | 1 | SWITCH (W/O LOCK ON) | 88,55 Lei | |
| 64 | 003618-00 | 1 | CORD CLAMP | 8,64 Lei | |
| 65 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 66 | 330019-11 | 1 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 68 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 69 | 330019-32 | 8 | SCREW,PLASTITE | 4,57 Lei | |
| 70 | 621082-00 | 1 | HANDLE, CARRY | 19,95 Lei | |
| 71 | 330019-22 | 2 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 72 | 099180-46 | 1 | O-RING | 4,57 Lei | |
| 73 | 621074-01 | 1 | GEAR CASE AND SPINDLE SA | 200,99 Lei | |
| 80 | 621104-00 | 1 | PIN | 10,29 Lei | |
| 81 | 330036-00 | 1 | ROLL PIN (DOWEL PIN) | 4,57 Lei | |
| 82 | 385865-00 | 1 | SCREW | 4,7 Lei | |
| 84 | 384844-00 | 1 | SPECIAL SCREW | 6,23 Lei | |
| 85 | 330021-06 | 1 | STOP NUT | 4,57 Lei | |
| 86 | 383637-00 | 3 | BUMPER | 4,57 Lei | |
| 87 | 621093-00 | 1 | ID Label ,D28715 | 6,23 Lei | |
| 88 | 629619-00 | 1 | SPACER | 5,21 Lei | |
| 89 | 330045-16 | 1 | Screw Metal | 4,57 Lei | |
| 90 | 330019-11 | 1 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 92 | 625933-00 | 2 | TERMINAL | 17,02 Lei | |
| 94 | 386526-00 | 1 | STOP RUBBER | 4,57 Lei | |
| 95 | 393520-00 | 1 | BLOCK, TERMINAL | 19,95 Lei | |
| 98 | 628939-00 | 1 | CAPACITOR | 25,54 Lei | |
| 99 | 388414-01 | 1 | FERRITE BEAD | 10,29 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei |
