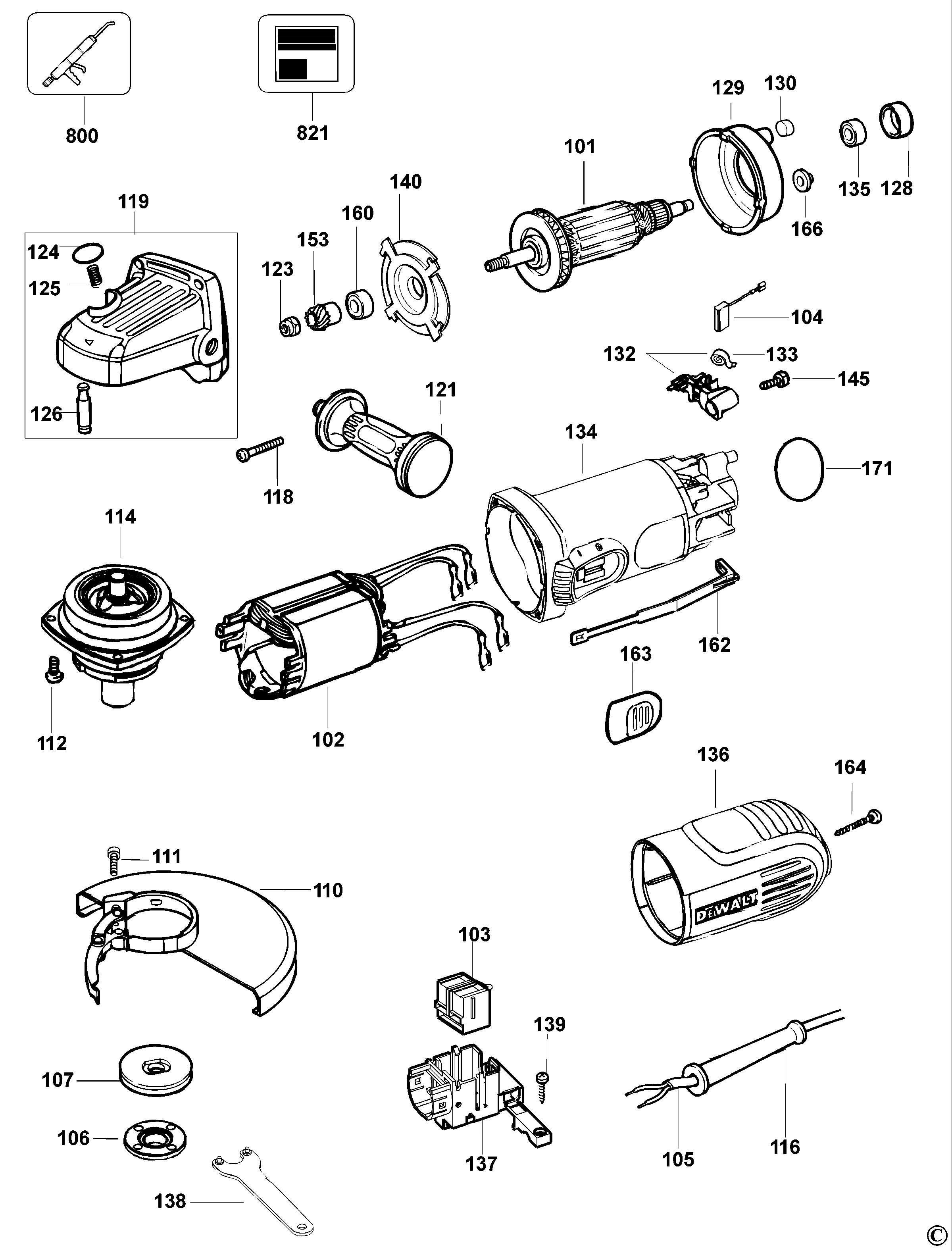

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: D28153 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 393921-07 | 1 | ARMATURE FOR DW824 | 185,8 Lei | |
| 101 | 393932-00 | 1 | SPINDLE SA | 30,1 Lei | |
| 102 | 605527-02 | 1 | FIELD 230V | 141,6 Lei | |
| 103 | 945614-00 | 1 | SWITCH | 38,6 Lei | |
| 104 | 949646-02 | 2 | BRUSH 230V CUT OFF | 25,54 Lei | |
| 105 | 562226-08 | 1 | CABLE | 52,22 Lei | |
| 106 | 622613-02 | 1 | OUTER FLANGE | 15,12 Lei | |
| 107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 110 | 397661-02 | 1 | GUARD SA | 52,22 Lei | |
| 111 | 631609-02 | 1 | SCREW | 4,57 Lei | |
| 112 | 330045-46 | 4 | SCREW | 4,57 Lei | |
| 114 | 604488-12 | 1 | SPINDLE AND GEAR SA | 133,4 Lei | |
| 116 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 118 | 562097-01 | 4 | SCREW | 4,57 Lei | |
| 121 | 614796-00 | 1 | SIDE HANDLE | 52,22 Lei | |
| 123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,57 Lei | |
| 124 | 944575-00 | 1 | LOCK BUTTON | 4,57 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 126 | 944571-00 | 1 | LOCK PIN | 7,37 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 129 | 401623-00 | 1 | BAFFLE | 5,21 Lei | |
| 130 | 949638-01 | 2 | PLUG | 4,57 Lei | |
| 132 | 606574-00 | 2 | BRUSH HOLDER | 10,5 Lei | |
| 133 | 562204-00 | 2 | TORSION SPRING | 4,57 Lei | |
| 135 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 137 | 611540-00 | 1 | SUPPORT | 6,1 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 139 | 562097-05 | 1 | Screw DW201,171 | 4,57 Lei | |
| 140 | 401622-01 | 1 | Fan Flange | 7,37 Lei | |
| 145 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 153 | 945592-01 | 1 | PINION | 34,05 Lei | |
| 160 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 163 | 569624-01 | 1 | BUTTON | 5,21 Lei | |
| 164 | 562097-13 | 1 | SCREW | 4,57 Lei | |
| 166 | 398906-00 | 1 | SPACER INSULATING | 4,57 Lei | |
| 171 | 393799-00 | 1 | O RING | 4,57 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei | |
| 821 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,02 Lei |
