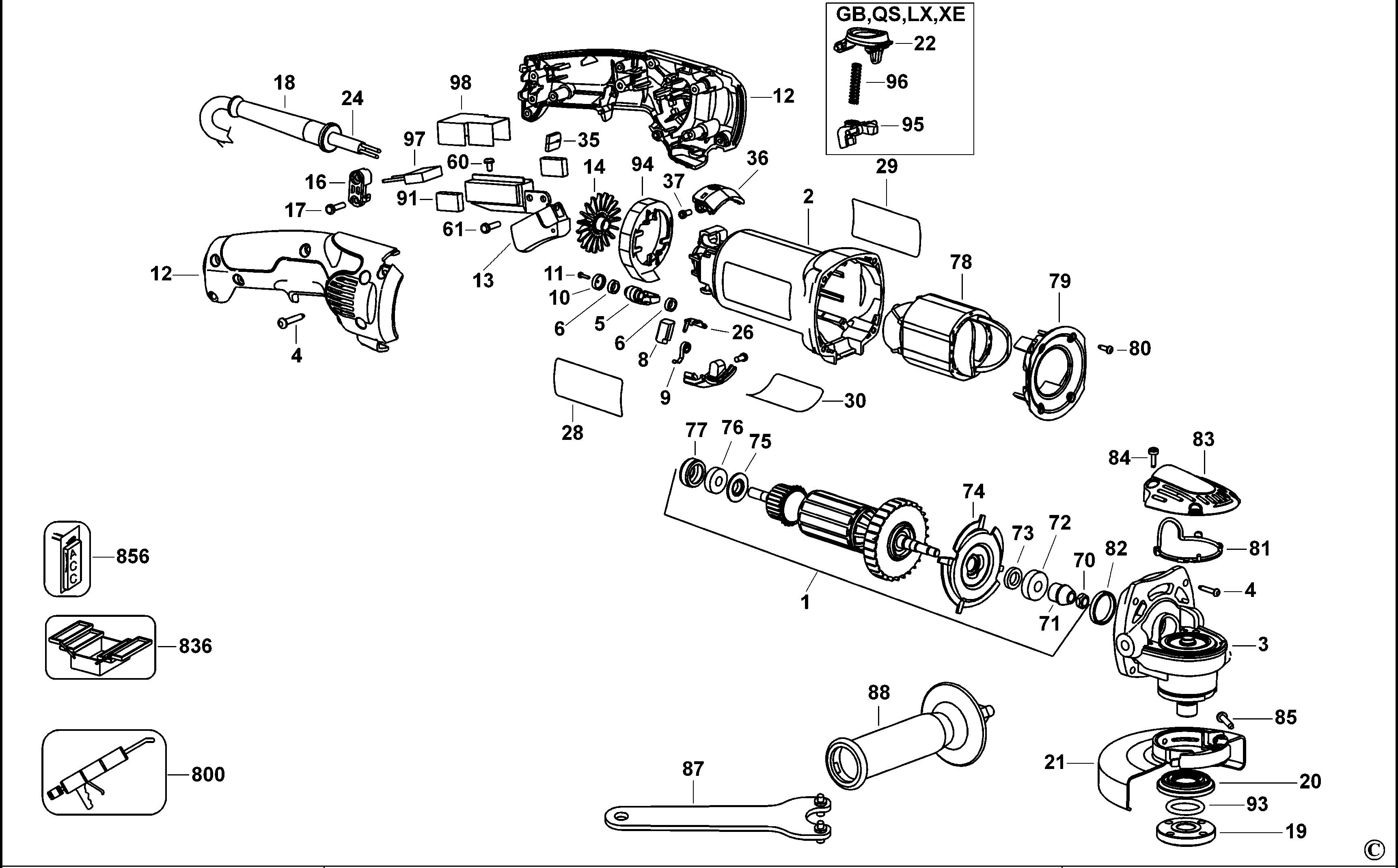

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: D28065 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N398001 | 1 | ARMATURE SA | 246 Lei | |
| 2 | 632180-03 | 1 | FIELDCASE | 24,9 Lei | |
| 3 | 629447-05S | 1 | GEARCASE SA | 230,5 Lei | |
| 4 | 330065-31 | 11 | SCREW | 4,57 Lei | |
| 5 | 648743-00 | 2 | ARM | 10,29 Lei | |
| 6 | 623592-00 | 4 | SEAL | 4,57 Lei | |
| 8 | N088933 | 1 | BRUSH PAIR 230V | 30,87 Lei | |
| 9 | 648613-00 | 2 | BRUSH SPRING | 4,57 Lei | |
| 10 | 623591-00 | 2 | CAP | 4,57 Lei | |
| 11 | 593685-00 | 2 | SCREW | 4,57 Lei | |
| 12 | 647727-01 | 1 | HANDLE SA | 51 Lei | |
| 13 | N470209 | 1 | SWITCH LOC-ON/LOCK-OFF DEFOND | 88,55 Lei | |
| 14 | N055787 | 1 | SEPARATOR | 5,21 Lei | |
| 16 | 643889-00 | 1 | CORD CLAMP | 4,5 Lei | |
| 17 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 18 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 19 | 622613-02 | 1 | OUTER FLANGE | 15,12 Lei | |
| 20 | 633257-00SV | 1 | INNER FLANGE SA (SV) | 10,29 Lei | |
| 21 | 661329-00 | 1 | GUARD SA | 37,73 Lei | |
| 22 | 647229-00SV | 1 | SA LOCK-OFF BUTTON | 6,4 Lei | |
| 24 | 562226-84 | 1 | CORDSET (EURO) | 96,56 Lei | |
| 26 | 623593-00 | 2 | TERMINAL | 5,21 Lei | |
| 29 | 628885-00 | 1 | LABEL | 4,7 Lei | |
| 35 | 646012-00 | 1 | FELT SEAL | 4,5 Lei | |
| 36 | 646940-01 | 2 | BRUSH COVER | 4,5 Lei | |
| 37 | 648777-00 | 2 | SCREW | 4,57 Lei | |
| 60 | 387746-00 | 4 | Switch Screw | 4,57 Lei | |
| 61 | 330065-07 | 1 | SCREW | 4,57 Lei | |
| 70 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 71 | 629797-00 | 1 | PINION | 30,87 Lei | |
| 72 | 605040-05 | 1 | BEARING, BALL CW/MFG | 7,37 Lei | |
| 73 | 623617-00 | 1 | FELT SEAL | 4,57 Lei | |
| 74 | N422242 | 1 | RETAINER | 7,5 Lei | |
| 75 | 623613-00 | 1 | WASHER | 4,7 Lei | |
| 76 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 77 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 78 | 627125-05 | 1 | FIELD 230V | 148,5 Lei | |
| 79 | 623572-00 | 1 | BAFFLE FAN | 7,37 Lei | |
| 80 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 81 | 632513-00 | 1 | GASKET | 7,37 Lei | |
| 82 | 611492-00 | 1 | SLEEVE, RUBBER | 4,57 Lei | |
| 83 | 627313-00 | 1 | GEARCASE COVER | 19,95 Lei | |
| 84 | 385676-01 | 4 | SCREW | 4,57 Lei | |
| 85 | 631609-02 | 1 | SCREW | 4,57 Lei | |
| 87 | N079326 | 1 | WRENCH PIN | 15,5 Lei | |
| 88 | 614796-00 | 1 | SIDE HANDLE | 52,22 Lei | |
| 91 | 620051-00 | 2 | Pad DW831 | 4,57 Lei | |
| 93 | 633043-00 | 1 | O RING | 5,21 Lei | |
| 94 | 640723-00 | 1 | BAFFLE | 4,7 Lei | |
| 97 | N435948 | 1 | CAPACITOR | 7,2 Lei | |
| 98 | 650937-00 | 1 | INSULATION,PAPER | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 836 | 233804-36 | 1 | DRIVER T6 | 173,3 Lei |
