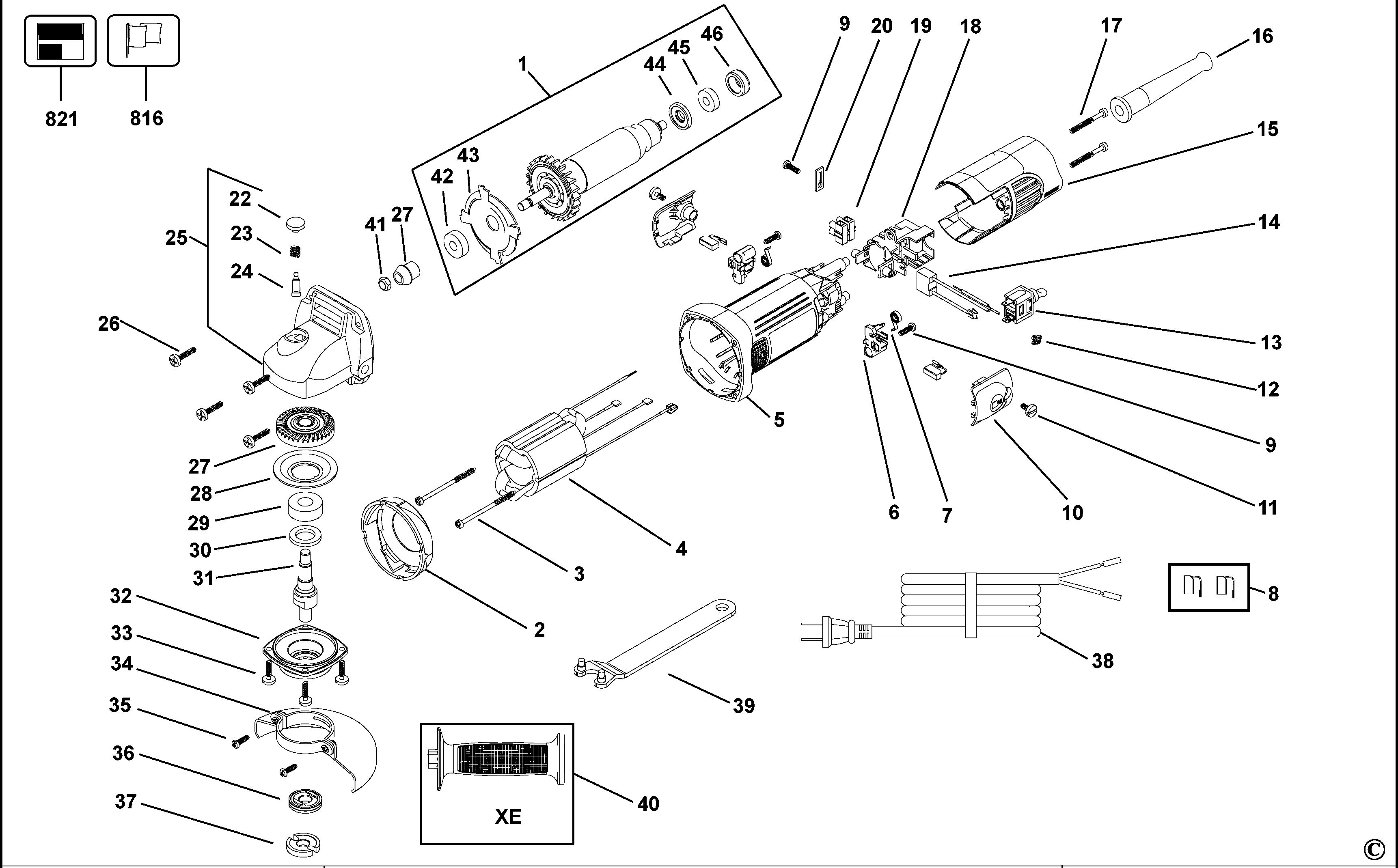

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: D28000 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 330065-29 | 2 | Screw Plstc THD Form M3.5X65 T15 | 4,57 Lei | |
| 9 | 562097-00 | 3 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 16 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 19 | 320078-00 | 1 | BLOCK TERMINAL | 4,57 Lei | |
| 20 | 619328-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 22 | 944575-00 | 1 | LOCK BUTTON | 4,57 Lei | |
| 23 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 24 | 944571-00 | 1 | LOCK PIN | 7,37 Lei | |
| 25 | 562304-01SV | 1 | GEARCASE SA | 59,2 Lei | |
| 26 | 562097-01 | 4 | SCREW | 4,57 Lei | |
| 27 | 661243-00 | 1 | GEAR AND PINION | 56,4 Lei | |
| 27 | N490505 | 1 | GEAR AND PINION | 88,55 Lei | |
| 29 | 605040-22 | 1 | Bearing DW801 | 17,02 Lei | |
| 30 | 641893-00 | 1 | Seal Felt washer DW801 | 4,57 Lei | |
| 33 | 562097-01 | 4 | SCREW | 4,57 Lei | |
| 39 | 401253-00 | 1 | WRENCH PIN | 10,29 Lei | |
| 41 | 945292-00 | 1 | Nut (Pinion fixing) | 4,57 Lei | |
| 42 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 45 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 46 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei |
