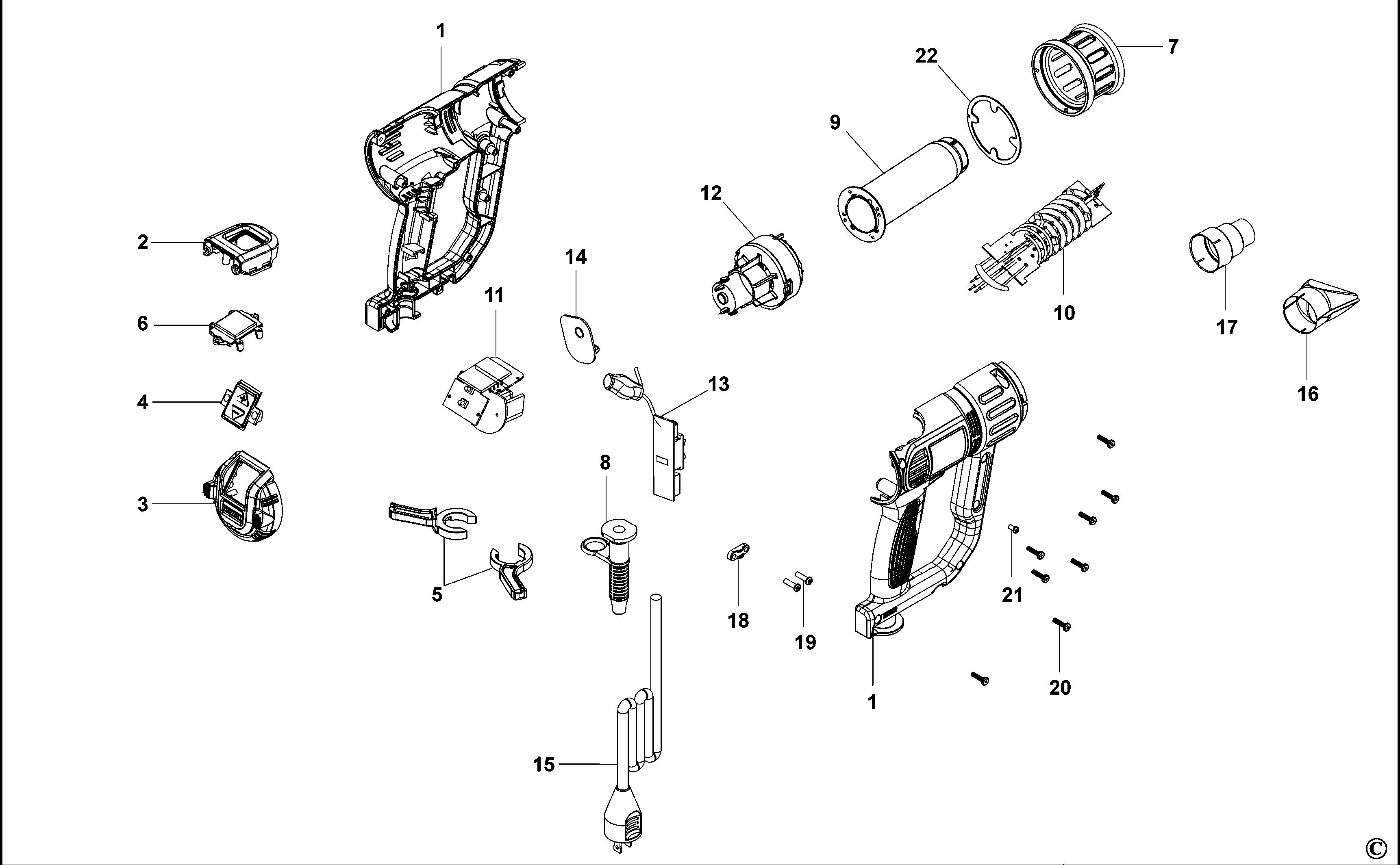

DEWALT HEATGUN (Type 1)
SKU Produs: D26414 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N035367 | 1 | CLAMSHELL SET | 169,36 Lei | |
| 2 | N035370 | 1 | COVER-TOP | 21,85 Lei | |
| 3 | N035372 | 1 | COVER REAR | 13,85 Lei | |
| 4 | N035378 | 1 | BUTTON | 10,29 Lei | |
| 5 | N021193 | 1 | LEG SA | 17,02 Lei | |
| 6 | N035379 | 1 | COVER | 21,85 Lei | |
| 7 | N020498 | 1 | NOSE RING | 25,54 Lei | |
| 8 | N020499 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 9 | N021195 | 1 | TUBE | 96,56 Lei | |
| 10 | N188067 | 1 | HEATING ELEMENT | 120,82 Lei | |
| 11 | N035385 | 1 | PCB CONTROLLER | 331,47 Lei | |
| 12 | N020513 | 1 | MOTOR AND FAN | 120,82 Lei | |
| 13 | N188064 | 1 | SWITCH AND PCB SA | 41,93 Lei | |
| 14 | N020508 | 1 | PCB SA | 41,93 Lei | |
| 15 | N020520 | 1 | CORDSET for QS and B1 | 130,35 Lei | |
| 16 | 661251-00 | 1 | NOZZLE TRIANGULAR | 25,54 Lei | |
| 17 | 661252-00 | 1 | NOZZLE | 21,85 Lei | |
| 18 | N035831 | 1 | CORD CLAMP | 4,57 Lei | |
| 19 | N035834 | 2 | SCREW | 5,21 Lei | |
| 20 | N035833 | 8 | SCREW | 4,57 Lei | |
| 22 | N048129 | 1 | TUBE SUPPORT | 7,37 Lei |
