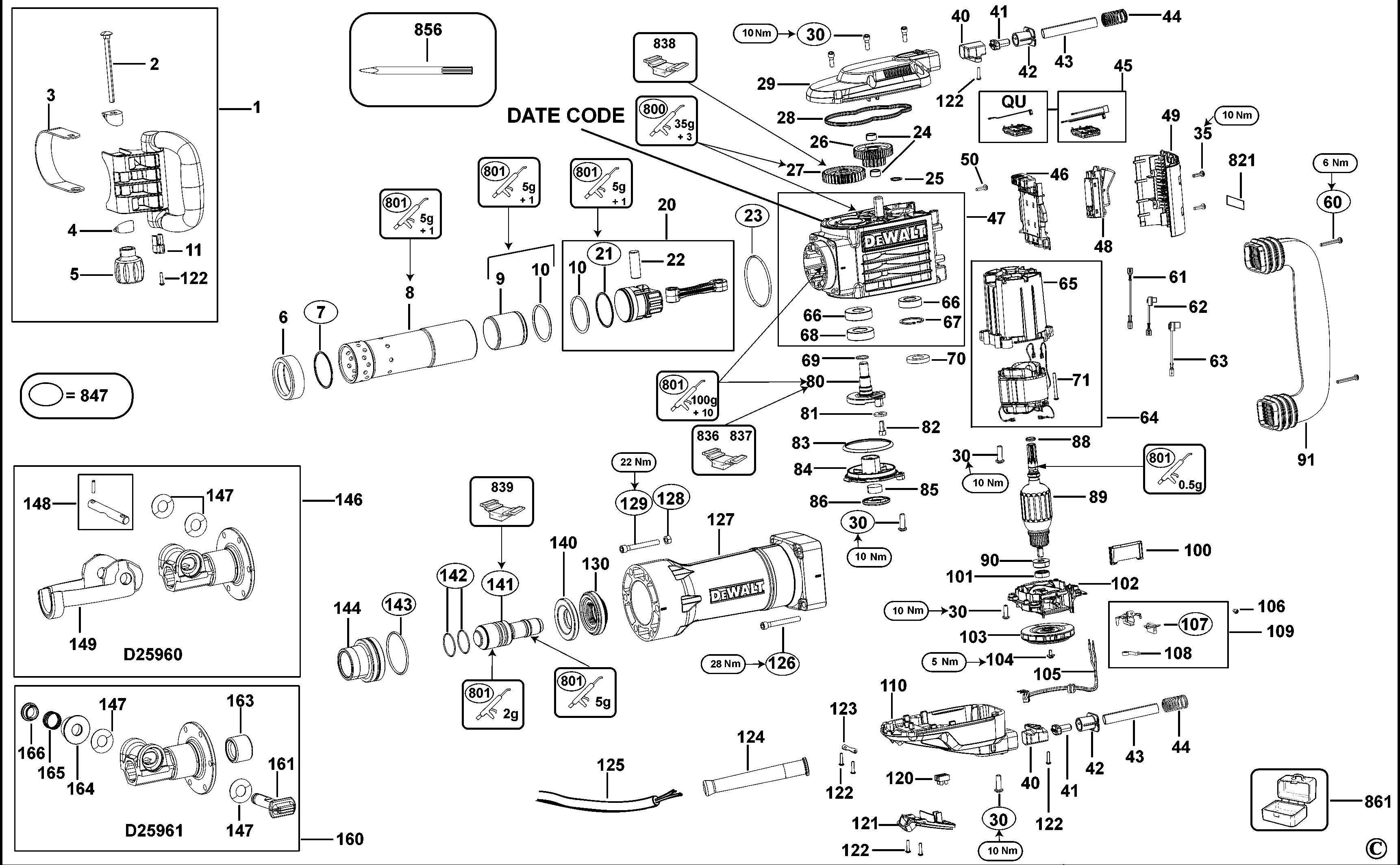

DEWALT DEMOLITION HAMMER (Type 1)
SKU Produs: D25961K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N087487 | 1 | SA SIDE HANDLE HAMMER 16KG,SERVICE | 399,45 Lei | |
| 2 | N044219 | 1 | SCREW M8X120 -DIN603 | 15,12 Lei | |
| 3 | N044098 | 1 | Handle Side Strap Clamp D25960 | 70,39 Lei | |
| 4 | N044099 | 2 | HANDLE SIDE CLAMPING PIECE D25960 | 10,29 Lei | |
| 5 | N086186 | 1 | SA HANDLE SIDE KNOB D25960 | 25,54 Lei | |
| 6 | N087359 | 1 | RING CYLINDER 16KG HAMMER,SERVICE | 70,39 Lei | |
| 7 | N069978 | 1 | O-RING 52x3,5 NBR D25960 | 17,02 Lei | |
| 8 | N087327 | 1 | CYLINDER 16KG HAMMER,SERVICE | 472,24 Lei | |
| 9 | N087416 | 1 | RAM 16KG,SERVICE | 331,47 Lei | |
| 10 | N088404 | 1 | KIT RING PISTON 16KG,SERVICE | 145,09 Lei | |
| 11 | N044100 | 2 | HANDLE SIDE CAP D25960 | 10,29 Lei | |
| 20 | N161207 | 1 | SA PISTON 16KG,SERVICE | 776,53 Lei | |
| 20 | N164668 | 1 | SA PISTON 16KG,SERVICE | 331,47 Lei | |
| 21 | N056464 | 1 | O-RING 39x3 FKM D25960 | 15,12 Lei | |
| 22 | N087484 | 1 | BOLT PISTON 16KG,SERVICE | 80,04 Lei | |
| 23 | N050696 | 1 | O-RING 87x3 NBR | 7,37 Lei | |
| 24 | 494549-00 | 1 | BEARING, NEEDLE D25980,SERVICE | 145,09 Lei | |
| 25 | N071623 | 1 | CIRCLIP 17 DIN471 | 4,57 Lei | |
| 26 | 494573-00 | 1 | SA DOUBLE GEAR D25980,SERVICE | 361,33 Lei | |
| 27 | N087483 | 1 | GEAR Z33 16KG,SERVICE | 252,58 Lei | |
| 28 | N043534 | 1 | SEAL | 30,87 Lei | |
| 29 | N026222 | 1 | COVER GEAR D25960 | 106,98 Lei | |
| 29 | N026244 | 1 | NAMEPLATE, DW268-XE05 | 4,5 Lei | |
| 29 | N026245 | 1 | NAMEPLATE, DW269-XE05 (PRINT) | 4,5 Lei | |
| 30 | 493968-00 | 18 | SCREW | 4,57 Lei | |
| 35 | 330045-23 | 4 | SCREW | 4,57 Lei | |
| 40 | N043530 | 2 | Bush Sliding - limit stop D25960 | 13,85 Lei | |
| 41 | N043533 | 2 | LIMIT STOP D25960 | 52,22 Lei | |
| 42 | N043529 | 2 | BUSH, SLIDING - tube D25960 | 15,12 Lei | |
| 43 | N043532 | 2 | SLIDING TUBE D25960 | 21,85 Lei | |
| 44 | N069674 | 2 | SPRING BACK HANDLE D25960 | 6,23 Lei | |
| 45 | N108386 | 1 | CONFIGURED MODULE 230V.16KG ,SERVICE | 264,01 Lei | |
| 46 | N043527 | 1 | SWITCH PLATE D25960 | 30,87 Lei | |
| 47 | N088431 | 1 | S/A MAIN HOUSING 16KG PACKED,SERVICE | 1262,37 Lei | |
| 48 | N485854 | 1 | DEFOND SWITCH CGK-2116-029 | 96,56 Lei | |
| 49 | N031170 | 1 | COVER BACK D25960 | 37,73 Lei | |
| 50 | 326619-00 | 1 | SCREW, M4 X 8 DIN6900 | 4,57 Lei | |
| 60 | 1005672-01 | 2 | SCREW M5X 105 | 15,12 Lei | |
| 61 | N106177 | 1 | SA 16KG SWITCH CONNECTION WIRE | 13,85 Lei | |
| 62 | N103817 | 1 | SA 16KG GACC POWER 4,8 | 13,85 Lei | |
| 63 | N106096 | 1 | SA 16KG GACC POWER 6,3 | 15,12 Lei | |
| 64 | N087485 | 1 | S/A FIELD 230V+MOTORPOT D25960,SERVICE | 613,14 Lei | |
| 65 | N020776 | 1 | MOTORPOT D25960 | 80,04 Lei | |
| 66 | 330003-69 | 2 | BEARING, BALL 17x40x12-6203T1XDDW1C3E | 34,05 Lei | |
| 67 | 616726-00 | 1 | CIRCLIPD.40 7437 | 4,57 Lei | |
| 68 | 577745-03 | 1 | BEARING 6205DDUC3E D EA5S | 30,87 Lei | |
| 69 | N049232 | 1 | O-RING 20x1,5 NBR-70 D25960 | 19,95 Lei | |
| 70 | N050316 | 1 | FELT | 4,57 Lei | |
| 80 | N161207 | 1 | SA PISTON 16KG,SERVICE | 776,53 Lei | |
| 80 | N164667 | 1 | SHAFT CRANK 16KG,SERVICE | 412,91 Lei | |
| 81 | 330016-21 | 1 | WASHER CON ROD D.8XD.25X3 | 4,57 Lei | |
| 82 | 494356-00 | 1 | SCREW M8x1x20 8.8 DIN912 | 7,37 Lei | |
| 83 | N075322 | 1 | O-RING 85,32x3,53 | 8,64 Lei | |
| 84 | N030647 | 1 | COVER CRANKSHAFT D25960 | 37,73 Lei | |
| 85 | 487229-00 | 1 | FELT | 5,21 Lei | |
| 86 | 487438-00 | 1 | CAP, SNAP | 10,29 Lei | |
| 88 | 577746-01 | 1 | RING EXPANSION D25980 | 7,37 Lei | |
| 89 | N087478 | 1 | SA ARMATURE 230V 16KG,SERVICE | 497,78 Lei | |
| 90 | 577745-00 | 1 | BEARING 6000 T1XDDW | 25,54 Lei | |
| 91 | N031103 | 1 | HANDLE D25960 | 145,09 Lei | |
| 100 | N038446 | 2 | BRUSH COVER D25960 | 13,85 Lei | |
| 101 | N167638 | 1 | RING, ISOLATION 16KG | 30,87 Lei | |
| 102 | N020777 | 1 | RING BRUSH D25960 | 52,22 Lei | |
| 103 | 586611-00 | 1 | SA FAN, 7-9KG | 41,93 Lei | |
| 104 | 324119-02 | 1 | SCREW, M5 X 12 | 6,23 Lei | |
| 105 | N062068-00 | 1 | CONNECTION CABLE 230V., D25960 | 30,87 Lei | |
| 106 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 107 | 1005550-02 | 1 | BRUSH PAIR 230V CUT OFF | 88,55 Lei | |
| 108 | 487377-00 | 2 | SPRING, BRUSH | 10,5 Lei | |
| 109 | N184445 | 1 | HOLDER+ BRUSH,CUTOFF 230V,SERVICE | 181,55 Lei | |
| 110 | N026214-00 | 1 | MOTOR COVER | 96,56 Lei | |
| 120 | 1006389-00 | 1 | TERMINAL BLOCK | 10,29 Lei | |
| 121 | N030582 | 1 | COVER MOTOR CORDSET CAP D25960 | 30,87 Lei | |
| 122 | 330065-08 | 10 | SCREW M4X18 | 4,57 Lei | |
| 123 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 124 | 947964-01 | 1 | PROTECTOR ,CORD 11,6 | 15,12 Lei | |
| 125 | 582319-46 | 1 | CORD SET H07 QS 16KG | 120,82 Lei | |
| 126 | 949886-40 | 4 | SCREW | 13,85 Lei | |
| 127 | N161206 | 1 | FRONT HOUSING 16KG HAMMER,SERVICE | 750,36 Lei | |
| 128 | N074448 | 6 | NUT | 4,57 Lei | |
| 129 | 949886-39 | 6 | SCREW | 7,37 Lei | |
| 130 | N100041 | 1 | DAMPER CATCHER | 34,05 Lei | |
| 140 | N087384 | 1 | WASHER REBOUND 16KG,SERVICE | 195,02 Lei | |
| 141 | N092853 | 1 | BEATPIECE 16KG 30MM. SERVICE | 472,24 Lei | |
| 142 | 487213-00 | 2 | "O RING, 30X5 INCH D25901K" | 19,95 Lei | |
| 143 | N069976 | 1 | O-RING 62x3 NBR D25960 | 4,57 Lei | |
| 147 | N098357 | 2 | DAMPER RETAINER 16KG | 13,85 Lei | |
| 160 | N142418 | 1 | SA TOOLHOLDER+GUIDE BEAT.D25961K,SERVIC | 2166,84 Lei | |
| 161 | N361859 | 1 | KIT BOLT,RETAINER SERVICE D25961 | 225,26 Lei | |
| 163 | N028245 | 1 | RING | 80,04 Lei | |
| 164 | N028182 | 1 | BUSH | 145,09 Lei | |
| 165 | N069982 | 1 | SPRING PRESSURE D25960 | 8,64 Lei | |
| 166 | N028181 | 1 | BUSH | 52,22 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 821 | N416371 | 1 | RATING PLATE | 30,87 Lei | |
| 836 | 1003944-99 | 1 | SERVICE TOOL | 394,87 Lei | |
| 837 | 1003945-99 | 1 | SERVICE TOOL | 73,31 Lei | |
| 838 | 1003946-98 | 1 | SERVICE TOOL | 87,79 Lei | |
| 839 | 1003947-99 | 1 | SERVICE TOOL | 165,04 Lei | |
| 847 | N127074 | 1 | SERVICE KIT 230V. D25961 | 1565,13 Lei | |
| 856 | N074468 | 1 | CHISEL HEX.30 16KG HAMMER | 252,58 Lei | |
| 861 | N074467 | 1 | KITBOX 16Kg HAMMER | 889,22 Lei |
