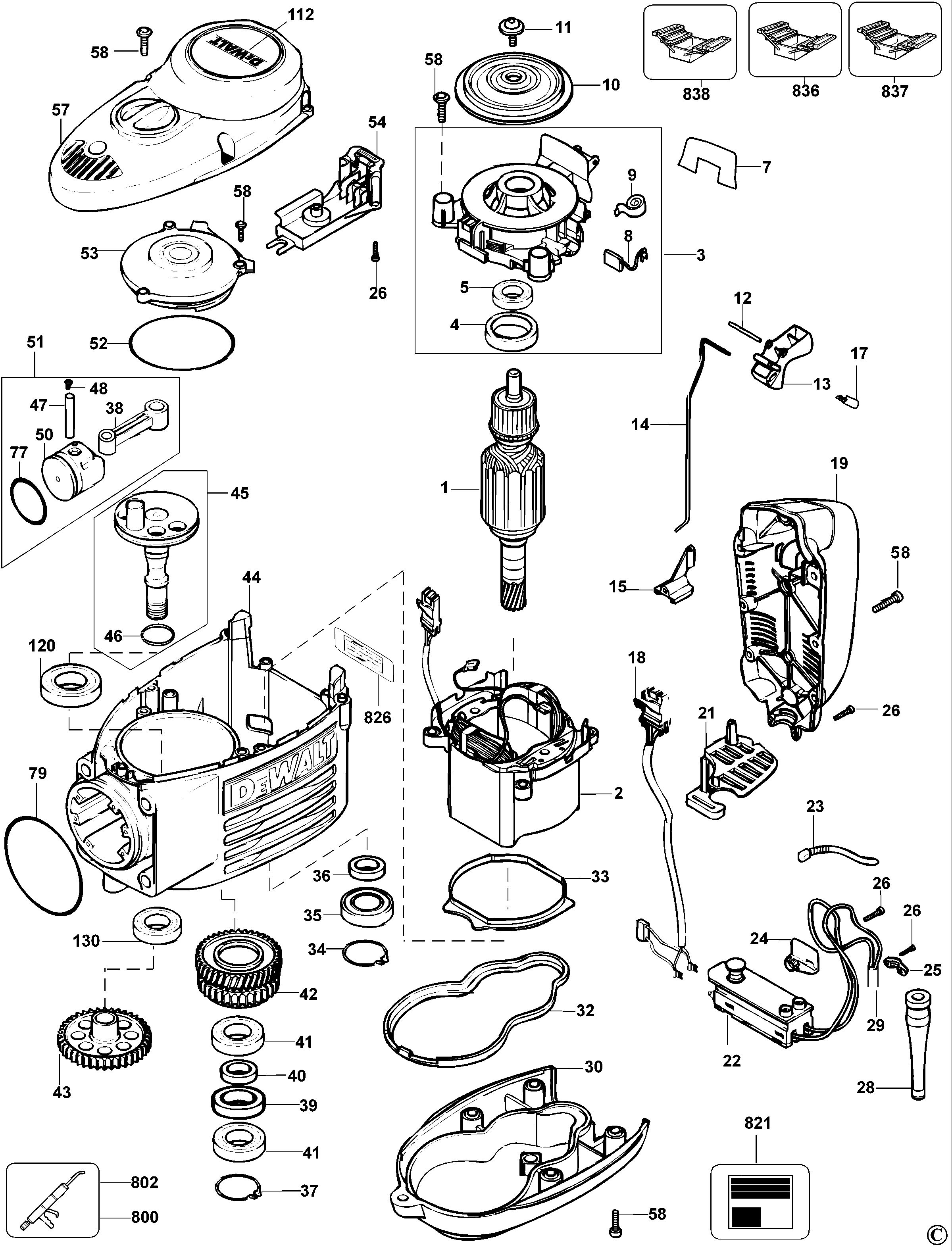

DEWALT DEMOLITION HAMMER (Type 2)
SKU Produs: D25941K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 590191-00 | 1 | RING, INSULAT | 6,23 Lei | |
| 5 | 577745-00 | 1 | BEARING 6000 T1XDDW | 25,54 Lei | |
| 7 | 1007800-00 | 1 | SEAL, AIR | 7,37 Lei | |
| 9 | 487377-00 | 2 | SPRING, BRUSH | 10,5 Lei | |
| 10 | 487252-00 | 1 | SA FAN | 51 Lei | |
| 11 | 324119-02 | 1 | SCREW, M5 X 12 | 6,23 Lei | |
| 12 | 377374 | 1 | NEEDLE ROLLER | 4,57 Lei | |
| 13 | 487276-00 | 1 | TRIGGER | 10,29 Lei | |
| 14 | N893314 | 1 | ROD | 21,85 Lei | |
| 15 | 487286-00 | 1 | ROD, ADAPTER | 8,64 Lei | |
| 17 | 326467-00 | 2 | DETENT | 4,57 Lei | |
| 21 | 487388-00 | 1 | COVER, WIRE | 10,29 Lei | |
| 22 | N485853 | 1 | DEFOND SWITCH CGK-2116-027 | 96,56 Lei | |
| 23 | 579093-01 | 1 | CABLE TIE | 4,57 Lei | |
| 24 | 487378-00 | 1 | BRACKET, SWITCH | 7,37 Lei | |
| 25 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 26 | 330065-08 | 7 | SCREW M4X18 | 4,57 Lei | |
| 28 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 32 | 487224-00 | 1 | SEAL, HOUSING | 19,95 Lei | |
| 33 | 576387-00 | 1 | SEAL, JAMPOT | 21,3 Lei | |
| 34 | 324821-04 | 1 | RING, SAFETY 35 | 6,23 Lei | |
| 35 | N570313 | 1 | BEARING | 19,95 Lei | |
| 36 | 487209-01 | 1 | SEAL, ARMATURE | 19,95 Lei | |
| 37 | 324821-03 | 1 | RING, SAFETY 32 | 4,57 Lei | |
| 38 | N533907 | 1 | ROD,CONNECTING | 34,05 Lei | |
| 39 | 578452-00 | 1 | WASHER, 21.8X5.2 | 13,85 Lei | |
| 40 | 578451-00 | 1 | WASHER, 15.2X5.2 | 10,29 Lei | |
| 41 | 605040-26 | 1 | BEARING, BALL CW MFG | 19,95 Lei | |
| 42 | 582108-00 | 1 | DOUBLE GEAR ( SERVICE ) | 289,04 Lei | |
| 43 | 582109-00 | 1 | GEAR 48, ( SERVICE ) | 145,09 Lei | |
| 44 | 582110-00 | 1 | SA GEARBOX ( SERVICE ) | 1158,31 Lei | |
| 45 | 582111-00 | 1 | SA CRANKSHAFT ( SERVICE ) | 300,47 Lei | |
| 46 | 576451-00 | 1 | RING, CRANKSHAFT | 7,37 Lei | |
| 47 | 582387-00 | 1 | PIN, PISTON VDH ( SERVICE ) | 88,55 Lei | |
| 48 | 581656-00 | 2 | KNOB | 4,57 Lei | |
| 50 | 582112-00 | 1 | PISTON (SERVICE) | 52,22 Lei | |
| 51 | 582113-01 | 1 | SA PISTON SERVICE KIT VDH (SERVICE) | 157,92 Lei | |
| 52 | 323711-47 | 1 | O RING, 75.87 2.62 | 6,23 Lei | |
| 53 | N147098 | 1 | SA COVER UPGRADE PACKED (SERVICE) | 30,1 Lei | |
| 56 | 487284-00 | 1 | WASHER, CLAMP | 8,64 Lei | |
| 57 | 487386-00 | 1 | CAP, END MOTOR VDH | 57,81 Lei | |
| 58 | 324007-11 | 23 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 59 | 584240-01 | 1 | HANDLE,SIDE VDH SERVICE | 225,26 Lei | |
| 60 | 487343-00 | 1 | SCREW, M8X185 | 15,12 Lei | |
| 61 | 487277-00 | 1 | HANDLE, SIDE | 88,55 Lei | |
| 62 | 487278-00 | 2 | WASHER, LOCKING | 8,64 Lei | |
| 63 | 487393-00 | 1 | CLAMP, VDH | 80,04 Lei | |
| 64 | 487291-00 | 1 | SA KNOB | 25,54 Lei | |
| 65 | 949886-32 | 4 | SCREW, M8X30 | 5,21 Lei | |
| 66 | 487283-00 | 1 | HOUSING, FRONT VDH | 88,55 Lei | |
| 67 | 582369-00 | 1 | BEAT PIECE VDH ( SERVICE ) | 213,19 Lei | |
| 68 | 582388-00 | 1 | BUSH, BEATPIECE VDH ( SERVICE ) | 106,98 Lei | |
| 70 | 582114-00 | 1 | BUSH BEATPIECE (SERVICE) | 130,35 Lei | |
| 71 | 487298-00 | 2 | O RING 43X5.5 | 13,85 Lei | |
| 74 | 323711-46 | 1 | O RING, 55X2.5 | 5,21 Lei | |
| 75 | N075953 | 1 | CYLINDER VDH STEEL (SERVICE) | 375,31 Lei | |
| 76 | 582115-00 | 1 | RAM (SERVICE) | 213,19 Lei | |
| 77 | 487287-00 | 3 | O RING | 34,05 Lei | |
| 78 | 323711-56 | 1 | RING-O, 65X2.75 | 7,37 Lei | |
| 79 | 323711-55 | 3 | O-RING 70X2 | 5,21 Lei | |
| 80 | 582372-00 | 1 | FRONT HSG VDH, ( SERVICE ) | 451,79 Lei | |
| 81 | 487317-00 | 2 | SPRING, ANTIVIBRATION | 34,05 Lei | |
| 82 | 578784-00 | 2 | GUIDE, MASS VDH | 7,37 Lei | |
| 83 | 582373-00 | 1 | ANTIVIBRATION MASS( SERVICE ) | 96,56 Lei | |
| 84 | 487316-00 | 2 | GUIDE, SPRING VDH | 10,29 Lei | |
| 90 | 582374-00 | 1 | BEARING, BEATPIECE VDH ( SERVICE ) | 130,35 Lei | |
| 92 | N014013 | 1 | SEAL BEATPIECE, 20X30X7 | 41,93 Lei | |
| 94 | 582277-00 | 1 | SPINDLE SA ( SERVICE ) | 613,14 Lei | |
| 95 | 323711-41 | 1 | RING-O, 38X2.5 | 4,57 Lei | |
| 96 | 487302-00 | 1 | RUBBER, DAMPER | 10,29 Lei | |
| 97 | 582375-00 | 1 | FLANGE VDH ( SERVICE ) | 850,09 Lei | |
| 98 | 918825-02 | 9 | SCREW, CYL M6 40 / 12..9 | 4,57 Lei | |
| 99 | 487372-00 | 1 | SLEEVE, TURNING | 37,73 Lei | |
| 100 | 487366-00 | 1 | SA SLEEVE, LOCK | 451,79 Lei | |
| 102 | 487365-00 | 1 | BUSH, HEX | 13,85 Lei | |
| 103 | 487369-00 | 1 | PIECE, LOCKING | 240,38 Lei | |
| 105 | 582383-00 | 1 | BUSH, DAMPER VDH ( SERVICE ) | 200,99 Lei | |
| 106 | 487309-00 | 1 | SPRING, LOCK | 22,4 Lei | |
| 107 | N542444 | 1 | SA SLIDING SLEEVE (SERVICE) | 389,28 Lei | |
| 108 | 487373-00 | 1 | RUBBER, DAMPER | 16,6 Lei | |
| 109 | 487301-00 | 1 | WASHER, HEX | 34,05 Lei | |
| 110 | 579399-00 | 1 | CLIP | 7,37 Lei | |
| 111 | 487375-00 | 1 | SEAL, LIP | 70,39 Lei | |
| 112 | 487392-00 | 1 | LABEL, TOP | 7,37 Lei | |
| 120 | 330003-68 | 1 | BEARING, BALL | 57,81 Lei | |
| 130 | 330003-69 | 1 | BEARING, BALL 17x40x12-6203T1XDDW1C3E | 34,05 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 328771-07 | 1 | GREASE, THERMOPLEX 0.05KG TUBE | 30,87 Lei | |
| 802 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 821 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,02 Lei | |
| 826 | 487395-01 | 1 | NOISE LABEL 105dB | 5,21 Lei | |
| 836 | 559617-99 | 1 | SERVICE TOOL | 465 Lei | |
| 837 | 559618-99 | 1 | SERVICE TOOL | 710,72 Lei | |
| 838 | 559621-99 | 1 | SERVICE TOOL | 84,74 Lei | |
| 840 | 559629-99 | 1 | SERVICE TOOLING KIT | 847,68 Lei | |
| 845 | 559630-99 | 1 | SERVICE TOOLING KIT | 655,45 Lei | |
| 845 | 559634-99 | 1 | SERVICE TOOL | 210,8 Lei | |
| 846 | 559628-99 | 1 | SERVICE TOOL | 129,34 Lei |
