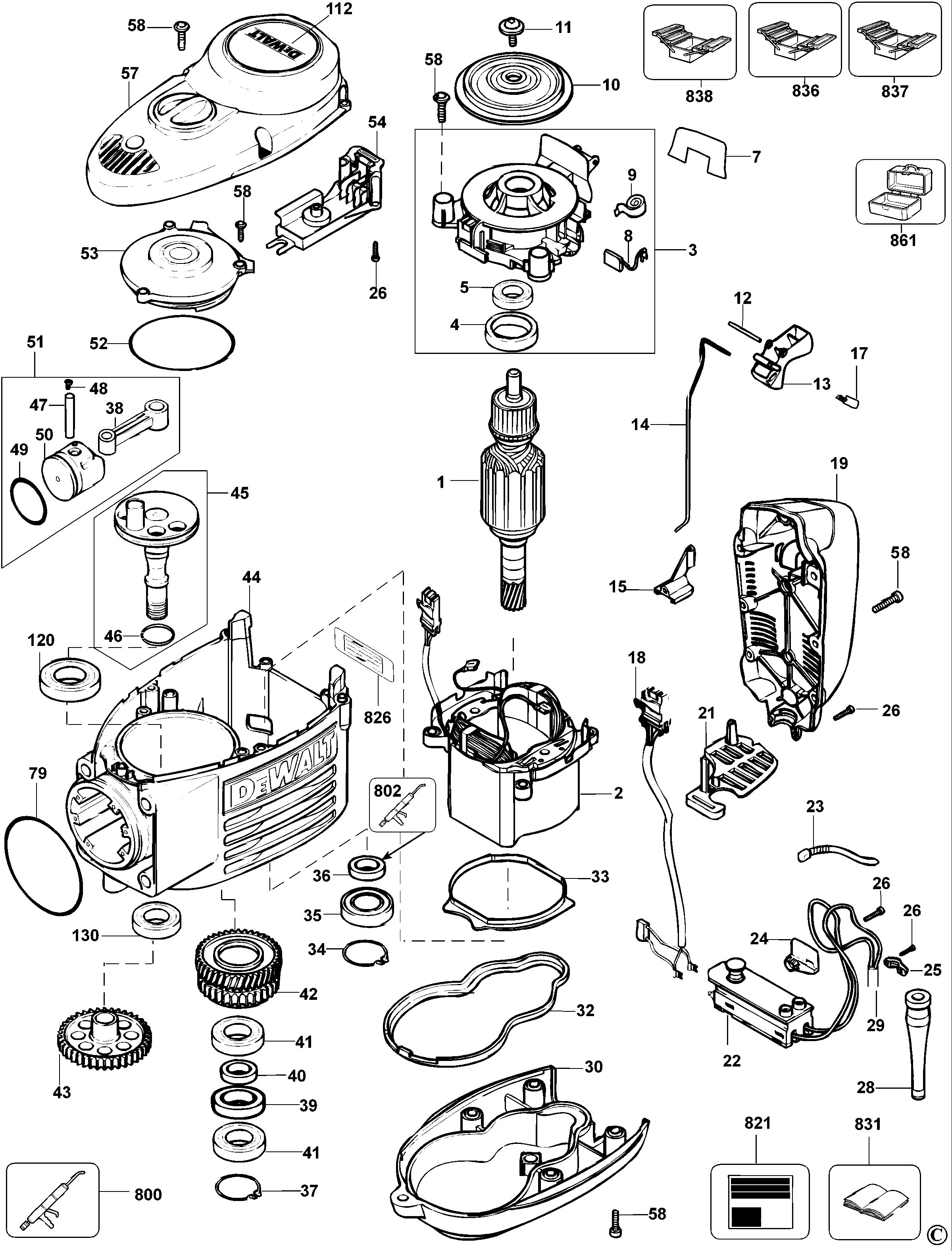

DEWALT DEMOLITION HAMMER (Type 2)
SKU Produs: D25900K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 579837-02 | 1 | SA ARMATURE DEMO HPP 230V (SERVICE) | 651,9 Lei | |
| 3 | 487266-02 | 1 | SA BRUSH HOLDER 230V | 190,3 Lei | |
| 4 | 590191-00 | 1 | RING, INSULAT | 6,23 Lei | |
| 5 | 577745-00 | 1 | BEARING 6000 T1XDDW | 25,54 Lei | |
| 7 | 1007800-00 | 1 | SEAL, AIR | 7,37 Lei | |
| 8 | 588698-00 | 1 | BRUSH PAIR 230V CUT OFF(phant) | 96,56 Lei | |
| 9 | 487377-00 | 2 | SPRING, BRUSH | 10,5 Lei | |
| 10 | 487252-00 | 1 | SA FAN | 51 Lei | |
| 11 | 324119-02 | 1 | SCREW, M5 X 12 | 6,23 Lei | |
| 12 | 377374 | 1 | NEEDLE ROLLER | 4,57 Lei | |
| 13 | 487276-00 | 1 | TRIGGER | 10,29 Lei | |
| 14 | N893314 | 1 | ROD | 21,85 Lei | |
| 15 | 487286-00 | 1 | ROD, ADAPTER | 8,64 Lei | |
| 17 | 326467-00 | 2 | DETENT | 4,57 Lei | |
| 19 | 487275-00 | 1 | SA HANDLE OVERMOULD (MOULD) | 181,55 Lei | |
| 21 | 487388-00 | 1 | COVER, WIRE | 10,29 Lei | |
| 22 | N485853 | 1 | DEFOND SWITCH CGK-2116-027 | 96,56 Lei | |
| 23 | 579093-01 | 1 | CABLE TIE | 4,57 Lei | |
| 24 | 487378-00 | 1 | BRACKET, SWITCH | 7,37 Lei | |
| 25 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 26 | 330065-08 | 7 | SCREW M4X18 | 4,57 Lei | |
| 28 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 29 | 582319-00 | 1 | CORDSET,QS 4200 | 96,56 Lei | |
| 30 | 487271-00 | 1 | COVER, GEARCASE | 57,81 Lei | |
| 32 | 487224-00 | 1 | SEAL, HOUSING | 19,95 Lei | |
| 33 | 576387-00 | 1 | SEAL, JAMPOT | 21,3 Lei | |
| 34 | 324821-04 | 1 | RING, SAFETY 35 | 6,23 Lei | |
| 35 | N570313 | 1 | BEARING | 19,95 Lei | |
| 36 | 487209-01 | 1 | SEAL, ARMATURE | 19,95 Lei | |
| 37 | 324821-03 | 1 | RING, SAFETY 32 | 4,57 Lei | |
| 38 | N542565 | 1 | ROD,CONNECTING (SERVICE) | 41,93 Lei | |
| 39 | 578452-00 | 1 | WASHER, 21.8X5.2 | 13,85 Lei | |
| 40 | 578451-00 | 1 | WASHER, 15.2X5.2 | 10,29 Lei | |
| 41 | 605040-26 | 2 | BEARING, BALL CW MFG | 19,95 Lei | |
| 42 | 579782-00 | 1 | DOUBLE GEAR, ( SERVICE ) | 195,02 Lei | |
| 43 | 579783-00 | 1 | GEAR, 44 ( SERVICE ) | 213,19 Lei | |
| 44 | 579772-00 | 1 | SA GEARBOX ( SERVICE ) | 889,22 Lei | |
| 45 | 579839-00 | 1 | SA CRANKSHAFT ( SERVICE ) | 252,58 Lei | |
| 46 | 576451-00 | 1 | RING, CRANKSHAFT | 7,37 Lei | |
| 47 | 487208-00 | 1 | PIN | 12,71 Lei | |
| 48 | 581656-00 | 2 | KNOB | 4,57 Lei | |
| 49 | 487213-00 | 1 | "O RING, 30X5 INCH D25901K" | 19,95 Lei | |
| 50 | 579774-00 | 1 | PISTON (SERVICE) | 37,73 Lei | |
| 51 | 579779-01 | 1 | SA PISTON SERVICE KIT HDH (SERVICE) | 157,92 Lei | |
| 52 | 323711-47 | 1 | O RING, 75.87 2.62 | 6,23 Lei | |
| 53 | N147098 | 1 | SA COVER UPGRADE PACKED (SERVICE) | 30,1 Lei | |
| 56 | 487284-00 | 2 | WASHER, CLAMP | 8,64 Lei | |
| 58 | 324007-11 | 23 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 59 | 584240-00 | 1 | SA HANDLE, SIDE HDH ( SERVICE ) | 213,19 Lei | |
| 60 | 487343-00 | 1 | SCREW, M8X185 | 15,12 Lei | |
| 61 | 487277-00 | 1 | HANDLE, SIDE | 88,55 Lei | |
| 62 | 487278-00 | 2 | WASHER, LOCKING | 8,64 Lei | |
| 63 | 487281-00 | 1 | CLAMP | 34,05 Lei | |
| 64 | 487291-00 | 1 | SA KNOB | 25,54 Lei | |
| 65 | 949886-32 | 4 | SCREW, M8X30 | 5,21 Lei | |
| 66 | N718060 | 1 | COVER HOUSING | 52,22 Lei | |
| 67 | 579832-00 | 1 | BEAT PIECE ( SERVICE ) | 157,92 Lei | |
| 68 | 487270-00 | 1 | BUSH, DAMPER BEATPIECE | 30,87 Lei | |
| 70 | 579786-00 | 1 | GUIDA BEATPIECE POST. DEMO (SERVICE) | 130,35 Lei | |
| 71 | 487298-00 | 2 | O RING 43X5.5 | 13,85 Lei | |
| 73 | 487297-00 | 1 | O RING 38X5 | 25,54 Lei | |
| 74 | 323711-41 | 2 | RING-O, 38X2.5 | 4,57 Lei | |
| 75 | N075954 | 1 | CYLINDER HDH STEEL (SERVICE) | 276,84 Lei | |
| 76 | 579780-00 | 1 | RAM, ( SERVICE ) | 169,36 Lei | |
| 77 | 487296-00 | 1 | O RING, 33X3.5 | 19,95 Lei | |
| 78 | 579769-00 | 1 | HOUSING FRONT (SERVICE) | 181,55 Lei | |
| 79 | 323711-55 | 1 | O-RING 70X2 | 5,21 Lei | |
| 80 | 487293-00 | 1 | SPRING, GUIDE | 7,37 Lei | |
| 81 | 487247-00 | 2 | SPRING, ANTIVIBRATION | 19,95 Lei | |
| 82 | 576488-00 | 2 | GUIDE, MASS HDH | 10,29 Lei | |
| 83 | 579781-00 | 1 | ANTIVIBRATION MASS (SERVICE) | 213,19 Lei | |
| 86 | 576489-00 | 1 | GUIDE, SPRING HDH | 12,71 Lei | |
| 87 | 487238-01 | 1 | SEAL, LIP | 30,87 Lei | |
| 88 | 487205-00 | 1 | RING, SNAP 28X2.5 | 6,23 Lei | |
| 89 | 487241-00 | 1 | WASHER, SDS | 30,87 Lei | |
| 90 | 487244-00 | 1 | RING, RUBBER | 17,02 Lei | |
| 91 | 487236-00 | 1 | SLEEVE, SLIDING | 34,05 Lei | |
| 92 | 579784-00 | 1 | LOCKING BUSH, ( SERVICE ) | 70,39 Lei | |
| 93 | 487218-00 | 1 | SPRING, SDS | 4,57 Lei | |
| 94 | 487249-00 | 1 | BUSH, DAMPER, SDS | 34,05 Lei | |
| 95 | 489672-00 | 2 | PIECE, LOCKING | 37,73 Lei | |
| 96 | 487240-00 | 1 | BUSH, SDS | 7,37 Lei | |
| 97 | 487216-00 | 1 | SPRING, CONICAL | 4,57 Lei | |
| 98 | 487268-00 | 1 | GUIDE, SPRING, SDS | 10,29 Lei | |
| 99 | 487289-00 | 1 | SPRING, LOCK | 21,85 Lei | |
| 100 | N542567 | 1 | SA SLEEVE, LOCK (SERVICE) | 34,05 Lei | |
| 101 | 487237-00 | 1 | SLEEVE, TURNING | 25,54 Lei | |
| 102 | 918825-02 | 6 | SCREW, CYL M6 40 / 12..9 | 4,57 Lei | |
| 103 | 579778-00 | 1 | SDS FLANGE ( SERVICE ) | 331,47 Lei | |
| 104 | 323711-15 | 1 | O RING, 43 X 2.5 | 4,57 Lei | |
| 107 | 579773-00 | 1 | SA SPINDLE ( SERVICE ) | 422,5 Lei | |
| 108 | N014007 | 1 | SEAL BEATPIECE, 18X28X7 | 19,95 Lei | |
| 109 | 487287-00 | 1 | O RING | 34,05 Lei | |
| 110 | 1007543-00 | 1 | SEARING BEATPIECE (SERVICE) | 96,56 Lei | |
| 112 | 487392-00 | 1 | LABEL, TOP | 7,37 Lei | |
| 120 | 330003-68 | 1 | BEARING, BALL | 57,81 Lei | |
| 130 | 330003-69 | 1 | BEARING, BALL 17x40x12-6203T1XDDW1C3E | 34,05 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 328771-07 | 1 | GREASE, THERMOPLEX 0.05KG TUBE | 30,87 Lei | |
| 802 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 826 | 487395-01 | 1 | NOISE LABEL 105dB | 5,21 Lei | |
| 836 | 559617-99 | 1 | SERVICE TOOL | 465 Lei | |
| 837 | 559618-99 | 1 | SERVICE TOOL | 710,72 Lei | |
| 838 | 559621-99 | 1 | SERVICE TOOL | 84,74 Lei | |
| 840 | 559619-99 | 1 | SERVICE TOOL | 999,88 Lei | |
| 845 | 559620-99 | 1 | SERVICE TOOL | 510,11 Lei | |
| 861 | 487353-03 | 1 | KITBOX | 667,9 Lei |
