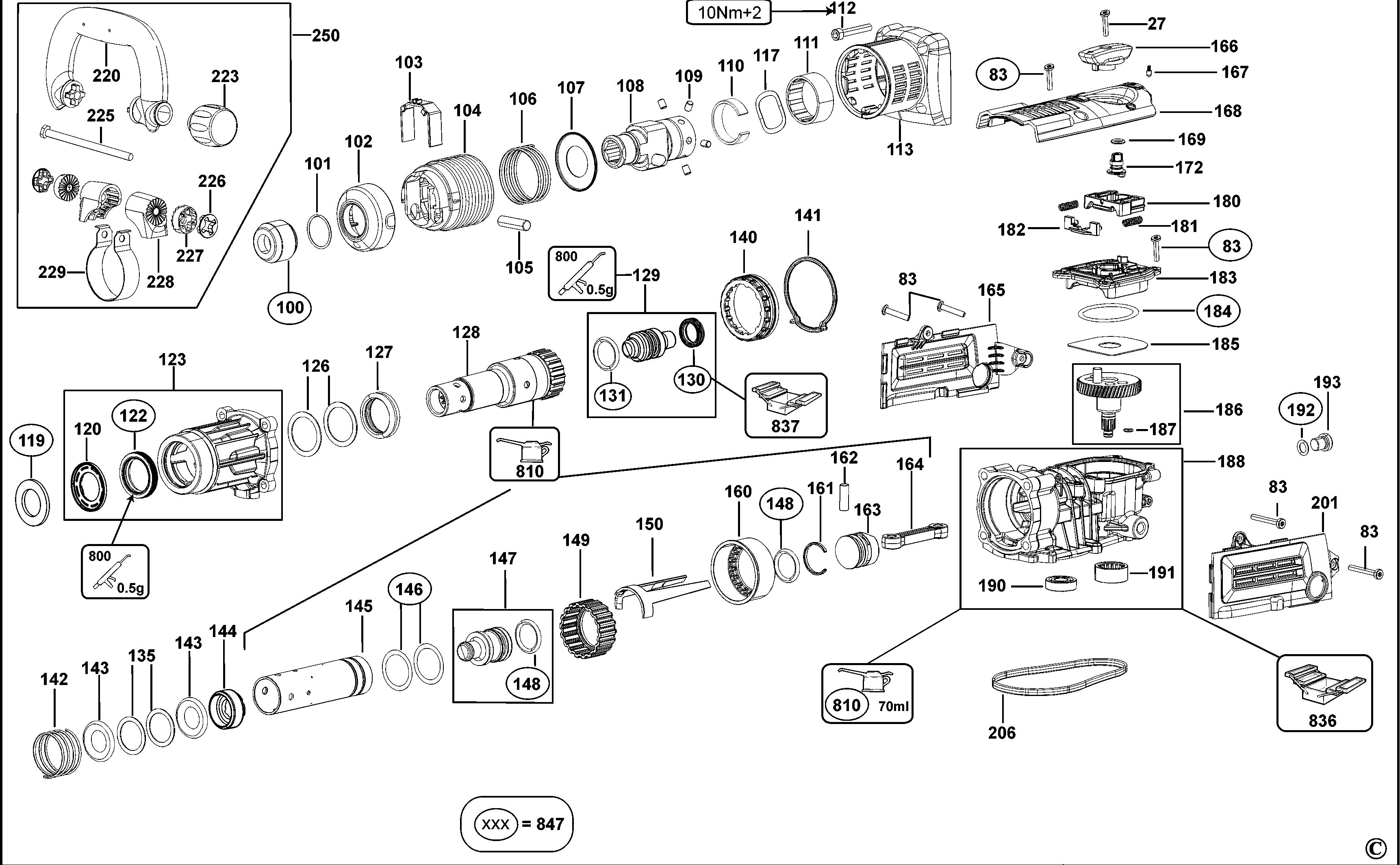

DEWALT ROTARY HAMMER (Type 3)
SKU Produs: D25851K /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N082756 | 1 | SA COMBIHSG CHIPPER (SERVICE) | 133,4 Lei | |
| 4 | 330003-39 | 1 | BEARING, BALL | 17,4 Lei | |
| 5 | 327141-03 | 1 | RING, SEALING 24 7 14 | 59,2 Lei | |
| 6 | 577746-00 | 1 | RING, EXPANSION | 6,4 Lei | |
| 9 | 330065-21 | 1 | SCREW, PLASTIC THREAD FORM M4*50 | 4,7 Lei | |
| 11 | 1007970-00 | 2 | TAB, DOUBLE | 5,3 Lei | |
| 20 | 330003-60 | 1 | BEARING BALL | 17,4 Lei | |
| 21 | 1007732-00 | 1 | COVER, BEARING | 4,7 Lei | |
| 22 | 1007798-00 | 1 | BRUSH BRIDGE (MOULD) | 31,6 Lei | |
| 26 | N016920 | 1 | FAN BAFFLE, STD FEAT | 20,4 Lei | |
| 27 | 330065-08 | 27 | SCREW M4X18 | 4,7 Lei | |
| 28 | 1006592-01 | 1 | SA FAN (WITH MAGNET) | 59,2 Lei | |
| 29 | 324119-02 | 1 | SCREW, M5 X 12 | 6,4 Lei | |
| 40 | 1006577-00 | 1 | END CAP - FULL-FEATD - 5KG (MOULD) | 34,8 Lei | |
| 41 | 1006576-02 | 1 | MOTOR COVER STD 5 KG (MOULD) | 42,9 Lei | |
| 49 | 1005672-00 | 1 | AP SCREW M5X60 | 7,5 Lei | |
| 50 | N532301 | 1 | MSH HANDLE PLATE OPP+(MOULD) | 53,4 Lei | |
| 60 | 1007569-00 | 1 | SPRING, ANTIVIB 5KG | 5,3 Lei | |
| 61 | 1007567-00 | 1 | SLIDING BUSH 5 KG | 7,5 Lei | |
| 62 | 1007566-00 | 1 | LIMIT STOP - 5KG | 31,6 Lei | |
| 63 | 1007565-00 | 1 | FOLD BELOW-UPPER, 5KG | 13 Lei | |
| 64 | 1006579-01 | 1 | HANDLE HOUSING - CHIPPER - 7-9KG (mould | 34,8 Lei | |
| 65 | 488065-01 | 1 | TRIGGER TOGGLE (MOULD) | 10,5 Lei | |
| 66 | N467531 | 1 | CGK-2116-023, PUSH BUTTON NON-MOMENTARY | 81,9 Lei | |
| 67 | 1006580-00 | 1 | SA HANDLE COVER 5KG OVERMOULD (MOULD) | 53,4 Lei | |
| 70 | N015311 | 1 | GROUND CONNECTOR | 5,3 Lei | |
| 71 | 326619-00 | 1 | SCREW, M4 X 8 DIN6900 | 4,7 Lei | |
| 76 | 326619-00 | 1 | SCREW, M4 X 8 DIN6900 | 4,7 Lei | |
| 80 | 1008678-00 | 1 | FOLD BELOW-LOWER, 5KG | 14,2 Lei | |
| 81 | N038214 | 2 | HANDLE BUSH (PURCH) | 4,7 Lei | |
| 82 | N062047 | 1 | PIN HANDLE | 5,3 Lei | |
| 83 | 324007-11 | 19 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 85 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 86 | 323091-01 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 88 | 1008391-00 | 1 | CORDSET COVER 5KG (MOULD) | 14,2 Lei | |
| 100 | N049332 | 1 | DUST CAP 5KG SPLINE | 20,4 Lei | |
| 101 | 487205-01 | 1 | SPLINE- SPANRING | 4,7 Lei | |
| 102 | 1008282-00 | 1 | SPLINE- BUSH FIXED | 22,4 Lei | |
| 103 | N021036 | 1 | SPLINE, CLIP | 8,8 Lei | |
| 104 | 1008281-00 | 1 | SPLINE- SLIDING TUBE (W/O STEEL RING) | 34,8 Lei | |
| 105 | 1008264-00 | 1 | SPLINE- CROSS BOLT 9.5x35 | 15,5 Lei | |
| 106 | 323395-06 | 1 | SPRING.CPRSN 2.2/47 | 4,7 Lei | |
| 107 | N313860 | 1 | GUIDE,CONICAL FLAT | 20,4 Lei | |
| 108 | N080645 | 1 | SA TOOLHOLDER NEW MSH (SERVICE) | 246 Lei | |
| 109 | 1008275-00 | 6 | ROLLER 6x8 (FROM ROLLER BEARING) | 4,7 Lei | |
| 110 | N058328 | 1 | RING CLIP | 10,5 Lei | |
| 111 | 1008280-00 | 1 | SPLINE- RING LOCKING | 7,5 Lei | |
| 112 | 918825-02 | 4 | SCREW, CYL M6 40 / 12..9 | 4,7 Lei | |
| 113 | 1006572-00 | 1 | FRONT COVER 5KG (MOULD) | 31,6 Lei | |
| 117 | N075956 | 1 | WAVE SPRING TOOLH. HEX | 22,4 Lei | |
| 119 | N038151 | 1 | FELT 31X52 | 7,5 Lei | |
| 120 | N045793 | 1 | BUSH FELT | 7,5 Lei | |
| 122 | 1007828-00 | 1 | SEAL SPINDLE 32X42X7/9 | 42,9 Lei | |
| 123 | N041835 | 1 | SA FRONT HOUSING 5KG (SERVICE) | 205,7 Lei | |
| 126 | 1005982-00 | 2 | WASHER DAMPER 5KG | 4,7 Lei | |
| 127 | 496191-00 | 1 | DAMPER SPINDLE 5KG | 8,8 Lei | |
| 128 | N080644 | 1 | SA SPINDLE NEW MSH (SERVICE) | 422,5 Lei | |
| 129 | N455684 | 1 | SERVICE BEAT PIECE 5KG | 199,6 Lei | |
| 130 | N244259 | 1 | BEATPIECE NMSH SEALING | 31,6 Lei | |
| 131 | 323711-10 | 1 | O RING 19 X 3.5 | 8,8 Lei | |
| 135 | N064329 | 2 | WASHER 18.5 | 4,7 Lei | |
| 140 | 494857-00 | 1 | RING, SPINDLE LOCK | 13 Lei | |
| 141 | 1006283-00 | 1 | GASKET, MAIN HOUSING/FROT HOUSING | 14,2 Lei | |
| 142 | 1005748-00 | 1 | SPRING 2X40.2 | 7,5 Lei | |
| 143 | N210233 | 2 | O-RING,16X6 HNBR 80 | 7,5 Lei | |
| 144 | 1006778-00 | 1 | BUSH, CYLINDER (USE EXISTING MSH) | 7,5 Lei | |
| 145 | N041846 | 1 | CYLINDER 31X35 (SERVICE) | 161,6 Lei | |
| 146 | 577744-00 | 2 | O RING, 26 X 2 HNBR | 13 Lei | |
| 147 | N041845 | 1 | RAM 5KG (SERVICE) | 161,6 Lei | |
| 148 | 576232-01 | 2 | O RING, FPM 23 X 4 | 22,4 Lei | |
| 149 | N041844 | 1 | SLEEVE SHIFTING 5KG (SERVICE) | 72 Lei | |
| 150 | 1005749-00 | 1 | FORK SHIFTING 5KG | 7,5 Lei | |
| 160 | N551764 | 1 | GEAR BEVEL 5KG (FORE) | 123,6 Lei | |
| 161 | 325905-00 | 1 | RING, PISTON D=25.6 | 7,5 Lei | |
| 162 | 330041-22 | 1 | NEEDLE, PIN 8 X 24 | 7,5 Lei | |
| 163 | N041843 | 1 | PISTON (SERVICE) | 90,6 Lei | |
| 164 | 494724-00 | 1 | CONNECT. ROD (DIFFERENT BORE DIA) | 20,4 Lei | |
| 165 | N557249 | 1 | SIDE COVER RIGHT PLASTIC YL (MOULD) | 31,6 Lei | |
| 166 | 1006786-00 | 1 | KNOB MODE CHANGE 5KG | 8,8 Lei | |
| 167 | 326467-00 | 1 | DETENT | 4,7 Lei | |
| 168 | 1006575-01 | 1 | TOP COVER - CHIPPING - 5KG (MOULD) | 42,9 Lei | |
| 169 | 323711-57 | 1 | O-RING 8X2.2 | 4,7 Lei | |
| 172 | 496856-00 | 1 | ECCENTRIC 5KG | 4,7 Lei | |
| 180 | 1006784-00 | 1 | SLIDER SPRING 5KG | 20,4 Lei | |
| 181 | 323395-32 | 2 | SPRING, PRESSURE | 4,7 Lei | |
| 182 | 1006783-00 | 1 | CONNECTOR 5KG | 4,7 Lei | |
| 183 | 496857-00 | 1 | COVER CRANK 5KG | 17,4 Lei | |
| 184 | 323711-59 | 1 | RING,O 65X3.5 | 4,7 Lei | |
| 185 | 1006785-00 | 1 | PLATE, CRANK | 8,8 Lei | |
| 186 | N041841 | 1 | SA CRANK SHAFT 5KG (SERVICE) | 283,3 Lei | |
| 187 | 323711-26 | 1 | O RING, 5X1.2 | 4,7 Lei | |
| 188 | N527066 | 1 | SA MAIN HSG 5KG TYPE 02 (SERVICE) | 443,3 Lei | |
| 190 | 577745-01 | 1 | BEARING, BALL 6001 | 31,6 Lei | |
| 191 | 586301-00 | 1 | BEARING, NEEDLE 22X30X13 | 22,4 Lei | |
| 192 | 323711-57 | 1 | O-RING 8X2.2 | 4,7 Lei | |
| 193 | 1008427-00 | 1 | PLUG, SCREW | 8,8 Lei | |
| 201 | N557248 | 1 | SIDE COVER LEFT PLASTIC YL (MOULD) | 31,6 Lei | |
| 206 | 1006282-00 | 1 | GASKET, MAIN HOUSING/GEAR HOUSING | 17,4 Lei | |
| 220 | 487277-00 | 1 | HANDLE, SIDE | 90,6 Lei | |
| 223 | 487291-00 | 1 | SA KNOB | 26,1 Lei | |
| 225 | 487343-00 | 1 | SCREW, M8X185 | 15,5 Lei | |
| 226 | 479319-00 | 2 | RUBBER, INSERT | 4,7 Lei | |
| 227 | 479317-00 | 2 | WASHER, LOCKING | 6,4 Lei | |
| 228 | N021994 | 1 | CLAMP WASHER | 15,5 Lei | |
| 229 | N021995 | 1 | CLAMP | 31,6 Lei | |
| 250 | N073104 | 1 | SA SIDE HANDLE CHIPPER (SERVICE) | 185,8 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 31,6 Lei | |
| 810 | N040237 | 1 | OIL BOTTLE 90ml | 109,5 Lei | |
| 816 | N064908 | 1 | LABEL BRAND NEW MSH | 4,7 Lei | |
| 836 | 1003938-99 | 1 | SERVICE TOOL | 365,3 Lei | |
| 837 | 559645-99 | 1 | SERVICE TOOL | 144,3 Lei | |
| 861 | 574931-23 | 1 | SA KITBOX MSH DEMO WITH HANDLE (SUBC) | 325,7 Lei |
