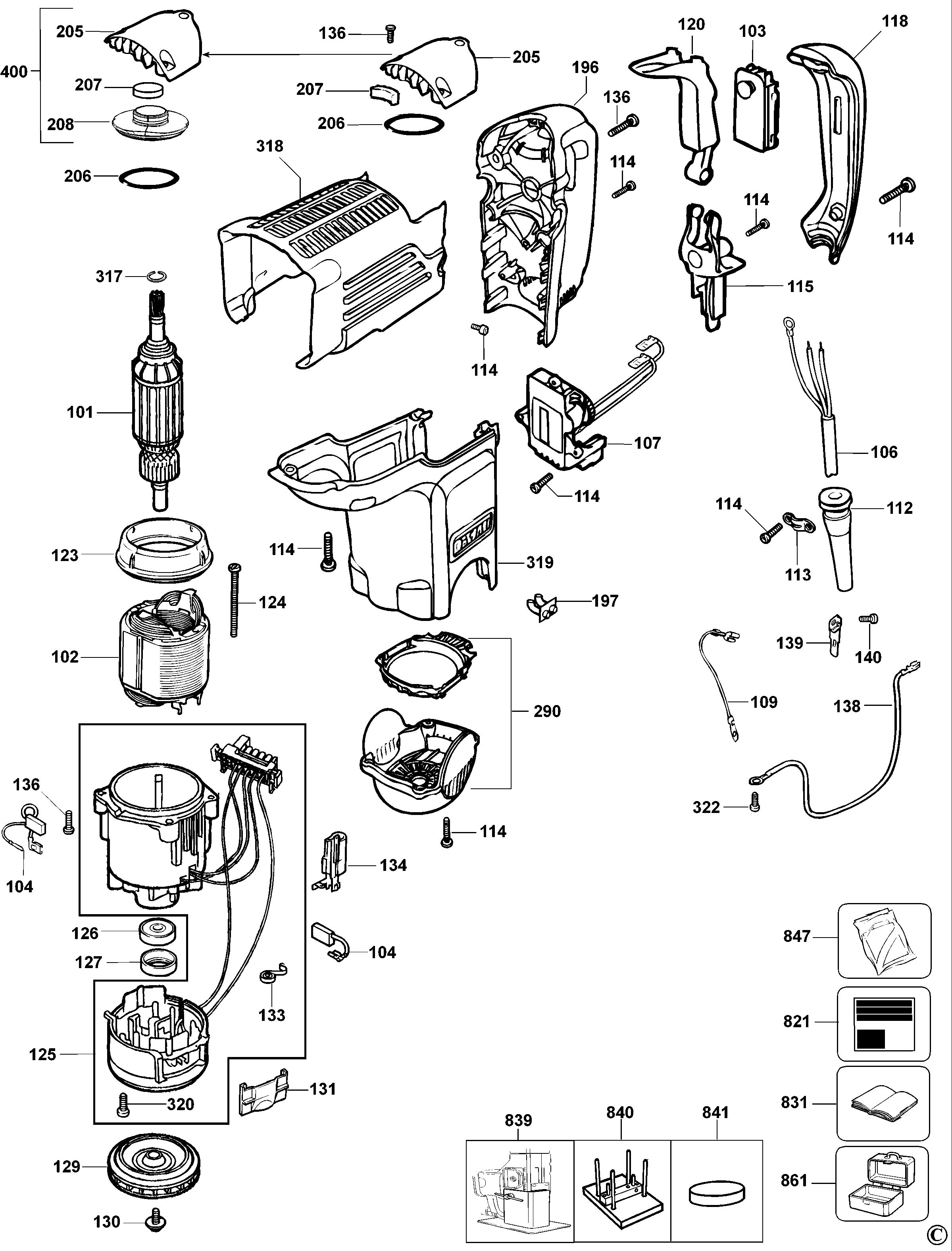

DEWALT CHIPPING HAMMER (Type 2)
SKU Produs: D25850K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 103 | 581070-00 | 1 | SWITCH, MSH | 81,9 Lei | |
| 112 | 323091-01 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 113 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 114 | 330065-08 | 18 | SCREW M4X18 | 4,7 Lei | |
| 124 | 330065-11 | 2 | SCREW, PLASTIC THREAD FORM 4.0*65 | 4,7 Lei | |
| 126 | 577745-00 | 1 | BEARING 6000 T1XDDW | 26,1 Lei | |
| 129 | 577736-00 | 1 | SA FAN | 56,4 Lei | |
| 130 | 324119-02 | 1 | SCREW, M5 X 12 | 6,4 Lei | |
| 131 | 326579-00 | 2 | COVER, BRUSH | 6,4 Lei | |
| 133 | 326667-00 | 2 | SPRING, SPIRAL | 6,4 Lei | |
| 134 | 326933-01 | 2 | SA CHOKE HOLDER | 14,8 Lei | |
| 136 | 324007-11 | 8 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 137 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 151 | 577745-01 | 1 | BEARING, BALL 6001 | 31,6 Lei | |
| 165 | 327141-05 | 1 | SEAL, RADIAL 12/28/6 | 26,1 Lei | |
| 167 | 918825-02 | 2 | SCREW, CYL M6 40 / 12..9 | 4,7 Lei | |
| 169 | 582431-00 | 1 | SA CRANKSHAFT, MSH ( SERVICE ) | 283,3 Lei | |
| 170 | 323711-26 | 1 | O RING, 5X1.2 | 4,7 Lei | |
| 171 | 325002-00 | 1 | CONNECTING ROD | 22,4 Lei | |
| 172 | N041843 | 1 | PISTON (SERVICE) | 90,6 Lei | |
| 173 | 330041-22 | 1 | NEEDLE, PIN 8 X 24 | 7,5 Lei | |
| 174 | 325905-00 | 1 | RING, PISTON D=25.6 | 7,5 Lei | |
| 175 | 576232-01 | 2 | O RING, FPM 23 X 4 | 22,4 Lei | |
| 177 | 577744-00 | 1 | O RING, 26 X 2 HNBR | 13 Lei | |
| 205 | 577710-01 | 1 | COVER, GEAR BLACK | 38,6 Lei | |
| 206 | 323711-22 | 1 | O RING, 56 X 3 | 4,7 Lei | |
| 207 | 487229-00 | 1 | FELT | 5,3 Lei | |
| 251 | 326555-00 | 1 | COLLET, BAND SDS | 26,1 Lei | |
| 252 | 326552-00 | 1 | THREAD, SLEEVE | 22,4 Lei | |
| 253 | N079374 | 1 | PIN SIDEHANDLE | 4,7 Lei | |
| 254 | 327146-00 | 1 | SIDE HANDLE, CHIPPING | 94,2 Lei | |
| 255 | 326553-00 | 1 | CLAMPING WHEEL | 34,8 Lei | |
| 256 | 327351-00 | 1 | SA KNOB, TURN | 51 Lei | |
| 257 | 326573-00 | 1 | SCREW, WING M6X24 BLACK | 4,7 Lei | |
| 258 | 326556-00 | 1 | NUT, SQUARE | 6,4 Lei | |
| 259 | 330021-01 | 1 | NUT, 6KT M6 ISO7040 | 17,4 Lei | |
| 261 | 323753-11 | 2 | WASHER.41X48X1.8 STEEL | 8,8 Lei | |
| 264 | 323395-07 | 1 | SPRING.CPRSN 2.2/44 | 5,3 Lei | |
| 266 | 577484-00 | 1 | SEAL, BEATPIECE, MSH | 161,6 Lei | |
| 267 | 582381-00 | 1 | WASHER, BEATPIECE | 26,1 Lei | |
| 268 | 577744-02 | 1 | O RING, 23 X 6 HNBR | 8,8 Lei | |
| 269 | 323753-16 | 1 | WASHER.18.5 STEEL | 8,8 Lei | |
| 270 | N210233 | 1 | O-RING,16X6 HNBR 80 | 7,5 Lei | |
| 271 | 326044-01 | 1 | BUSH 18.5 X 35 X 10.5 | 10,5 Lei | |
| 277 | 327141-00 | 1 | RING, SEALING 42 7 30 | 13 Lei | |
| 278 | 323711-15 | 1 | O RING, 43 X 2.5 | 4,7 Lei | |
| 281 | 588560-00 | 1 | BUSH, TOOTH | 16,6 Lei | |
| 285 | 577727-01 | 1 | HOUSING, FRONT SEAL | 13 Lei | |
| 290 | 578493-00 | 1 | SA ENDCAP | 42,9 Lei | |
| 317 | 577746-00 | 1 | RING, EXPANSION | 6,4 Lei | |
| 320 | 323924-08 | 2 | SCREW, PLASTIC 5X12 | 4,7 Lei | |
| 322 | 326619-00 | 1 | SCREW, M4 X 8 DIN6900 | 4,7 Lei | |
| 800 | 328771-02 | 1 | GREASE, 100 GM TUBE | 72 Lei | |
| 801 | 328771-07 | 1 | GREASE, THERMOPLEX 0.05KG TUBE | 31,6 Lei | |
| 839 | 559656-99 | 1 | SERVICE TOOL | 384,8 Lei | |
| 843 | 559645-99 | 1 | SERVICE TOOL | 144,3 Lei |
