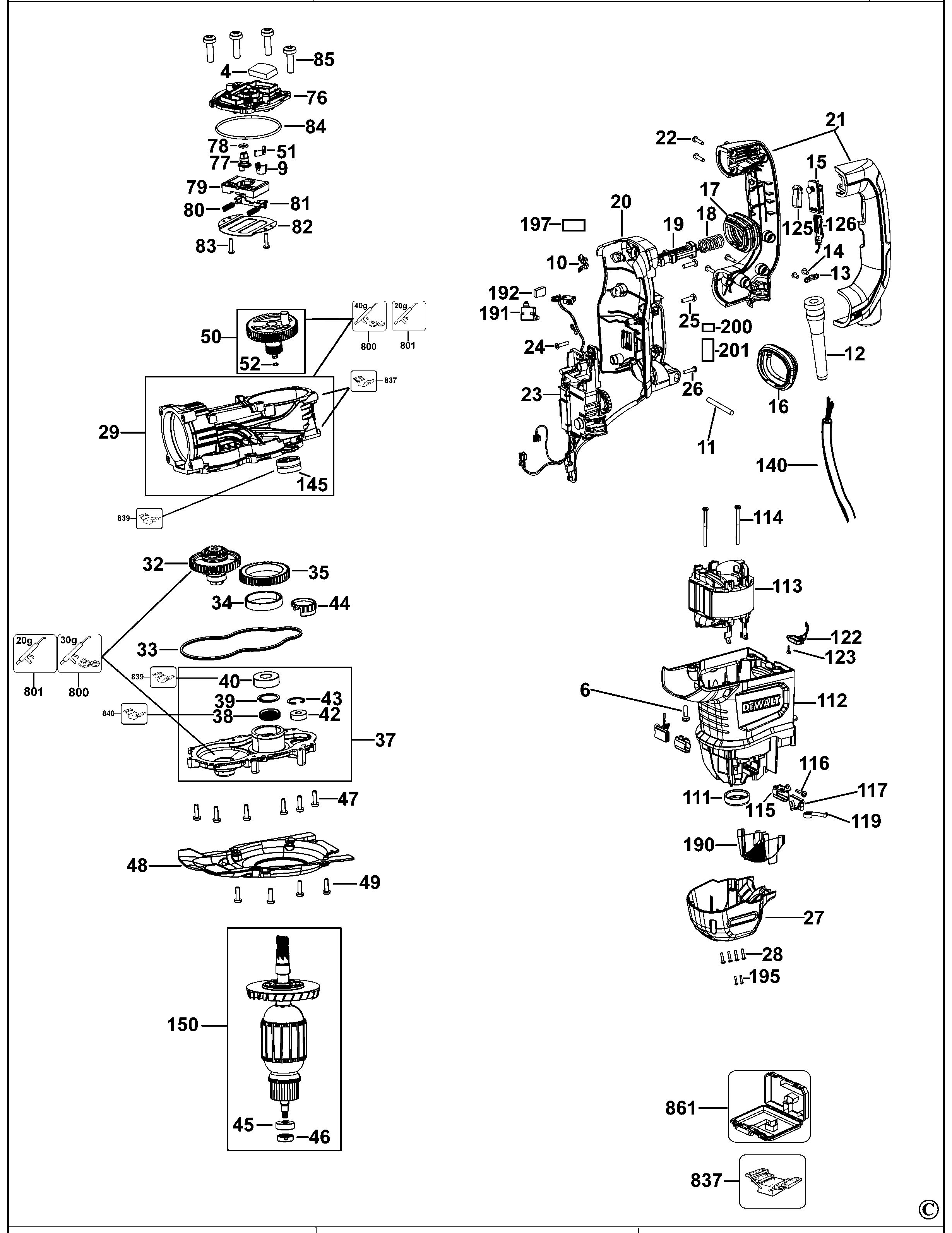

DEWALT ROTARY HAMMER (Type 1)
SKU Produs: D25773 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N513078 | 1 | SIDE LH | 19,95 Lei | |
| 3 | N513079 | 1 | SIDE RH | 21,85 Lei | |
| 4 | N481045 | 1 | FELT | 5,21 Lei | |
| 5 | N410169 | 1 | COVER-TOP | 21,85 Lei | |
| 6 | N548557 | 8 | SCREW | 4,57 Lei | |
| 7 | N463694 | 1 | SELECTOR | 7,37 Lei | |
| 8 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 9 | N607940 | 1 | CAP | 4,57 Lei | |
| 10 | N519469 | 1 | LENS | 4,57 Lei | |
| 11 | N453525 | 1 | PIN | 8,64 Lei | |
| 12 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 13 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 14 | 330065-04 | 2 | SCREW, PLASTIC 4 * 8 | 4,57 Lei | |
| 15 | N467530 | 1 | CGK-2116-024, PUSH BUTTON MOMENTARY | 80,04 Lei | |
| 16 | N453629 | 1 | BELLOWS | 12,71 Lei | |
| 17 | N453630 | 1 | BELLOWS | 10,29 Lei | |
| 18 | N501559 | 1 | SPRING | 4,57 Lei | |
| 19 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 20 | N410165 | 1 | PANEL.REAR | 41,93 Lei | |
| 21 | N580489 | 1 | CLAMSHELL SET | 80,04 Lei | |
| 22 | 330065-08 | 6 | SCREW M4X18 | 4,57 Lei | |
| 23 | N592362 | 1 | CONTROL MODULE SA | 570,96 Lei | |
| 24 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 25 | N548557 | 4 | SCREW | 4,57 Lei | |
| 26 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 27 | N389340 | 1 | END CAP | 34,05 Lei | |
| 28 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 29 | N580501 | 1 | HOUSING SA | 667,9 Lei | |
| 32 | N580503 | 1 | CLUTCH SA | 276,84 Lei | |
| 33 | N447147 | 1 | SEAL | 6,23 Lei | |
| 34 | N398520 | 1 | BEARING SINTER | 26,1 Lei | |
| 35 | N580506 | 1 | Gear | 41,93 Lei | |
| 37 | N580507 | 1 | GEARCASE COVER SA | 218,1 Lei | |
| 38 | N422626 | 1 | SEAL | 30,87 Lei | |
| 39 | 488147-01 | 1 | CIRCLIP, INTERNAL 28MM | 4,57 Lei | |
| 40 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 42 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 43 | N362699 | 1 | CIRCLIP | 4,57 Lei | |
| 44 | N537281 | 1 | SPACER | 6,23 Lei | |
| 45 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 46 | N466979 | 1 | MAGNET | 21,85 Lei | |
| 47 | N548557 | 6 | SCREW | 4,57 Lei | |
| 48 | N405298 | 1 | BAFFLE | 13,85 Lei | |
| 49 | N548557 | 4 | SCREW | 4,57 Lei | |
| 50 | N580511 | 1 | CRANKSHAFT | 240,38 Lei | |
| 51 | N520790 | 1 | DETENT | 4,57 Lei | |
| 52 | N537973 | 1 | O RING | 4,57 Lei | |
| 53 | N662675 | 1 | CON ROD | 52,22 Lei | |
| 54 | N431764 | 1 | PISTON | 52,22 Lei | |
| 55 | N026610 | 1 | PIN | 7,37 Lei | |
| 56 | N439990 | 1 | PISTON RING | 5,21 Lei | |
| 57 | 487296-00 | 1 | O RING, 33X3.5 | 19,95 Lei | |
| 58 | N857671 | 1 | CYLINDER SA | 1185,2 Lei | |
| 59 | N587667 | 3 | O RING | 4,57 Lei | |
| 60 | N580521 | 1 | RAM SA | 200,99 Lei | |
| 61 | 487296-00 | 1 | O RING, 33X3.5 | 19,95 Lei | |
| 62 | N400498 | 1 | BUSH | 7,37 Lei | |
| 63 | N389365 | 1 | O RING | 17,02 Lei | |
| 64 | N476023 | 1 | DAMPER | 80,04 Lei | |
| 65 | N515559 | 1 | DAMPER | 34,05 Lei | |
| 66 | N389693 | 1 | WASHER | 19,95 Lei | |
| 67 | N580522 | 1 | SPINDLE | 349,13 Lei | |
| 68 | N580524 | 1 | SPINDLE | 375,31 Lei | |
| 69 | N548304 | 5 | PIN | 5,21 Lei | |
| 70 | N475966 | 1 | RING | 15,12 Lei | |
| 71 | N514255 | 1 | DAMPER | 25,54 Lei | |
| 72 | N392234 | 2 | WASHER | 7,37 Lei | |
| 73 | N580525 | 1 | BEAT PIECE | 252,58 Lei | |
| 74 | N594490 | 1 | SEAL | 15,12 Lei | |
| 75 | N432561 | 1 | O RING | 8,64 Lei | |
| 76 | N409943 | 1 | COVER | 15,12 Lei | |
| 77 | N504016 | 1 | ECCENTRIC | 4,57 Lei | |
| 78 | N515556 | 1 | O RING | 7,37 Lei | |
| 79 | N410143 | 1 | SLIDER | 5,21 Lei | |
| 80 | N520791 | 2 | SPRING | 4,57 Lei | |
| 81 | N410898 | 1 | CONNECTOR | 4,57 Lei | |
| 82 | N427022 | 1 | PLATE | 7,37 Lei | |
| 83 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 84 | N455140 | 1 | O RING | 8,64 Lei | |
| 85 | N548557 | 4 | SCREW | 4,57 Lei | |
| 86 | N481044 | 1 | SLIDER | 12,71 Lei | |
| 87 | N580526 | 1 | BEVEL GEAR | 375,31 Lei | |
| 88 | N580533 | 1 | SLEEVE | 88,55 Lei | |
| 89 | N497938 | 1 | SPRING | 7,37 Lei | |
| 90 | N580535 | 1 | HOUSING FRONT | 331,47 Lei | |
| 93 | N392582 | 1 | SEAL | 30,87 Lei | |
| 94 | N181847 | 1 | SAFETY RING 55 | 6,23 Lei | |
| 95 | N416527 | 1 | COVER | 41,93 Lei | |
| 96 | N431324 | 1 | GASKET | 8,64 Lei | |
| 97 | N420195 | 1 | BUSH | 21,85 Lei | |
| 98 | 949886-32 | 4 | SCREW, M8X30 | 5,21 Lei | |
| 99 | N516486 | 1 | GUIDE | 17,02 Lei | |
| 100 | N520784 | 1 | SPRING | 4,57 Lei | |
| 101 | N520782 | 1 | SPRING | 7,37 Lei | |
| 102 | N408040 | 1 | SEAL | 21,85 Lei | |
| 103 | N511836 | 2 | LOCKING DEVICE | 37,73 Lei | |
| 104 | N511805 | 1 | DAMPER | 41,93 Lei | |
| 105 | N511834 | 1 | BUSH | 25,54 Lei | |
| 106 | N468816 | 1 | SLEEVE | 21,85 Lei | |
| 107 | NA176490 | 1 | RUBBER | 21,85 Lei | |
| 108 | N516487 | 1 | WASHER | 7,37 Lei | |
| 109 | N522784 | 1 | RETAINER | 4,57 Lei | |
| 110 | NA176495 | 1 | SEAL | 41,93 Lei | |
| 111 | N449094 | 1 | COVER BEARING | 4,57 Lei | |
| 112 | N580536 | 1 | HOUSING MOTOR | 106,98 Lei | |
| 113 | N580537 | 1 | FIELD 230V | 276,84 Lei | |
| 114 | 330019-30 | 2 | SCREW, PLASTIC THREAD FORM, M4 * 57 T20 | 4,57 Lei | |
| 115 | N425665 | 2 | BRUSH HOLDER SA | 8,64 Lei | |
| 116 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 117 | N580542 | 1 | BRUSH PAIR 230V | 80,04 Lei | |
| 119 | N523745 | 2 | BRUSH SPRING | 4,57 Lei | |
| 122 | N448156 | 1 | COIL | 52,22 Lei | |
| 123 | N086775 | 1 | SCREW | 4,57 Lei | |
| 125 | N640362 | 1 | TRIGGER | 5,21 Lei | |
| 126 | N518647 | 1 | SA LOCK ON MICROSWITCH | 173,3 Lei | |
| 130 | N412213 | 1 | HANDLE SIDE SA | 106,98 Lei | |
| 131 | N552104 | 1 | BOLT | 7,37 Lei | |
| 132 | N412984 | 1 | CLAMP | 37,73 Lei | |
| 133 | N413396 | 1 | WASHER | 4,57 Lei | |
| 134 | N411953 | 1 | CLAMP | 41,93 Lei | |
| 135 | N499183 | 1 | HANDLE SA | 57,81 Lei | |
| 136 | N580512 | 1 | PISTON SA | 157,92 Lei | |
| 140 | 1005752-00 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 145 | N408073 | 1 | BEARING,NEEDLE | 80,04 Lei | |
| 150 | N580509 | 1 | ARMATURE 230V | 412,91 Lei | |
| 165 | N578605 | 1 | FELT | 21,85 Lei | |
| 165 | N578641 | 1 | SA CONTROL MODULE COMPLETE- FENCING STAP | 800,3 Lei | |
| 190 | N602345 | 1 | COVER | 7,37 Lei | |
| 191 | N516505 | 1 | MODE CHANGE MICROSWITCH | 57,81 Lei | |
| 192 | 620051-00 | 1 | Pad DW831 | 4,57 Lei | |
| 195 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 197 | N551537 | 1 | LABEL | 4,57 Lei | |
| 200 | N551374 | 1 | LABEL | 4,57 Lei | |
| 201 | N551307 | 1 | RATING PLATE | 5,3 Lei | |
| 300 | N593930 | 1 | SERVICE KIT 230V | 213,19 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 837 | 1003971-99 | 1 | S.T.SEAL FITTING TOOL | 112,57 Lei | |
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | 172,53 Lei | |
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | 185,87 Lei | |
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | 69,75 Lei | |
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | 208,11 Lei | |
| 838 | 559651-99 | 1 | SERVICE TOOL | 1579,36 Lei | |
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | 70,89 Lei | |
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | 46,12 Lei | |
| 841 | 1003977-99 | 1 | S.T.PULLER | 91,73 Lei | |
| 861 | N508182 | 1 | KITBOX | 349,13 Lei |
